Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	$2.31	1
9J279A	LR126117	HOSE - FUEL	LR126117 HOSE - FUEL From Valve To Air Inlet Hose / From: KA000001 / To: MA443785	$93.87	1
9J279A	LR146142	HOSE - FUEL	LR146142 HOSE - FUEL From Valve To Air Inlet Hose / From: MA443786	$101.32	1
9J279B	LR126116	TUBE - FUEL VAPOUR	LR126116 TUBE - FUEL VAPOUR From Intercooler To Air Inlet Hose / From: KA000001 / To: KA567510	$55.08	1
9J279B	LR136859	TUBE - FUEL VAPOUR	LR136859 TUBE - FUEL VAPOUR From Intercooler To Air Inlet Hose / From: KA567511 / To: MA443785	$71.76	1
9J279B	LR146143	TUBE - FUEL VAPOUR	LR146143 TUBE - FUEL VAPOUR From Intercooler To Air Inlet Hose / From: MA443786	$85.46	1
9S284	LR122691	TUBE - FUEL VAPOUR	LR122691 TUBE - FUEL VAPOUR With Valve / From: KA000001 / To: MA438709	$183.57	1
9S284	LR156719	TUBE - FUEL VAPOUR	LR156719 TUBE - FUEL VAPOUR With Valve / From: MA438710	$160.62	1

Haven't found what you're looking for?

View Cart / Checkout

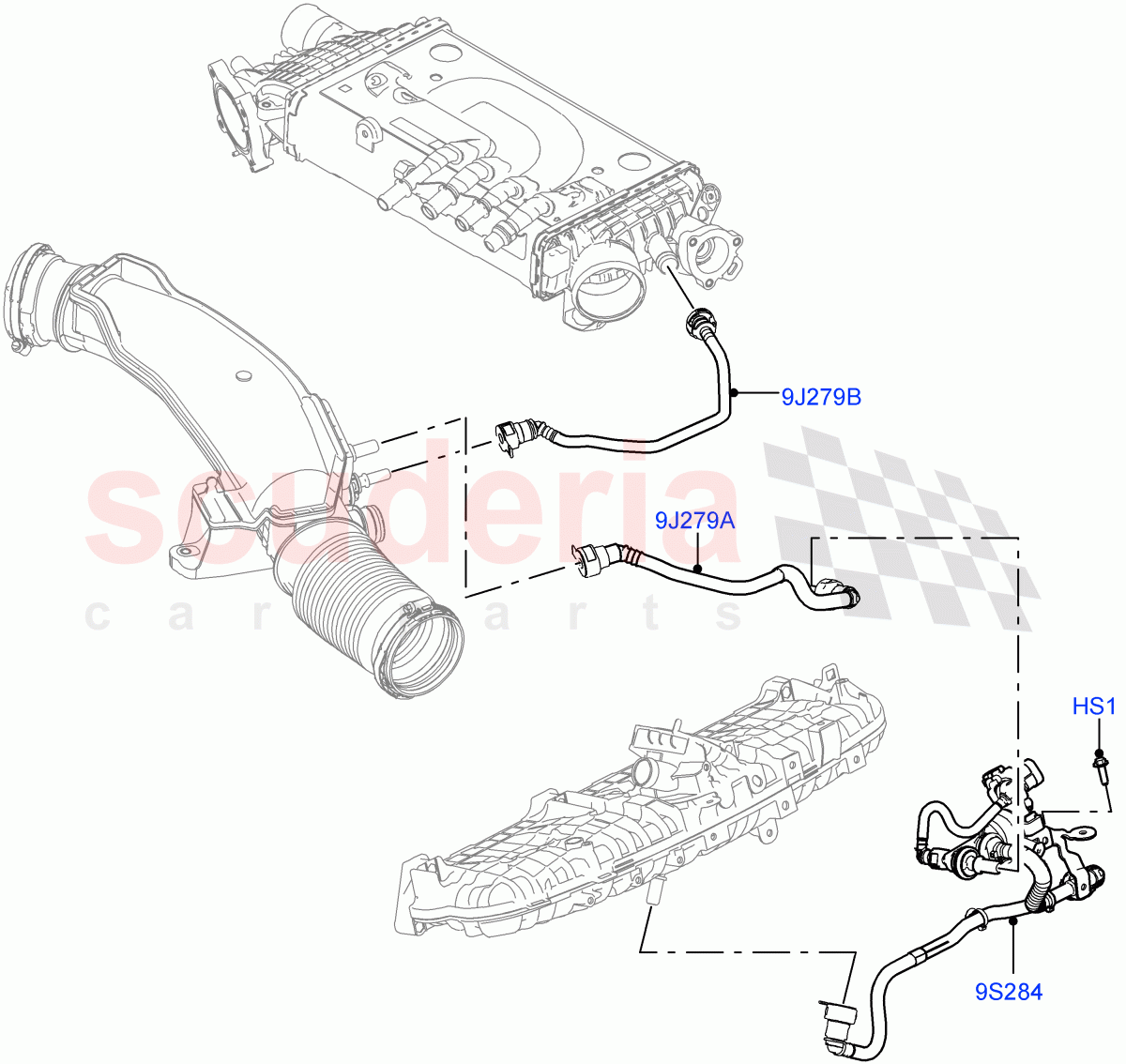

Evaporative Emission (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]
