Cooling System Pipes And Hoses (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
LR011038 PLUG - BLANKING $5.13 To Order
Photo Part No Description Price (each) Stock
LR066438 SCREW $3.07 To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR123076 HOSE - WATER $121.80 To Order
Photo Part No Description Price (each) Stock
104123735 HOSE - COOLANT BLEED $107.45 To Order
Photo Part No Description Price (each) Stock
LR123038 TUBE - HEATER WATER $187.97 To Order
LR140702 TUBE - HEATER WATER $241.59 To Order
LR155132 TUBE - HEATER WATER $245.56 To Order
Photo Part No Description Price (each) Stock
LR123724 HOSE - OIL COOLER $100.97 To Order
Photo Part No Description Price (each) Stock
LR123723 HOSE - OIL COOLER $100.97 To Order
LR133678 HOSE - OIL COOLER $93.50 To Order
LR144619 HOSE - OIL COOLER $100.97 To Order
Photo Part No Description Price (each) Stock
LR121395 BRACKET $26.66 To Order
LR144618 BRACKET $26.66 To Order
Photo Part No Description Price (each) Stock
LR123077 HOSE - COOLING SYSTEM $109.98 To Order
Photo Part No Description Price (each) Stock
LR123062 HOSE - RADIATOR $53.37 To Order
Photo Part No Description Price (each) Stock
LR123061 HOSE - WATER $56.18 To Order
Photo Part No Description Price (each) Stock
LR123063 HOSE - WATER $53.30 To Order
Photo Part No Description Price (each) Stock
LR123075 HOSE - RADIATOR $198.79 To Order
LR137873 HOSE - RADIATOR $180.50 To Order
Photo Part No Description Price (each) Stock
LR123058 HOSE - RADIATOR $51.34 To Order
LR139058 HOSE - RADIATOR $52.12 To Order
Photo Part No Description Price (each) Stock
LR123073 HOSE - RADIATOR $277.40 To Order
LR139054 HOSE - RADIATOR $159.50 To Order
Photo Part No Description Price (each) Stock
LR123722 HOSE - COOLING SYSTEM $133.48 To Order
LR133667 HOSE - COOLING SYSTEM $133.48 To Order
Photo Part No Description Price (each) Stock
LR123064 HOSE - RADIATOR $71.90 To Order
Photo Part No Description Price (each) Stock
LR123060 SEPARATOR - COOLANT DEGAS $114.63 To Order
Photo Part No Description Price (each) Stock
LR129397 VALVE - COOLANT FLOW CONTROL $137.62 To Order
Photo Part No Description Price (each) Stock
LR123079 HOSE - WATER $143.05 To Order
Photo Part No Description Price (each) Stock
LR123078 HOSE - WATER $52.09 To Order
LR123078 HOSE - WATER $52.09 To Order
LR123078 HOSE - WATER $52.09 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR123725 HOSE $74.44 To Order
View All

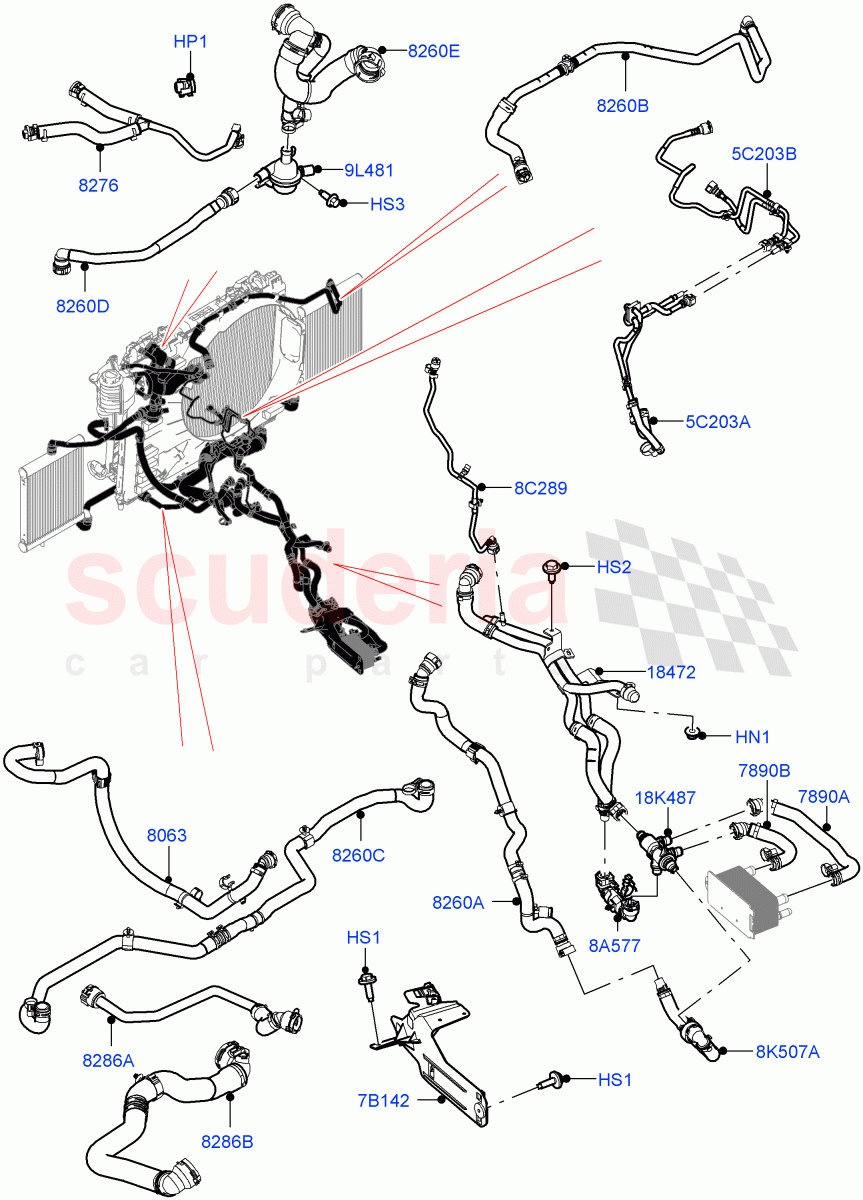

Cooling System Pipes And Hoses (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: KA000001
IN STOCK 		$0.60 1
HP1 LR011038
PLUG - BLANKING
Blanking, Expansion Tank, Please Order With LR128310 / From: KA000001 		$5.13 1
HS1 LR066438
SCREW
Bracket, Hexagonal Head, M6 X 20MM / From: KA000001 		$3.07 2
HS2 KYP500400
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: KA000001 		$0.61 1
HS3 RYG500160
SCREW
Hexagonal Head, M6 X 14MM / From: KA000001 		$0.63 1
5C203A LR123079
HOSE - WATER
LH, Engine Control Module (ECM) / From: KA000001 		$143.05 1
5C203B LR123078
HOSE - WATER
RH, Engine Control Module (ECM) / From: KA000001 / To: KA999999 		$52.09 1
5C203B LR123078
HOSE - WATER
RH, Engine Control Module (ECM) / From: LA567000 / To: LA599999 		$52.09 1
5C203B LR123078
HOSE - WATER
RH, Engine Control Module (ECM) / From: LA400000 / To: LA411251 		$52.09 1
5C203B LR137425
HOSE - WATER
RH, Engine Control Module (ECM) / From: LA411252 / To: LA566999 		$59.82 1
5C203B LR137425
HOSE - WATER
RH, Engine Control Module (ECM) / From: MA000001 		$59.82 1
7B142 LR121395
BRACKET
From: KA000001 / To: LA412867 		$26.66 1
7B142 LR144618
BRACKET
From: LA412868 		$26.66 1
8A577 LR123722
HOSE - COOLING SYSTEM
Valve To Low Temperature Radiator / From: KA000001 / To: KA567510 		$133.48 1
8A577 LR133667
HOSE - COOLING SYSTEM
Inlet Pipe / From: KA567511 		$133.48 1
8C289 LR123064
HOSE - RADIATOR
Engine Ventilation / From: KA000001 		$71.90 1
8K507A LR123725
HOSE
Lower, To Cylinder Head / From: KA000001 		$74.44 1
9L481 LR123060
SEPARATOR - COOLANT DEGAS
From: KA000001 		$114.63 1
18K487 LR129397
VALVE - COOLANT FLOW CONTROL
5 Way / From: KA000001 		$137.62 1
7890A LR123724
HOSE - OIL COOLER
Outlet pipe / From: KA000001 		$100.97 1
7890B LR123723
HOSE - OIL COOLER
Inlet Pipe / From: KA000001 / To: KA560351 		$100.97 1
7890B LR133678
HOSE - OIL COOLER
Inlet Pipe / From: KA560352 / To: LA412867 		$93.50 1
7890B LR144619
HOSE - OIL COOLER
Inlet Pipe / From: LA412868 		$100.97 1
8063 LR123076
HOSE - WATER
From Engine To Expansion Tank, Lower / From: KA000001 		$121.80 1
8260A LR123077
HOSE - COOLING SYSTEM
To Cylinder Head, Upper / From: KA000001 		$109.98 1
8260B LR123062
HOSE - RADIATOR
Auxiliary Radiator, Inlet / From: KA000001 		$53.37 1
8260C LR123061
HOSE - WATER
Connects Auxiliary Radiators / From: KA000001 		$56.18 1
8260D LR123063
HOSE - WATER
Auxiliary Radiator, Outlet / From: KA000001 		$53.30 1
8260E LR123075
HOSE - RADIATOR
Radiator, Top / From: KA000001 / To: LA591381 		$198.79 1
8260E LR137873
HOSE - RADIATOR
Radiator, Top / From: LA591382 		$180.50 1
8276 104123735
HOSE - COOLANT BLEED
From Engine To Expansion Tank, Please Order With LR011038 / From: KA000001 		$107.45 1
8286A LR123058
HOSE - RADIATOR
LH, Attaches To Bottom Of Radiator / From: KA000001 / To: LA596177 		$51.34 1
8286A LR139058
HOSE - RADIATOR
LH, Attaches To Bottom Of Radiator / From: LA596178 		$52.12 1
8286B LR123073
HOSE - RADIATOR
RH, Attaches To Bottom Of Radiator / From: KA000001 / To: LA596177 		$277.40 1
8286B LR139054
HOSE - RADIATOR
RH, Attaches To Bottom Of Radiator / From: LA596178 		$159.50 1
18472 LR123038
TUBE - HEATER WATER
From: KA000001 / To: MA421412 		$187.97 1
18472 LR140702
TUBE - HEATER WATER
5 Way / From: MA421413 / To: MA444008 		$241.59 1
18472 LR155132
TUBE - HEATER WATER
5 Way / From: MA444009 		$245.56 1
