Pulleys And Drive Belts (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Pulleys And Drive Belts (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR085468 BOLT $3.59 To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.56 IN STOCK
Photo Part No Description Price (each) Stock
FB108076 BOLT $0.62 To Order
Photo Part No Description Price (each) Stock
LR003574 BOLT $2.90 IN STOCK
Photo Part No Description Price (each) Stock
LR074131 PIN - RETAINING $3.11 To Order
Photo Part No Description Price (each) Stock
LR126156 DOWEL - PIN $5.01 To Order
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP $2.25 To Order
FS108186 SCREW - SOCKET HEAD CAP $2.25 To Order
Photo Part No Description Price (each) Stock
LR121747 PULLEY - CRANKSHAFT $297.48 To Order
Photo Part No Description Price (each) Stock
LR123071 PULLEY - WATER PUMP $92.51 To Order
Photo Part No Description Price (each) Stock
LR121783 PULLEY - FAN $80.04 To Order
Photo Part No Description Price (each) Stock
LR115468 TENSIONER $173.05 To Order
LR161768 TENSIONER $190.61 To Order
LR115468 TENSIONER $173.05 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR121784 IDLER - DRIVE BELT $80.81 To Order
LR146863 IDLER - DRIVE BELT $81.39 To Order
Photo Part No Description Price (each) Stock
LR123070 V-BELT $57.82 To Order
Photo Part No Description Price (each) Stock
LR121781 V-BELT $58.85 To Order
Photo Part No Description Price (each) Stock
LR121782 BRACKET $339.21 To Order
Photo Part No Description Price (each) Stock
LR123068 BRACKET $83.53 To Order
LR137459 BRACKET $83.53 To Order
View All

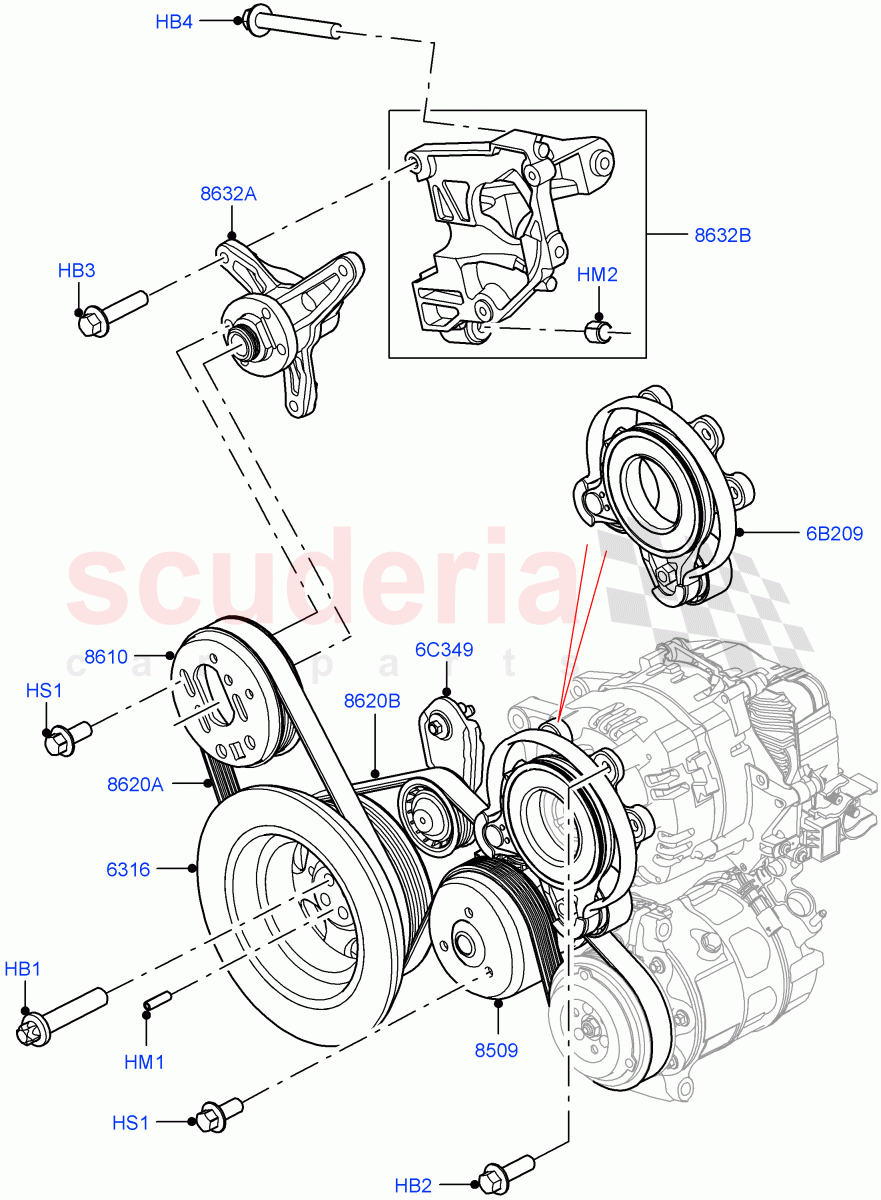

Pulleys And Drive Belts (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR085468
BOLT
M10 x 48MM / From: KA000001 		$3.59 4
HB2 FS108256
BOLT
Hexagonal Head, M8 X 25MM, Tensioner / From: KA000001
IN STOCK 		$3.56 3
HB3 FB108076
BOLT
M8 X 35MM / From: KA000001 		$0.62 3
HB4 LR003574
BOLT
Hexagonal Head, M8 x 60MM / From: KA000001
IN STOCK 		$2.90 4
HM1 LR074131
PIN - RETAINING 		$3.11 1
HM2 LR126156
DOWEL - PIN
Pin - Dowell / From: KA000001 		$5.01 2
HS1 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM, Pulley, Water Pump / From: KA000001 		$2.25 3
HS1 FS108186
SCREW - SOCKET HEAD CAP
Fan, M8 x 18MM, Pulley / From: KA000001 		$2.25 4
6B209 LR115468
TENSIONER
From: KA000001 / To: KA999999 		$173.05 1
6B209 LR161768
TENSIONER
From: LA406287 / To: LA499999 		$190.61 1
6B209 LR115468
TENSIONER
From: LA500000 / To: LA599999 		$173.05 1
6B209 LR115468
TENSIONER
From: LA400000 / To: LA406286 		$173.05 1
6B209 LR161768
TENSIONER
From: MA000001 / To: MA421960 		$190.61 1
6B209 LR147218
TENSIONER
From: MA421961 / To: MA447767 		$200.15 1
6B209 LR161768
TENSIONER
From: MA447768 		$190.61 1
6C349 LR121784
IDLER - DRIVE BELT
From: KA000001 / To: MA422174 		$80.81 1
6C349 LR146863
IDLER - DRIVE BELT
From: MA422175 		$81.39 1
6316 LR121747
PULLEY - CRANKSHAFT
From: KA000001 		$297.48 1
8509 LR123071
PULLEY - WATER PUMP
From: KA000001 		$92.51 1
8610 LR121783
PULLEY - FAN
Fan / From: KA000001 		$80.04 1
8620A LR123070
V-BELT
Fan / From: KA000001 		$57.82 1
8620B LR121781
V-BELT
Belt Integrated Starter Generator / From: KA000001 		$58.85 1
8632A LR121782
BRACKET
Fan, Pulley / From: KA000001 		$339.21 1
8632B LR123068
BRACKET
Bracket, Fan, To Engine / From: KA000001 / To: LA579678 		$83.53 1
8632B LR137459
BRACKET
Bracket, Fan, To Engine / From: LA579679 		$83.53 1
