Dash Panel And Front Fenders

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Dash Panel And Front Fenders

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500910 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
LR027624 BOLT $3.14 To Order
Photo Part No Description Price (each) Stock
RYG500850 BOLT AND WASHER - HEX.HEAD $0.93 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.13 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.97 IN STOCK
AYP500110 SCREW $0.97 IN STOCK
AYP500110 SCREW $0.97 IN STOCK
Photo Part No Description Price (each) Stock
LR036591 FENDER - FRONT $690.72 To Order
LR036592 FENDER - FRONT $690.72 To Order
LR061808 FENDER - FRONT $768.42 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036845 BRACKET - FENDER MOUNTING $23.07 To Order
LR036846 BRACKET - FENDER MOUNTING $23.07 To Order
Photo Part No Description Price (each) Stock
LR036596 BRACKET - FENDER MOUNTING $55.38 To Order
LR036597 BRACKET - FENDER MOUNTING $55.38 To Order
LR045798 BRACKET - FENDER MOUNTING $78.93 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR124567 BRACKET - FENDER MOUNTING $31.89 IN STOCK
LR033055 BRACKET - FENDER MOUNTING $32.37 To Order
Photo Part No Description Price (each) Stock
LR042980 INSULATOR - FENDER $22.17 To Order
LR042981 INSULATOR - FENDER $16.92 To Order
LR048228 INSULATOR - FENDER $20.79 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR042983 INSULATOR - FENDER $19.50 To Order
LR042982 INSULATOR - FENDER $19.81 To Order
LR048229 INSULATOR - FENDER $17.64 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115140 INSULATOR - HOOD $22.36 To Order
LR115141 INSULATOR - HOOD $22.36 To Order
LR115140 INSULATOR - HOOD $22.36 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AYF500050 SPACER - STRIKER $2.25 To Order
Photo Part No Description Price (each) Stock
LR033068 INSULATOR - FENDER APRON $33.44 To Order
Photo Part No Description Price (each) Stock
LR033069 INSULATOR - FENDER APRON $33.44 To Order
LR032909 INSULATOR - FENDER APRON $6.92 To Order
LR047360 INSULATOR - FENDER APRON $40.57 IN STOCK
Photo Part No Description Price (each) Stock
LR042692 INSULATOR - FENDER $15.44 To Order
Photo Part No Description Price (each) Stock
LR042695 INSULATOR - FOAM PAD $33.82 To Order
Photo Part No Description Price (each) Stock
LR042696 INSULATOR - FOAM PAD $47.03 To Order
LR054818 INSULATOR - FOAM PAD $41.24 To Order
LR070716 INSULATOR - FOAM PAD $38.30 To Order
View All

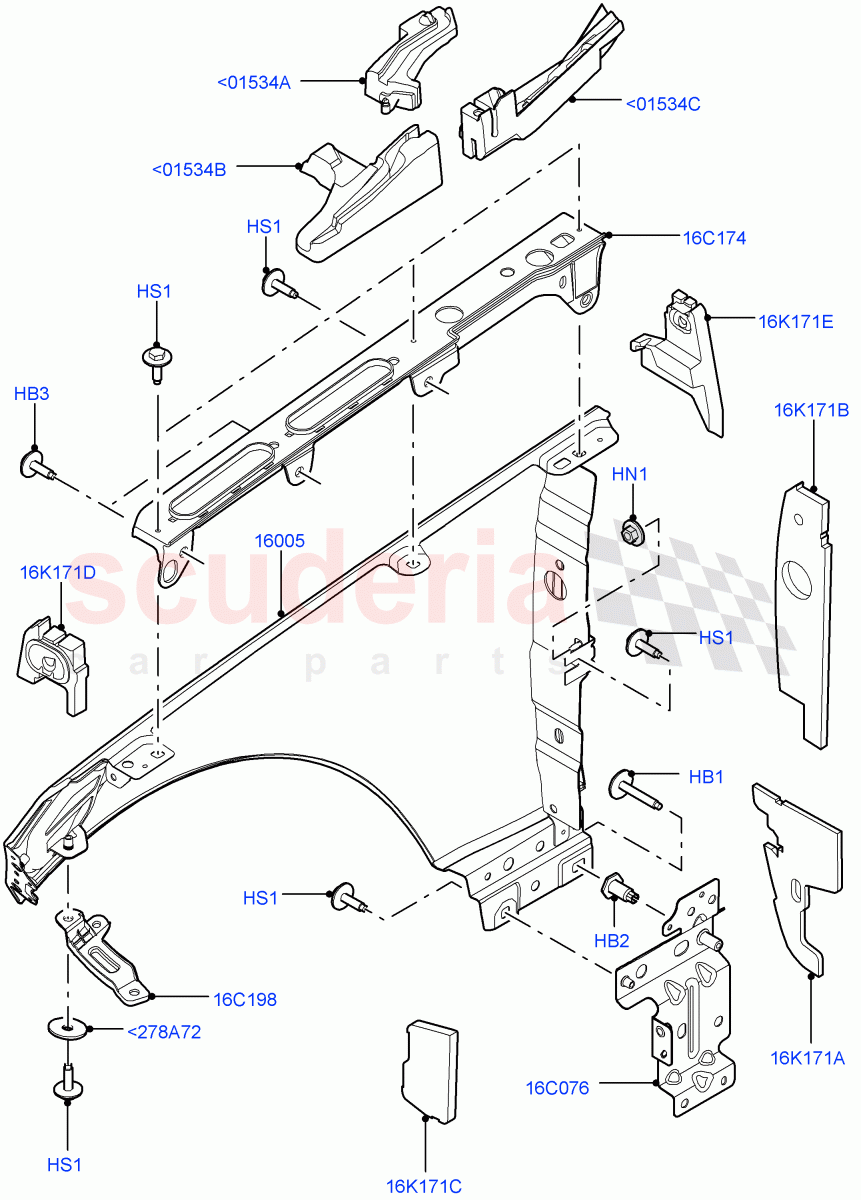

Dash Panel And Front Fenders of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<278A72 AYF500050
SPACER - STRIKER
Spacer 		$2.25 1
<01534A LR042980
INSULATOR - FENDER
LH / To: KA522256 		$22.17 1
<01534A LR042981
INSULATOR - FENDER
RH / To: EA131822 		$16.92 1
<01534A LR048228
INSULATOR - FENDER
RH / From: EA131823 / To: EA999999 		$20.79 1
<01534A LR064188
INSULATOR - FENDER
RH / From: FA000001 / To: KA523299 		$52.34 1
<01534A LR116024
INSULATOR - FENDER
RH / From: KA523300 		$25.39 1
<01534A LR116023
INSULATOR - FENDER
LH / From: KA522257 		$25.39 1
<01534B LR042983
INSULATOR - FENDER
LH / To: EA144123 		$19.50 1
<01534B LR042982
INSULATOR - FENDER
RH / To: DA115103 		$19.81 1
<01534B LR048229
INSULATOR - FENDER
RH / From: DA115104 / To: EA144123 		$17.64 1
<01534B LR052977
INSULATOR - FENDER
RH / From: EA144124 / To: FA212508 		$21.99 1
<01534B LR052978
INSULATOR - FENDER
LH / From: EA144124 / To: FA212508 		$19.81 1
<01534B LR079139
INSULATOR - FENDER
RH / From: FA212509 / To: GA282790 		$20.35 1
<01534B LR079140
INSULATOR - FENDER
LH / From: FA212509 / To: GA282790 		$19.10 1
<01534B LR084527
INSULATOR - FENDER
LH / From: GA282791
IN STOCK 		$20.99 1
<01534B LR084528
INSULATOR - FENDER
RH / From: GA282791 		$20.99 1
<01534C LR115140
INSULATOR - HOOD
RH / From: EA174809 / To: KA531826 		$22.36 1
<01534C LR115141
INSULATOR - HOOD
LH / From: EA174809 / To: KA531826 		$22.36 1
<01534C LR115140
INSULATOR - HOOD
RH / From: KA531827 		$22.36 1
<01534C LR115141
INSULATOR - HOOD
LH / From: KA531827 		$22.36 1
HB1 RYG500910
BOLT
Bolt And Washer, Fender, Hexagonal Head, M6 x 35MM 		$0.52 2
HB2 LR027624
BOLT
Bracket, Lower, M10 		$3.14 2
HB3 RYG500850
BOLT AND WASHER - HEX.HEAD
M6 X 20MM 		$0.93 4
HN1 RYH500310
NUT AND WASHER - HEX.
Fender, Hexagonal Head, M6, Nut And Washer
IN STOCK 		$3.13 2
HS1 AYP500110
SCREW
Bolt And Washer, Bracket, Hexagonal Head, M6 X 20MM, Upper
IN STOCK 		$0.97 14
HS1 AYP500110
SCREW
Bolt And Washer, Bracket, Hexagonal Head, M6 X 20MM, Middle - Front
IN STOCK 		$0.97 4
HS1 AYP500110
SCREW
Bolt And Washer, Fender, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.97 2
16C076 LR036845
BRACKET - FENDER MOUNTING
RH, Lower 		$23.07 1
16C076 LR036846
BRACKET - FENDER MOUNTING
LH, Lower 		$23.07 1
16C174 LR036596
BRACKET - FENDER MOUNTING
RH, Category B, Upper / To: DA103066 		$55.38 1
16C174 LR036597
BRACKET - FENDER MOUNTING
LH, Category B, Upper / To: DA103066 		$55.38 1
16C174 LR045798
BRACKET - FENDER MOUNTING
RH, Category B, Upper / From: DA103067 / To: EA153402 		$78.93 1
16C174 LR045799
BRACKET - FENDER MOUNTING
LH, Category B, Upper / From: DA103067 / To: EA153402 		$78.93 1
16C174 LR056963
BRACKET - FENDER MOUNTING
LH, Category B, Upper / From: EA153403 / To: HA999999 		$78.93 1
16C174 LR056962
BRACKET - FENDER MOUNTING
RH, Category B, Upper / From: EA153403 / To: HA999999 		$78.93 1
16C174 LR101961
BRACKET - FENDER MOUNTING
RH, Category B, Upper / From: JA000001 / To: KA550061 		$78.93 1
16C174 LR101962
BRACKET - FENDER MOUNTING
LH, Category B, Upper / From: JA000001 / To: KA550061 		$78.93 1
16C174 LR116260
BRACKET - FENDER MOUNTING
RH, Category B, Upper / From: KA550062 		$78.93 1
16C174 LR116261
BRACKET - FENDER MOUNTING
LH, Category B, Upper / From: KA550062 		$78.93 1
16C198 LR124567
BRACKET - FENDER MOUNTING
RH, Category B, Middle - Front
IN STOCK 		$31.89 1
16C198 LR033055
BRACKET - FENDER MOUNTING
LH, Category B, Middle - Front 		$32.37 1
16K171A LR033068
INSULATOR - FENDER APRON
RH/LH 		$33.44 2
16K171B LR033069
INSULATOR - FENDER APRON
LH 		$33.44 1
16K171B LR032909
INSULATOR - FENDER APRON
RH / To: DA107953 		$6.92 1
16K171B LR047360
INSULATOR - FENDER APRON
RH / From: DA107954
IN STOCK 		$40.57 1
16K171C LR042692
INSULATOR - FENDER
Front Fender, RH/LH 		$15.44 2
16K171D LR042695
INSULATOR - FOAM PAD
Front Fender, RH - Inner 		$33.82 1
16K171E LR042696
INSULATOR - FOAM PAD
Front Fender, LH - Inner / To: EA162500 		$47.03 1
16K171E LR054818
INSULATOR - FOAM PAD
Front Fender, LH - Inner / From: EA162501 / To: FA999999 		$41.24 1
16K171E LR070716
INSULATOR - FOAM PAD
Front Fender, LH - Inner / From: GA000001 		$38.30 1
16005 LR036591
FENDER - FRONT
RH, Category B / To: EA176767 		$690.72 1
16005 LR036592
FENDER - FRONT
LH, Category B / To: EA176767 		$690.72 1
16005 LR061808
FENDER - FRONT
RH, Category B / From: EA176768 		$768.42 1
16005 LR061809
FENDER - FRONT
LH, Category B / From: EA176768 		$768.42 1
