Oil Cooler And Filter (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Oil Cooler And Filter (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR170968 O-RING $4.57 IN STOCK
Photo Part No Description Price (each) Stock
LR073736 SCREW $1.71 To Order
Photo Part No Description Price (each) Stock
LR133455 FILTER - ENGINE OIL - ELEMENT $29.07 To Order
Photo Part No Description Price (each) Stock
LR133457 O-RING $18.01 To Order
Photo Part No Description Price (each) Stock
LR135718 SWITCH - OIL PRESSURE $61.21 To Order
Photo Part No Description Price (each) Stock
LR125344 OIL COOLER $437.50 To Order
LR172844 Oil Cooler $1,092.03 To Order
Photo Part No Description Price (each) Stock
LR133514 COVER - OIL FILTER $60.68 To Order
Photo Part No Description Price (each) Stock
LR132321 GASKET - OIL COOLER $52.80 To Order
View All

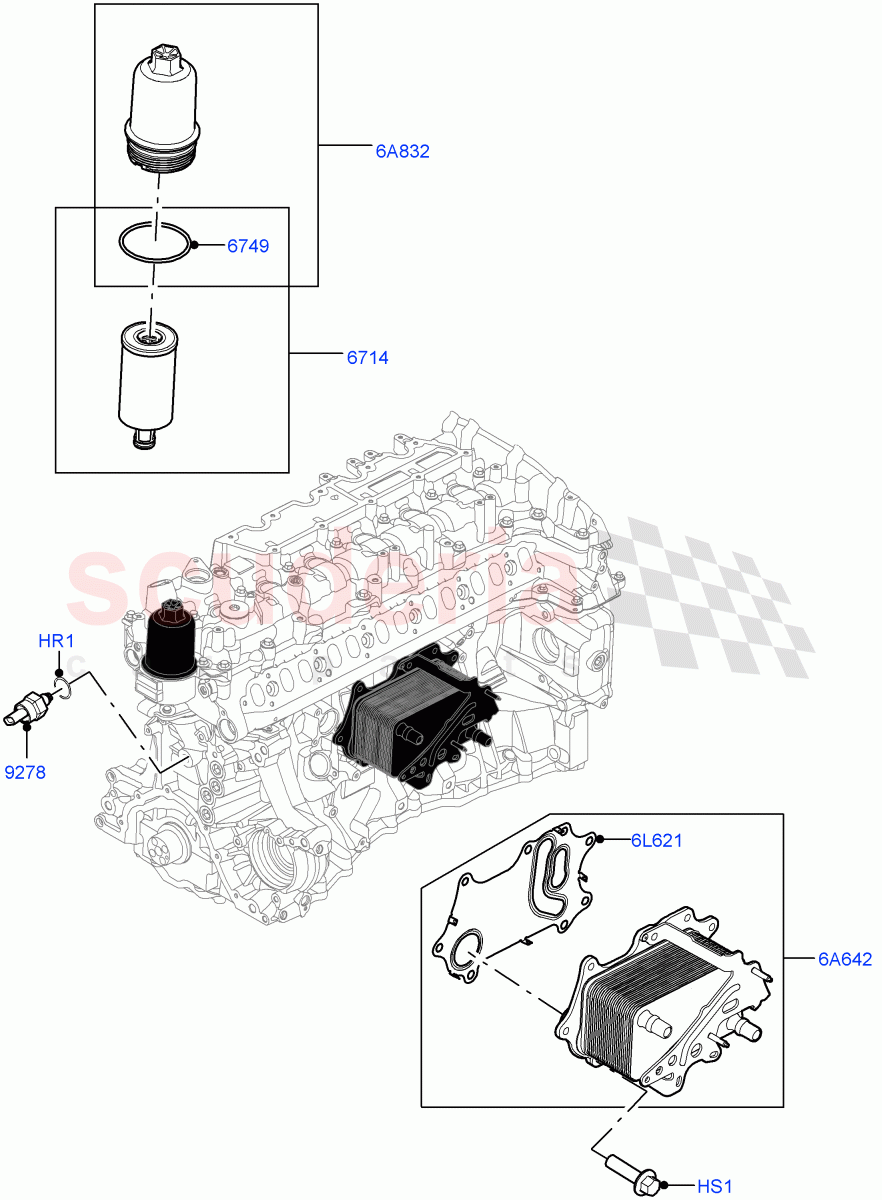

Oil Cooler And Filter (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR170968
O-RING
Sensor - Oil Pressure / From: LA000001
IN STOCK 		$4.57 1
HS1 LR073736
SCREW
M8 X 30MM / From: LA000001 		$1.71 8
6A642 LR125344
OIL COOLER
From: LA000001 / To: NA472638 		$437.50 1
6A642 LR172844
Oil Cooler
From: NA472639 		$1,092.03 1
6A832 LR133514
COVER - OIL FILTER
Element And Seal / From: LA000001 		$60.68 1
6L621 LR132321
GASKET - OIL COOLER
Oil Cooler / From: LA000001 		$52.80 1
6714 LR133455
FILTER - ENGINE OIL - ELEMENT
Element And Seal / From: LA000001 		$29.07 1
6749 LR133457
O-RING
Cover / From: LA000001 		$18.01 1
9278 LR135718
SWITCH - OIL PRESSURE
Sensor / From: LA000001 		$61.21 1
