Name: Side Steps And Tubes (Accessory, Power Deployable) ((V) FROMLA000001)
Rating: 4.8 (1 reviews)

Side Steps And Tubes (Accessory, Power Deployable) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Side Steps And Tubes (Accessory, Power Deployable) ((V) FROMLA000001)

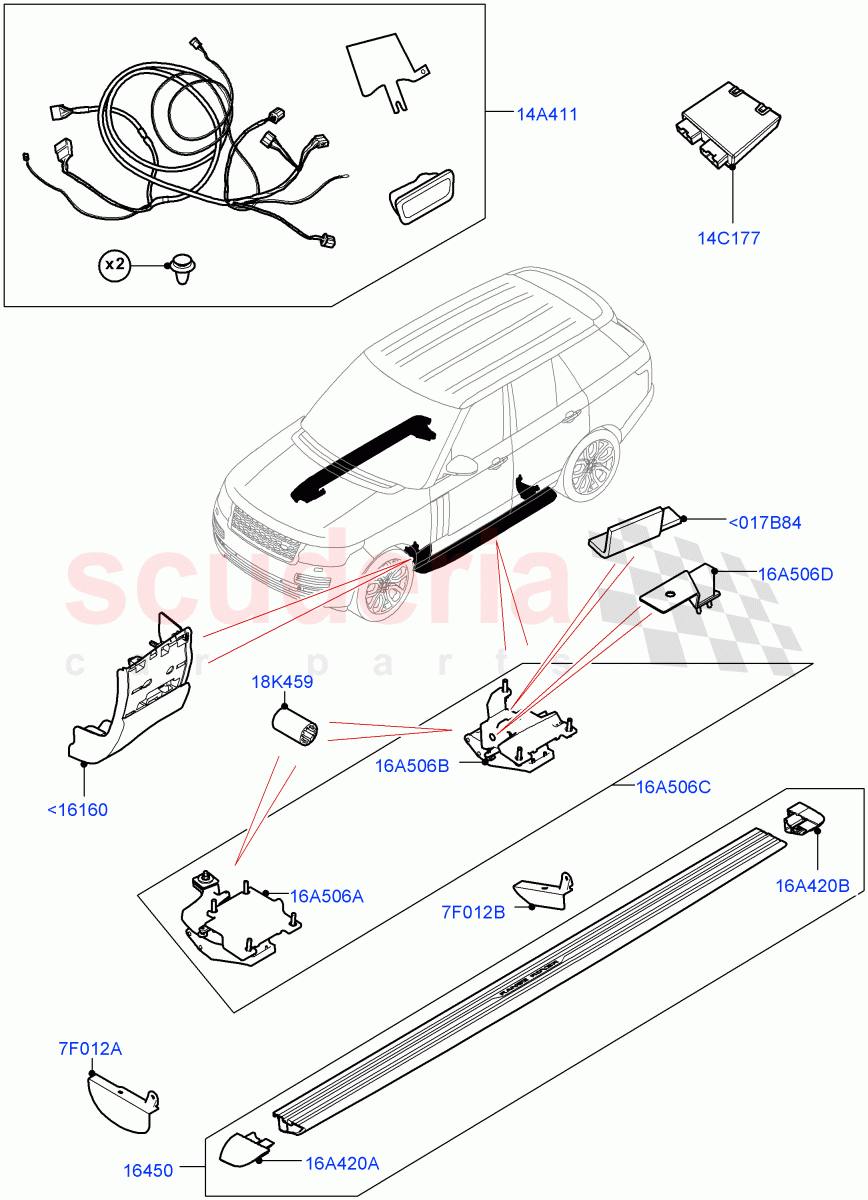

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	VPLGP0366	STEP - BODY SIDE	$623.07	To Order
	VPLGP0367	STEP - BODY SIDE + FIXINGS	$623.07	To Order
	VPLGP0365	STEP - BODY SIDE	$305.84	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	VPLGP0134	MOULDING - FENDER	$55.79	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLGP0441	HARNESS - SIDE STEP	$61.37	To Order
	VPLGP0442	HARNESS - SIDE STEP	$209.27	To Order
	VPLGP0440	HARNESS - SIDE STEP	$209.27	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	VPLGT0204	MODULE - BODY CONTROL	$522.37	To Order
	VPLWT0205	MODULE - BODY CONTROL	$522.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052713	SLEEVE - PROTECTIVE	$12.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VPLGP0145	SHIELD	$33.19	To Order
	VPLGP0147	SHIELD	$33.19	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLGP0146	SHIELD	$33.19	To Order
	VPLGP0148	SHIELD	$33.19	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLGP0338	INSULATOR	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLGP0143	END CAP	$31.89	To Order
	VPLGP0141	END CAP	$30.81	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLGP0144	END CAP	$31.89	To Order
	VPLGP0142	END CAP	$31.89	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLGP0139	BRACKET - SIDE STEP	$299.71	To Order
	VPLGP0137	BRACKET - SIDE STEP	$299.71	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLGP0140	BRACKET - SIDE STEP	$299.71	To Order
	VPLGP0138	BRACKET - SIDE STEP	$299.71	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLGP0420	DRIVE MOTOR	$320.45	To Order
	VPLGP0421	DRIVE MOTOR	$341.48	To Order
	VPLGP0249	FIXINGS - SIDE STEP	$802.94	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	VPLGP0455	BRACKET - SIDE STEP	$85.25	To Order
	VPLGP0454	BRACKET - SIDE STEP	$85.25	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B84	VPLGP0338	INSULATOR	VPLGP0338 INSULATOR Mounting Bracket, Required When Ordering Side Steps Or Tubes, RH Rear / From: LA000001	$1.78	1
<16160	VPLGP0134	MOULDING - FENDER	VPLGP0134 MOULDING - FENDER Compatible With Power Deployable Side Steps, Set Of 2 Pieces / From: LA000001	$55.79	1
7F012A	VPLGP0145	SHIELD	VPLGP0145 SHIELD Standard Wheelbase / LH, Front / From: LA000001	$33.19	1
7F012A	VPLGP0147	SHIELD	VPLGP0147 SHIELD Standard Wheelbase / RH, Front / From: LA000001	$33.19	1
7F012B	VPLGP0146	SHIELD	VPLGP0146 SHIELD Standard Wheelbase / LH, Rear / From: LA000001	$33.19	1
7F012B	VPLGP0148	SHIELD	VPLGP0148 SHIELD Standard Wheelbase / RH, Rear / From: LA000001	$33.19	1
14A411	VPLGP0441	HARNESS - SIDE STEP	VPLGP0441 HARNESS - SIDE STEP Long Wheelbase, With Diesel Fuel Capability / Module 14C177 To Be Ordered Separately / From: LA000001	$61.37	1
14A411	VPLGP0442	HARNESS - SIDE STEP	VPLGP0442 HARNESS - SIDE STEP Diesel/Electric - Hybrid, Standard Wheelbase / Module 14C177 To Be Ordered Separately / From: LA000001	$209.27	1
14A411	VPLGP0440	HARNESS - SIDE STEP	VPLGP0440 HARNESS - SIDE STEP Petrol/Electric Hybrid, Standard Wheelbase / Module 14C177 To Be Ordered Separately / From: LA000001	$209.27	1
14A411	VPLGP0439	HARNESS - SIDE STEP	VPLGP0439 HARNESS - SIDE STEP Long Wheelbase, Petrol/Electric Hybrid / From: LA000001	$209.27	1
14C177	VPLGT0204	MODULE - BODY CONTROL	VPLGT0204 MODULE - BODY CONTROL With Diesel Fuel Capability / Power Deployable / From: LA000001	$522.37	1
14C177	VPLWT0205	MODULE - BODY CONTROL	VPLWT0205 MODULE - BODY CONTROL Petrol/Electric Hybrid / Power Deployable / From: LA000001	$522.37	1
16A420A	VPLGP0143	END CAP	VPLGP0143 END CAP RH, Front / From: LA000001	$31.89	1
16A420A	VPLGP0141	END CAP	VPLGP0141 END CAP LH, Front / From: LA000001	$30.81	1
16A420B	VPLGP0144	END CAP	VPLGP0144 END CAP RH, Rear / From: LA000001	$31.89	1
16A420B	VPLGP0142	END CAP	VPLGP0142 END CAP LH, Rear / From: LA000001	$31.89	1
16A506A	VPLGP0139	BRACKET - SIDE STEP	VPLGP0139 BRACKET - SIDE STEP Standard Wheelbase / RH, Front / From: LA000001	$299.71	1
16A506A	VPLGP0137	BRACKET - SIDE STEP	VPLGP0137 BRACKET - SIDE STEP Standard Wheelbase / LH, Front / From: LA000001	$299.71	1
16A506B	VPLGP0140	BRACKET - SIDE STEP	VPLGP0140 BRACKET - SIDE STEP Standard Wheelbase / RH, Rear / From: LA000001	$299.71	1
16A506B	VPLGP0138	BRACKET - SIDE STEP	VPLGP0138 BRACKET - SIDE STEP Standard Wheelbase / LH, Rear / From: LA000001	$299.71	1
16A506C	VPLGP0420	DRIVE MOTOR	VPLGP0420 DRIVE MOTOR Less Electric Engine Battery, Long Wheelbase / RH, Includes Motor, Kit, Not Applicable For MHEV Vehicles / From: LA000001	$320.45	1
16A506C	VPLGP0421	DRIVE MOTOR	VPLGP0421 DRIVE MOTOR Less Electric Engine Battery, Long Wheelbase / LH, Includes Motor, Kit, Not Applicable For MHEV Vehicles / From: LA000001	$341.48	1
16A506C	VPLGP0249	FIXINGS - SIDE STEP	VPLGP0249 FIXINGS - SIDE STEP Standard Wheelbase / RH, Includes Motor, Kit / From: LA000001	$802.94	1
16A506C	VPLGP0248	FIXINGS - SIDE STEP IN STOCK	VPLGP0248 FIXINGS - SIDE STEP Standard Wheelbase / LH, Includes Motor, Kit / From: LA000001 IN STOCK	$802.94	1
16A506C	VPLGP0452	DRIVE MOTOR	VPLGP0452 DRIVE MOTOR Electric Engine Battery-MHEV, Long Wheelbase / RH, Includes Motor, Kit / From: LA000001	$252.32	1
16A506C	VPLGP0451	DRIVE MOTOR	VPLGP0451 DRIVE MOTOR Electric Engine Battery-MHEV, Long Wheelbase / LH, Includes Motor, Kit / From: LA000001	$250.47	1
16A506D	VPLGP0455	BRACKET - SIDE STEP	VPLGP0455 BRACKET - SIDE STEP Electric Engine Battery-MHEV, Long Wheelbase / RH, Rear / From: LA000001	$85.25	1
16A506D	VPLGP0454	BRACKET - SIDE STEP	VPLGP0454 BRACKET - SIDE STEP Electric Engine Battery-MHEV, Long Wheelbase / LH, Rear / From: LA000001	$85.25	1
18K459	LR052713	SLEEVE - PROTECTIVE IN STOCK	LR052713 SLEEVE - PROTECTIVE LH Side Only, IN STOCK	$12.53	1
16450	VPLGP0366	STEP - BODY SIDE	VPLGP0366 STEP - BODY SIDE Standard Wheelbase / RH, Cannot Be Fitted For SWB Vehicles With SVO Design Pack In UK, EU, India Or Russia / From: LA000001	$623.07	1
16450	VPLGP0367	STEP - BODY SIDE + FIXINGS	VPLGP0367 STEP - BODY SIDE + FIXINGS Standard Wheelbase / LH, Cannot Be Fitted For SWB Vehicles With SVO Design Pack In UK, EU, India Or Russia / From: LA000001	$623.07	1
16450	VPLGP0365	STEP - BODY SIDE	VPLGP0365 STEP - BODY SIDE Long Wheelbase / RH / From: LA000001	$305.84	1
16450	VPLGP0364	STEP - BODY SIDE	VPLGP0364 STEP - BODY SIDE Long Wheelbase / LH / From: LA000001	$302.85	1

Side Steps And Tubes (Accessory, Power Deployable) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Side Steps And Tubes (Accessory, Power Deployable) ((V) FROMLA000001)
