Transmission Cooling Systems (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans...

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Transmission Cooling Systems (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.67 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.44 IN STOCK
Photo Part No Description Price (each) Stock
LR049457 O-RING $3.27 To Order
LR049457 O-RING $3.27 To Order
Photo Part No Description Price (each) Stock
LR036354 OIL COOLER $244.37 To Order
Photo Part No Description Price (each) Stock
LR035553 TUBE - OIL COOLER $252.43 IN STOCK
LR062431 TUBE - OIL COOLER $209.49 To Order
LR128181 TUBE - OIL COOLER $203.76 To Order
...and 1 more part variants. See table on right for more details.
View All

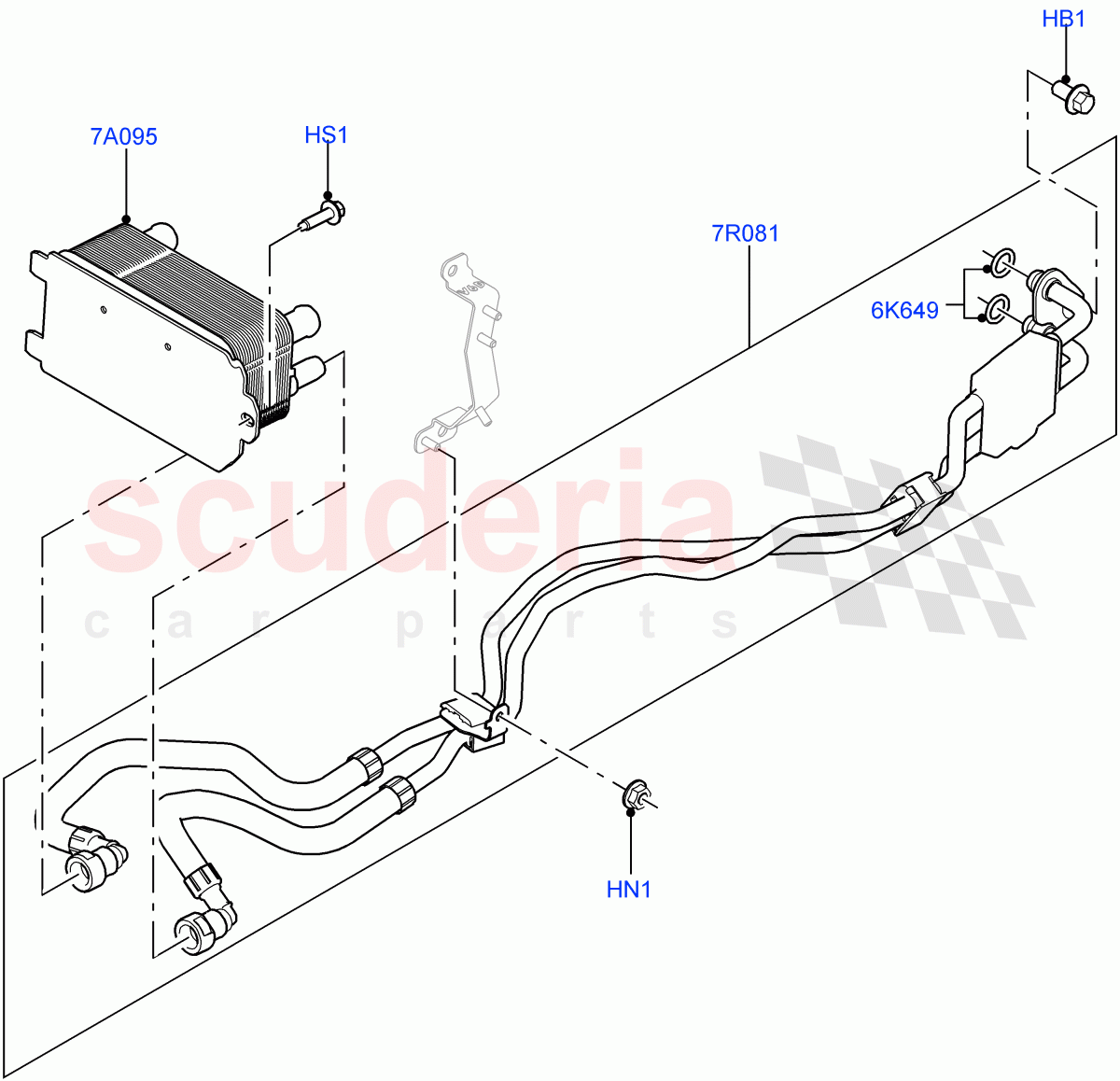

Transmission Cooling Systems (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo, 3.0L 24V DOHC V6 TC Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.67 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.45 1
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$3.44 1
6K649 LR049457
O-RING
Tube - Transmission Oil Cooler / To: DA115275 		$3.27 2
6K649 LR049457
O-RING 		$3.27 2
7A095 LR036354
OIL COOLER 		$244.37 1
7R081 LR035553
TUBE - OIL COOLER
3.0L 24V DOHC V6 TC Diesel
IN STOCK 		$252.43 1
7R081 LR062431
TUBE - OIL COOLER
3.0 V6 D Low MT ROW / From: FA000001 / To: KA556388 		$209.49 1
7R081 LR128181
TUBE - OIL COOLER
3.0 V6 D Low MT ROW / From: KA556389 / To: MA446757 		$203.76 1
7R081 LR144587
TUBE - OIL COOLER
3.0 V6 D Gen2 Twin Turbo / From: MA446758 		$231.06 1
