Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto...

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006708 BOLT $0.67 To Order
Photo Part No Description Price (each) Stock
LR049401 CLIP - DOUBLE $2.36 To Order
Photo Part No Description Price (each) Stock
LR049404 CLIP - SPECIAL $1.05 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
LR027995 NUT $1.01 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR011889 SCREW $3.99 To Order
Photo Part No Description Price (each) Stock
4648959 SCREW $4.24 To Order
Photo Part No Description Price (each) Stock
1331241 STUD $1.10 To Order
Photo Part No Description Price (each) Stock
LR013619 GASKET - VACUUM PUMP $47.83 To Order
LR096060 GASKET - VACUUM PUMP $14.73 IN STOCK
Photo Part No Description Price (each) Stock
LR031127 TUBE - BREATHER $4.55 To Order
Photo Part No Description Price (each) Stock
LR048852 TUBE - BREATHER $42.86 To Order
Photo Part No Description Price (each) Stock
LR044962 PUMP - VACUUM $421.32 To Order
LR077839 PUMP - VACUUM $454.15 To Order
Photo Part No Description Price (each) Stock
LR048845 PUMP - VACUUM $499.54 To Order
Photo Part No Description Price (each) Stock
LR048850 HOSE - VACUUM $132.77 To Order
Photo Part No Description Price (each) Stock
LR048851 HOSE - VACUUM $80.86 To Order
Photo Part No Description Price (each) Stock
LR075844 HOSE - VACUUM $27.32 To Order
View All

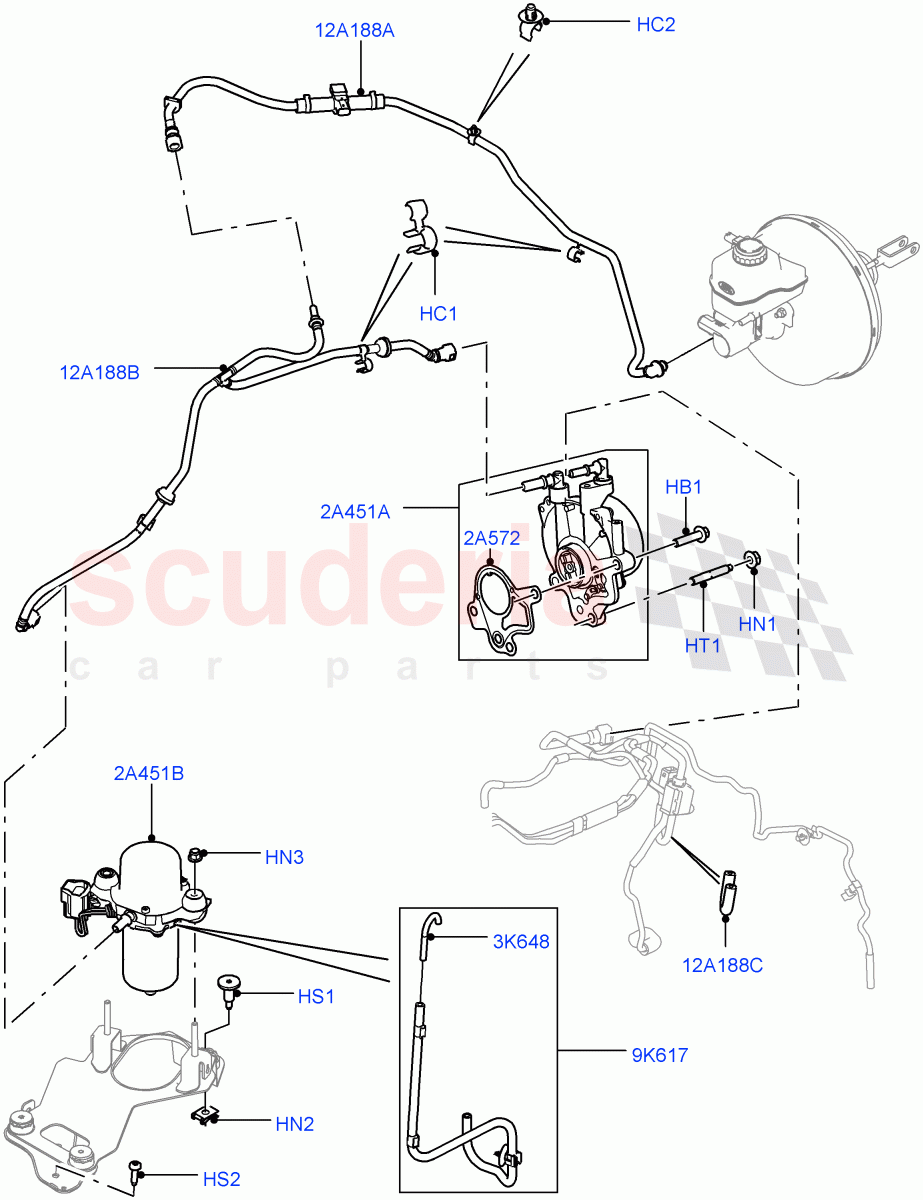

Vacuum Control And Air Injection (Vacuum Pump And Hoses) (3.0 V6 D Gen2 Mono Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, LHD, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMFA000001, (V) TOGA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006708
BOLT
M8 x 55MM, Pump - Vacuum / From: EA000001 		$0.67 2
HC1 LR049401
CLIP - DOUBLE
Double, To Vacuum Hose / From: EA000001 		$2.36 3
HC2 LR049404
CLIP - SPECIAL
Single, To Vacuum Hose / From: EA000001 		$1.05 1
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: EA000001 		$1.97 1
HN2 LR027995
NUT
M6 X 0.7 - 4, Nut "U" Spring / From: EA000001
IN STOCK 		$1.01 3
HN3 FY106046
NUT - HEX.
Auxiliary, Hexagonal Head, M6, Pump - Vacuum / From: EA000001
IN STOCK 		$0.68 2
HS1 LR011889
SCREW
Bracket, M6 x 29MM, Torx / From: EA000001 		$3.99 3
HS2 4648959
SCREW
Bracket, M6 X 20MM, Torx / From: EA000001 		$4.24 2
HT1 1331241
STUD
M8 X 15 + M8 X 35 / From: EA000001 		$1.10 1
2A451A LR044962
PUMP - VACUUM
Main / From: EA000001 / To: GA243971 		$421.32 1
2A451A LR077839
PUMP - VACUUM
Main / From: GA243972 		$454.15 1
2A451B LR048845
PUMP - VACUUM
Auxiliary / From: EA000001 		$499.54 1
2A572 LR013619
GASKET - VACUUM PUMP
From: EA000001 / To: FA999999 		$47.83 1
2A572 LR096060
GASKET - VACUUM PUMP
From: GA000001
IN STOCK 		$14.73 1
3K648 LR031127
TUBE - BREATHER
Top / From: EA000001 		$4.55 1
9K617 LR048852
TUBE - BREATHER
Complete / From: EA000001 		$42.86 1
12A188A LR048850
HOSE - VACUUM
Includes Vacuum Sensor, To Brake Booster / From: EA000001 		$132.77 1
12A188B LR048851
HOSE - VACUUM
To Vacuum Pump / From: EA000001 		$80.86 1
12A188C LR075844
HOSE - VACUUM
U-Type 		$27.32 1
