Name: Console - Floor (Internal Components, Rear, For Carrier Assy) (With 40/40 Split Individual Rr Seat, Individual 2nd Row Seats SV)
Rating: 5.0 (1 reviews)

Console - Floor (Internal Components, Rear, For Carrier Assy) (With 40/40 Split Individual Rr Seat, Individual 2nd Row Seats SV) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Console - Floor (Internal Components, Rear, For Carrier Assy) (With 40/40 Split Individual Rr Seat,...

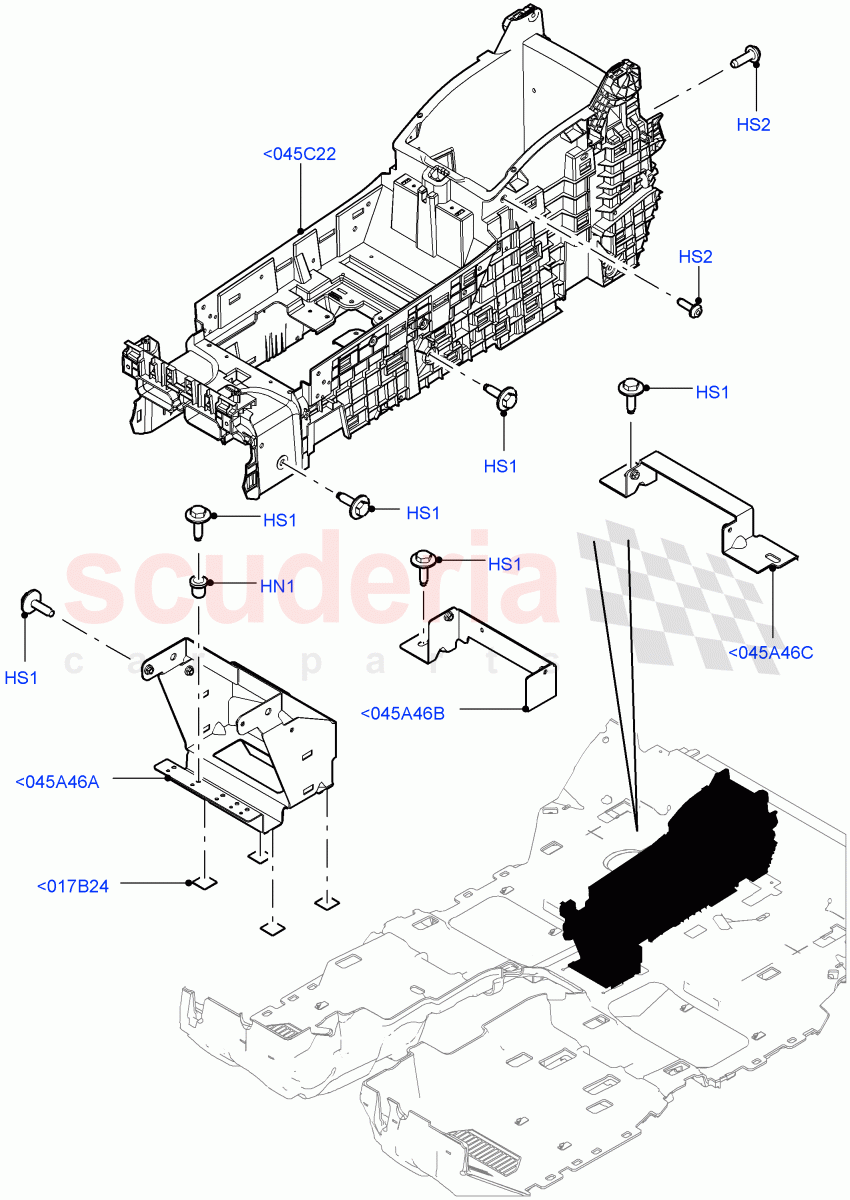

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR068826	NUT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.96	IN STOCK
	AYP500110	SCREW	$0.96	IN STOCK
	AYP500110	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR008793	SCREW	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	AZB000020	SEAL - FLOOR - BLANKING	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038537	CONSOLE - REAR SEAT	$1,796.83	To Order
	LR038100	CONSOLE - REAR SEAT	$1,796.83	To Order
	LR048780	CONSOLE - REAR SEAT	$1,437.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038103	BRACKET - CONSOLE	$135.31	To Order
	LR053347	BRACKET - CONSOLE	$264.98	To Order
	LR038103	BRACKET - CONSOLE	$135.31	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038102	BRACKET - CONSOLE	$58.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038101	BRACKET - CONSOLE	$58.46	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<017B24	AZB000020	SEAL - FLOOR - BLANKING	AZB000020 SEAL - FLOOR - BLANKING Blanking, Floor	$1.10	4
<045A46A	LR038103	BRACKET - CONSOLE	LR038103 BRACKET - CONSOLE Standard Wheelbase / Front / To: GA999999	$135.31	1
<045A46A	LR053347	BRACKET - CONSOLE	LR053347 BRACKET - CONSOLE Long Wheelbase / Front / From: EA152921 / To: GA999999	$264.98	1
<045A46A	LR038103	BRACKET - CONSOLE	LR038103 BRACKET - CONSOLE Standard Wheelbase / Front / From: HA000001	$135.31	1
<045A46A	LR053347	BRACKET - CONSOLE	LR053347 BRACKET - CONSOLE Long Wheelbase / Front / From: HA000001	$264.98	1
<045A46B	LR038102	BRACKET - CONSOLE	LR038102 BRACKET - CONSOLE Centre	$58.46	1
<045A46C	LR038101	BRACKET - CONSOLE	LR038101 BRACKET - CONSOLE Rear	$58.46	1
<045C22	LR038537	CONSOLE - REAR SEAT	LR038537 CONSOLE - REAR SEAT Less Cool Box / To: DA117156	$1,796.83	1
<045C22	LR038100	CONSOLE - REAR SEAT	LR038100 CONSOLE - REAR SEAT With Cool Box	$1,796.83	1
<045C22	LR048780	CONSOLE - REAR SEAT	LR048780 CONSOLE - REAR SEAT Less Cool Box / From: DA117157	$1,437.14	1
HN1	LR068826	NUT IN STOCK	LR068826 NUT M6 x 15MM, Rivet IN STOCK	$0.68	6
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Bracket To Floor, Front, Hexagonal Head, M6 X 20MM IN STOCK	$0.96	4
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Bracket To Floor, Centre, Hexagonal Head, M6 X 20MM IN STOCK	$0.96	1
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Bracket To Floor, Hexagonal Head, M6 X 20MM, Rear IN STOCK	$0.96	2
HS2	LR008793	SCREW	LR008793 SCREW Console, M5 X 16MM, Torx	$0.99	4
