Front Brake Pipes (2.0L Aj200P Hi Phev, Lhd) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Front Brake Pipes (2.0L AJ200P Hi PHEV, LHD) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR033441 CLIP - SPECIAL $4.46 To Order
Photo Part No Description Price (each) Stock
LR033442 CLIP - SPECIAL $5.67 To Order
Photo Part No Description Price (each) Stock
LR033443 CLIP - SPECIAL $32.84 To Order
Photo Part No Description Price (each) Stock
LR033450 CLIP - SPECIAL $23.58 To Order
Photo Part No Description Price (each) Stock
LR137522 CLIP $3.97 To Order
Photo Part No Description Price (each) Stock
LR047052 CONNECTOR - PIPE $143.30 To Order
Photo Part No Description Price (each) Stock
LR113969 HOSE - BRAKE $97.52 To Order
LR113969 HOSE - BRAKE $97.52 To Order
Photo Part No Description Price (each) Stock
LR081602 HOSE - BRAKE $137.13 To Order
LR113970 HOSE - BRAKE $137.13 To Order
Photo Part No Description Price (each) Stock
LR100710 PIPE - BRAKE $373.03 To Order
Photo Part No Description Price (each) Stock
LR100728 PIPE - BRAKE $382.42 To Order
Photo Part No Description Price (each) Stock
LR033371 TUBE - BRAKE $21.95 To Order
LR155147 TUBE - BRAKE $85.59 To Order
Photo Part No Description Price (each) Stock
LR033386 TUBE - BRAKE $124.93 To Order
Photo Part No Description Price (each) Stock
LR100769 TUBE - BRAKE $173.19 To Order
LR117562 TUBE - BRAKE $169.81 To Order
LR154813 TUBE - BRAKE $749.98 To Order
Photo Part No Description Price (each) Stock
LR033452 NUT - CONNECTING $10.78 To Order
Photo Part No Description Price (each) Stock
LR033453 NUT - CONNECTING $9.67 To Order
Photo Part No Description Price (each) Stock
LR033454 NUT - CONNECTING $21.74 IN STOCK
Photo Part No Description Price (each) Stock
LR033455 NUTS $20.82 IN STOCK
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE $2.46 IN STOCK
Photo Part No Description Price (each) Stock
LR033408 SEAL - BRAKE TUBE FOAM TYPE $5.52 To Order
Photo Part No Description Price (each) Stock
LR033411 SEAL - BRAKE TUBE FOAM TYPE $25.99 To Order
Photo Part No Description Price (each) Stock
LR033413 SEAL - BRAKE TUBE FOAM TYPE $7.14 To Order
LR154807 SEAL - BRAKE TUBE FOAM TYPE $31.45 To Order
Photo Part No Description Price (each) Stock
LR033416 SEAL - BRAKE TUBE FOAM TYPE $5.15 To Order
LR154808 SEAL - BRAKE TUBE FOAM TYPE $7.55 To Order
Photo Part No Description Price (each) Stock
LR033417 SEAL - BRAKE TUBE FOAM TYPE $16.82 To Order
Photo Part No Description Price (each) Stock
LR033427 GROMMET - BRAKE PIPE $25.41 To Order
Photo Part No Description Price (each) Stock
LR052793 GROMMET - BRAKE PIPE $7.04 To Order
View All

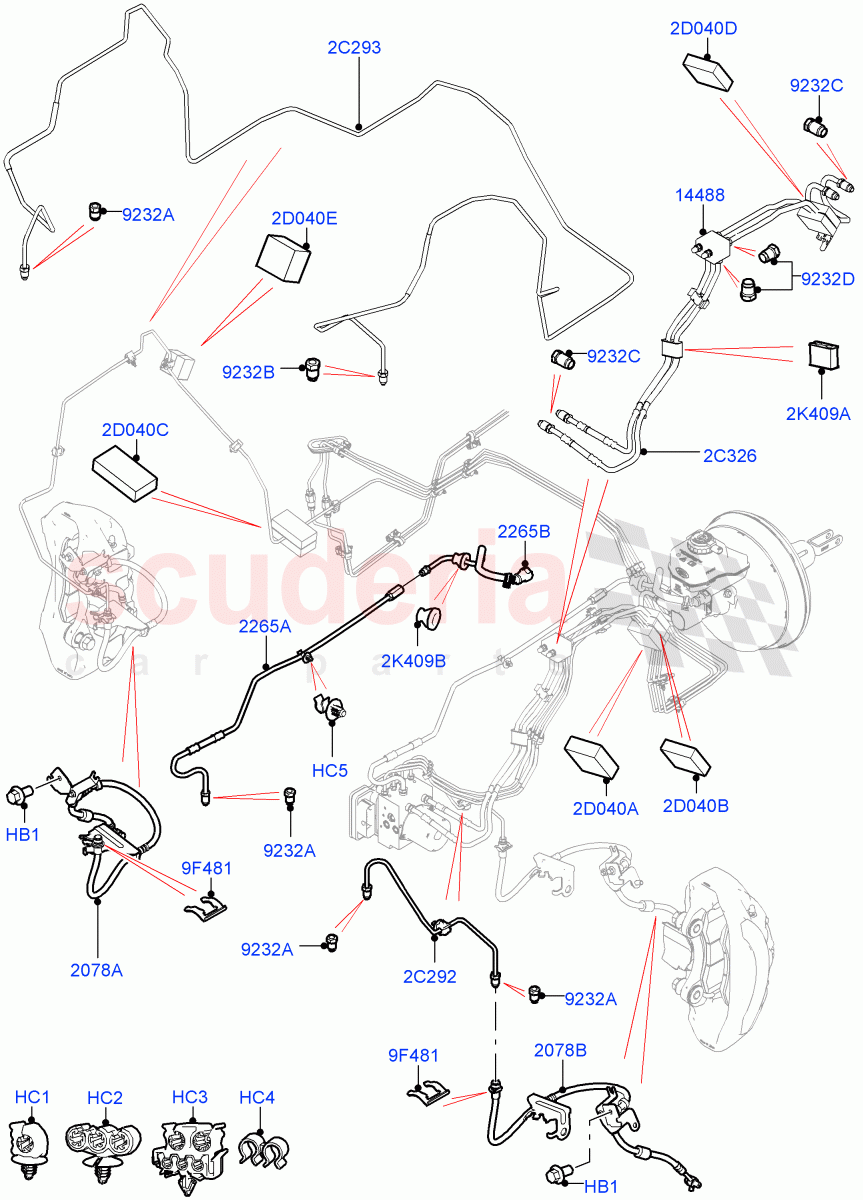

Front Brake Pipes (2.0L AJ200P Hi PHEV, LHD) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: JA000001
IN STOCK 		$0.68 4
HC1 LR033441
CLIP - SPECIAL
5MM, Single / From: JA000001 		$4.46 7
HC2 LR033442
CLIP - SPECIAL
5MM, Triple / From: JA000001 		$5.67 7
HC3 LR033443
CLIP - SPECIAL
5 Way, 5MM, 8MM / From: JA000001 		$32.84 1
HC4 LR033450
CLIP - SPECIAL
8MM, Double / From: JA000001 		$23.58 2
HC5 LR137522
CLIP
LH, Single / From: JA000001 		$3.97 1
2C292 LR033371
TUBE - BRAKE
Modulator To LH Front / From: JA000001 / To: MA449725 		$21.95 1
2C292 LR155147
TUBE - BRAKE
Modulator To LH Front / From: MA449726 		$85.59 1
2C293 LR033386
TUBE - BRAKE
Modulator To RH Front / From: JA000001 		$124.93 1
2C326 LR100769
TUBE - BRAKE
Modulator To Brake Master Cylinder / From: JA000001 / To: JA508665 		$173.19 1
2C326 LR117562
TUBE - BRAKE
Modulator To Brake Master Cylinder / From: JA508666 / To: MA449725 		$169.81 1
2C326 LR154813
TUBE - BRAKE
Modulator To Brake Master Cylinder / From: MA449726 		$749.98 1
2D040A LR033408
SEAL - BRAKE TUBE FOAM TYPE
5MM / From: JA000001 		$5.52 1
2D040B LR033411
SEAL - BRAKE TUBE FOAM TYPE
5MM / From: JA000001 		$25.99 1
2D040C LR033413
SEAL - BRAKE TUBE FOAM TYPE
5MM / From: JA000001 / To: MA449725 		$7.14 2
2D040C LR154807
SEAL - BRAKE TUBE FOAM TYPE
5MM / From: MA449726 		$31.45 2
2D040D LR033416
SEAL - BRAKE TUBE FOAM TYPE
8MM / From: JA000001 / To: MA449725 		$5.15 2
2D040D LR154808
SEAL - BRAKE TUBE FOAM TYPE
8MM / From: MA449726 		$7.55 2
2D040E LR033417
SEAL - BRAKE TUBE FOAM TYPE
Blank / From: JA000001 		$16.82 2
2K409A LR033427
GROMMET - BRAKE PIPE
8MM, Double / From: JA000001 		$25.41 1
2K409B LR052793
GROMMET - BRAKE PIPE
Single / From: JA000001 		$7.04 1
9F481 EJP7813
CLIP - HOSE
Brake Hose / From: JA000001
IN STOCK 		$2.46 2
2078A LR113969
HOSE - BRAKE
RH, Includes Bracket, To Caliper / From: JA000001 / To: KA517591 		$97.52 1
2078A LR113969
HOSE - BRAKE
RH, Includes Bracket, To Caliper / From: KA517592 		$97.52 1
2078B LR081602
HOSE - BRAKE
LH, Includes Bracket, To Caliper / From: JA000001 / To: KA517591 		$137.13 1
2078B LR113970
HOSE - BRAKE
LH, Includes Bracket, To Caliper / From: KA517592 		$137.13 1
2265A LR100710
PIPE - BRAKE
Lower, Reservoir To Modulator / From: JA000001 		$373.03 1
2265B LR100728
PIPE - BRAKE
Reservoir To Modulator, Upper / From: JA000001 		$382.42 1
9232A LR033452
NUT - CONNECTING
M10 / From: JA000001 		$10.78 4
9232B LR033453
NUT - CONNECTING
M12 / From: JA000001 		$9.67 1
9232C LR033454
NUT - CONNECTING
M14 / From: JA000001
IN STOCK 		$21.74 4
9232D LR033455
NUTS
M12 / From: JA000001
IN STOCK 		$20.82 4
14488 LR047052
CONNECTOR - PIPE
6 Way, Bleed Block / From: JA000001 		$143.30 1
