Electrical Wiring - Body And Rear (Tailgate)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Electrical Wiring - Body And Rear (Tailgate)

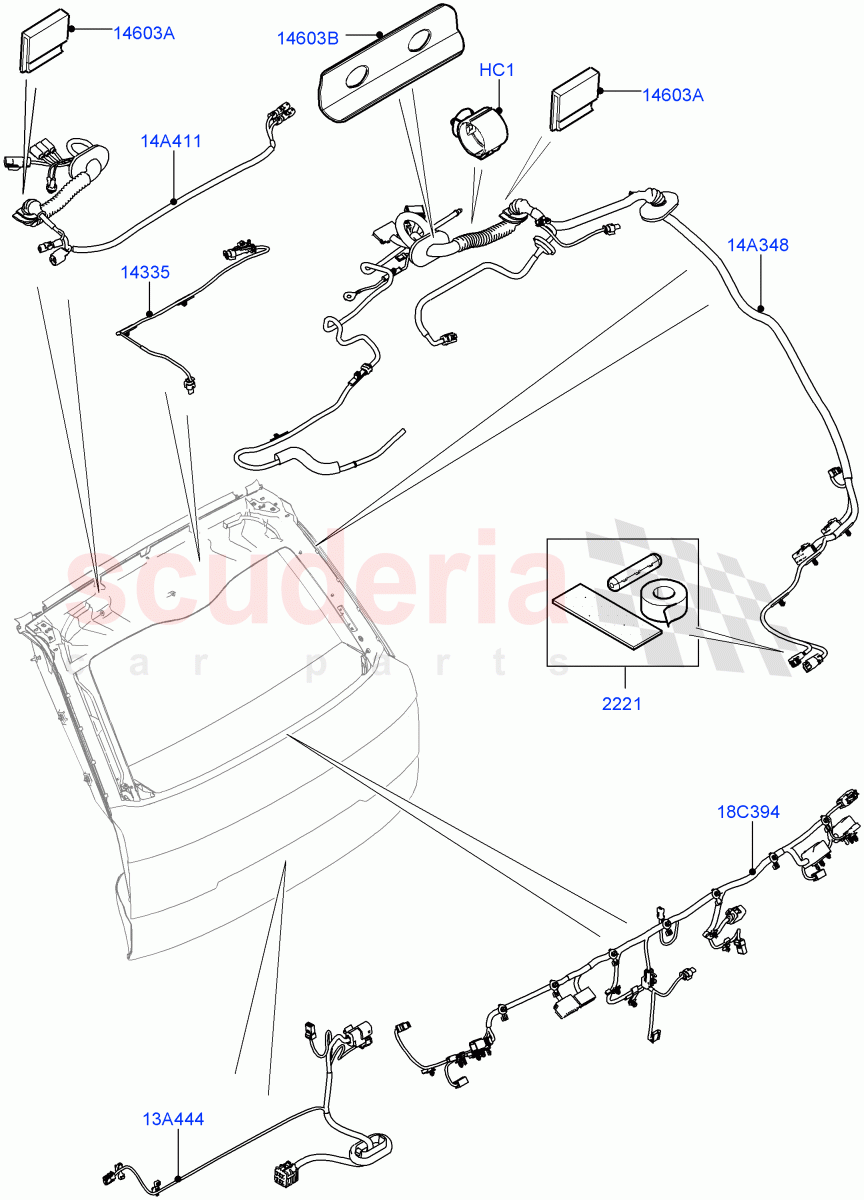

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR067012 CLIP - SINGLE $4.98 To Order
Photo Part No Description Price (each) Stock
LR083859 KIT - WIRING $144.87 To Order
Photo Part No Description Price (each) Stock
LR040387 WIRING - STOP LAMP $45.33 To Order
LR046852 WIRING - STOP LAMP $38.59 To Order
LR051090 WIRING - STOP LAMP $31.06 To Order
Photo Part No Description Price (each) Stock
LR040373 WIRING - TAILGATE $218.02 To Order
LR040372 WIRING - TAILGATE $49.25 To Order
LR046864 WIRING - TAILGATE $69.76 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR042890 GROMMET - TAILGATE $8.24 To Order
Photo Part No Description Price (each) Stock
LR066362 GROMMET - WIRING $7.14 To Order
Photo Part No Description Price (each) Stock
LR040383 WIRING - TAILGATE $447.55 To Order
LR040382 WIRING - TAILGATE $92.11 To Order
LR046856 WIRING - TAILGATE $398.67 To Order
...and 55 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR040376 WIRING - TAILGATE $157.96 To Order
LR040375 WIRING - TAILGATE $129.75 To Order
LR046849 WIRING - TAILGATE $206.41 To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR040374 WIRING - TAILGATE $217.56 To Order
LR046862 WIRING - TAILGATE $204.37 To Order
LR051084 WIRING - TAILGATE $204.37 To Order
...and 27 more part variants. See table on right for more details.
View All
Electrical Wiring - Body And Rear (Tailgate) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR067012
CLIP - SINGLE
Retention Clip / From: EA000001 		$4.98 2
13A444 LR040373
WIRING - TAILGATE
Tailgate - Power / To: DA108046 		$218.02 1
13A444 LR040372
WIRING - TAILGATE
Tailgate - Manual / To: DA108046 		$49.25 1
13A444 LR046864
WIRING - TAILGATE
Tailgate - Power / From: DA108047 / To: GA999999 		$69.76 1
13A444 LR046863
WIRING - TAILGATE
Tailgate - Manual / From: DA108047 / To: GA999999 		$30.06 1
13A444 LR046864
WIRING - TAILGATE
Tailgate - Hands Free / From: GA000001 / To: GA999999 		$69.76 1
13A444 LR089028
WIRING - TAILGATE
Tailgate - Power / From: HA000001 / To: HA367610 		$84.12 1
13A444 LR089029
WIRING - TAILGATE
Tailgate - Manual / From: HA000001 / To: HA367610 		$84.12 1
13A444 LR107370
WIRING - TAILGATE
Tailgate - Manual / From: HA367611 / To: JA999999 		$80.90 1
13A444 LR107369
WIRING - TAILGATE
Tailgate - Power / From: HA367611 / To: JA999999 		$80.90 1
13A444 LR120664
WIRING - TAILGATE
Tailgate - Power / From: KA000001 		$239.75 1
13A444 LR120665
WIRING - TAILGATE
Tailgate - Manual / From: KA000001 		$260.74 1
14A348 LR040383
WIRING - TAILGATE
Surround Camera System, Tailgate - Power / Motor - Rear Window Wiper / To: DA108046 		$447.55 1
14A348 LR040382
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / To: DA108046 		$92.11 1
14A348 LR046856
WIRING - TAILGATE
Surround Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: DA108047 / To: DA999999 		$398.67 1
14A348 LR046858
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: DA108047 / To: DA999999 		$174.20 1
14A348 LR051088
WIRING - TAILGATE
Surround Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: EA000001 / To: EA136708 		$189.84 1
14A348 LR051089
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Power / Motor - Rear Window Wiper / From: EA000001 / To: EA136708 		$189.84 1
14A348 LR054028
WIRING - TAILGATE
Surround Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: EA136709 / To: EA999999 		$288.50 1
14A348 LR054030
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Power / Motor - Rear Window Wiper / From: EA136709 / To: EA999999 		$277.42 1
14A348 LR058443
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Manual / Motor - Rear Window Wiper / From: EA000001 / To: EA999999 		$288.50 1
14A348 LR058446
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: EA000001 / To: EA999999 		$288.50 1
14A348 LR056002
WIRING - TAILGATE
Less Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: EA000001 / To: EA999999 		$288.50 1
14A348 LR056003
WIRING - TAILGATE
Less Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: EA000001 / To: EA999999 		$288.50 1
14A348 LR060050
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Manual / Motor - Rear Window Wiper / From: DA108047 / To: DA999999 		$275.93 1
14A348 LR060051
WIRING - TAILGATE
Less Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: DA108047 / To: DA999999 		$275.93 1
14A348 LR060052
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Power / Motor - Rear Window Wiper / From: DA108047 / To: DA999999 		$187.63 1
14A348 LR060049
WIRING - TAILGATE
Less Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: DA108047 / To: DA999999 		$275.93 1
14A348 LR064026
WIRING - TAILGATE
Surround Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: FA000001 / To: FA212799 		$226.68 1
14A348 LR064025
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Power / Motor - Rear Window Wiper / From: FA000001 / To: FA212799 		$160.04 1
14A348 LR064027
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Manual / Motor - Rear Window Wiper / From: FA000001 / To: FA212799 		$149.88 1
14A348 LR064028
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: FA000001 / To: FA212799 		$209.03 1
14A348 LR064029
WIRING - TAILGATE
Less Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: FA000001 / To: FA212799 		$166.28 1
14A348 LR064030
WIRING - TAILGATE
Less Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: FA000001 / To: FA212799 		$149.88 1
14A348 LR075705
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: GA000001 / To: GA298602 		$320.60 1
14A348 LR077775
WIRING - TAILGATE
Surround Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: FA212800 / To: FA999999 		$372.70 1
14A348 LR077776
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Power / Motor - Rear Window Wiper / From: FA212800 / To: FA999999 		$309.75 1
14A348 LR077777
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Manual / Motor - Rear Window Wiper / From: FA212800 / To: FA999999 		$309.75 1
14A348 LR077778
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: FA212800 / To: FA999999 		$320.60 1
14A348 LR077779
WIRING - TAILGATE
Less Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: FA212800 / To: FA999999 		$320.60 1
14A348 LR077780
WIRING - TAILGATE
Less Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: FA212800 / To: FA999999 		$320.60 1
14A348 LR088965
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Power / Motor - Rear Window Wiper / From: GA000001 / To: GA298602 		$141.43 1
14A348 LR075704
WIRING - TAILGATE
Surround Camera System, Tailgate - Hands Free / Motor - Rear Window Wiper / From: GA000001 / To: GA298602 		$309.75 1
14A348 LR090171
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: GA298603 / To: GA999999 		$252.08 1
14A348 LR090169
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Manual / Motor - Rear Window Wiper / From: GA298603 / To: GA999999 		$437.63 1
14A348 LR090170
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Power / Motor - Rear Window Wiper / From: GA298603 / To: GA999999 		$382.37 1
14A348 LR089036
WIRING - TAILGATE
Surround Camera System, Tailgate - Hands Free / Motor - Rear Window Wiper / From: HA000001 / To: HA367600 		$252.08 1
14A348 LR089037
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Hands Free / Motor - Rear Window Wiper / From: HA000001 / To: HA367600 		$252.08 1
14A348 LR089038
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Manual / Motor - Rear Window Wiper / From: HA000001 / To: HA367600 		$252.08 1
14A348 LR089039
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: HA000001 / To: HA367600 		$252.08 1
14A348 LR089040
WIRING - TAILGATE
Less Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: HA000001 / To: HA367600 		$252.08 1
14A348 LR089041
WIRING - TAILGATE
Less Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: HA000001 / To: HA367600 		$252.08 1
14A348 LR107373
WIRING - TAILGATE
Surround Camera System, Tailgate - Hands Free / Motor - Rear Window Wiper / From: HA367601 / To: HA999999 		$289.65 1
14A348 LR107374
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Hands Free / Motor - Rear Window Wiper / From: HA367601 / To: HA999999 		$234.22 1
14A348 LR107375
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Manual / Motor - Rear Window Wiper / From: HA367601 / To: HA999999 		$242.39 1
14A348 LR107376
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: HA367601 / To: HA999999 		$242.39 1
14A348 LR107377
WIRING - TAILGATE
Less Camera System, Tailgate - Hands Free / Motor - Rear Window Wiper / From: HA367601 / To: HA999999 		$242.39 1
14A348 LR107378
WIRING - TAILGATE
Less Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: HA367601 / To: HA999999 		$242.39 1
14A348 LR102343
WIRING - TAILGATE
Less Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: JA000001 / To: JA999999 		$258.14 1
14A348 LR102344
WIRING - TAILGATE
Less Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: JA000001 / To: JA999999 		$258.14 1
14A348 LR102345
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Manual / Motor - Rear Window Wiper / From: JA000001 / To: JA999999 		$258.14 1
14A348 LR102346
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Hands Free / Motor - Rear Window Wiper / From: JA000001 / To: JA999999 		$227.66 1
14A348 LR102347
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: JA000001 / To: JA999999 		$258.14 1
14A348 LR102348
WIRING - TAILGATE
Surround Camera System, Tailgate - Power / Motor - Rear Window Wiper / From: JA000001 / To: JA999999 		$246.91 1
14A348 LR120676
WIRING - TAILGATE
Less Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: KA000001 		$260.74 1
14A348 LR120677
WIRING - TAILGATE
Less Camera System, Tailgate - Hands Free / Motor - Rear Window Wiper / From: KA000001 		$260.74 1
14A348 LR120678
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Manual / Motor - Rear Window Wiper / From: KA000001 		$374.74 1
14A348 LR120679
WIRING - TAILGATE
Rear View Camera-Fixed, Tailgate - Power / Motor - Rear Window Wiper / From: KA000001 		$366.37 1
14A348 LR120680
WIRING - TAILGATE
Surround Camera System, Tailgate - Manual / Motor - Rear Window Wiper / From: KA000001 		$260.74 1
14A348 LR120681
WIRING - TAILGATE
Surround Camera System, Tailgate-Powered Upper / Motor - Rear Window Wiper / From: KA000001 		$241.44 1
14A411 LR040376
WIRING - TAILGATE
Navigation Centre - All / Amplifier Radio Antenna / To: DA108046 		$157.96 1
14A411 LR040375
WIRING - TAILGATE
(+)"J", Nav System/Dynmc Route Guide-VICS / Amplifier Radio Antenna / To: DA108046 		$129.75 1
14A411 LR046849
WIRING - TAILGATE
Navigation Centre - Asia / Amplifier Radio Antenna / From: DA108047 / To: DA999999 		$206.41 1
14A411 LR046850
WIRING - TAILGATE
(+)"J", Nav System/Dynmc Route Guide-VICS / Amplifier Radio Antenna / From: DA108047 / To: DA999999 		$157.96 1
14A411 LR051091
WIRING - TAILGATE
Digital Audio Broadcast, Navigation Centre - Europe / Amplifier Radio Antenna / From: EA000001 / To: EA136708 		$88.04 1
14A411 LR051092
WIRING - TAILGATE
Analogue Audio Broadcast, With Colour Nav. System NAS / Amplifier Radio Antenna / From: EA000001 / To: EA136708 		$132.09 1
14A411 LR051093
WIRING - TAILGATE
Nav System/Dynmc Route Guide-VICS / Amplifier Radio Antenna / From: EA000001 / To: EA136708 		$88.04 1
14A411 LR054771
WIRING - TAILGATE
Digital Audio Broadcast, With Colour Nav. System NAS / Amplifier Radio Antenna / From: EA136709 / To: EA999999 		$67.30 1
14A411 LR054773
WIRING - TAILGATE
Nav System/Dynmc Route Guide-VICS / Amplifier Radio Antenna / From: EA136709 / To: EA999999 		$43.33 1
14A411 LR063824
WIRING - TAILGATE
Digital Audio Broadcast, Navigation Centre - Asia / Amplifier Radio Antenna / From: FA000001 / To: GA298602 		$156.50 1
14A411 LR063825
WIRING - TAILGATE
Analogue Audio Broadcast, Navigation Centre - Asia / Amplifier Radio Antenna, Includes Washer Hose / From: FA000001 / To: GA298602 		$150.51 1
14A411 LR063826
WIRING - TAILGATE
Nav System/Dynmc Route Guide-VICS / Amplifier Radio Antenna / From: FA000001 / To: GA298602 		$156.50 1
14A411 LR090190
WIRING - TAILGATE
Digital Audio Broadcast, Navigation Centre - Row / Amplifier Radio Antenna / From: GA298603 / To: GA999999 		$199.60 1
14A411 LR090178
WIRING - TAILGATE
Analogue Audio Broadcast, Navigation Center - Europe/ROW / Amplifier Radio Antenna, Includes Washer Hose / From: GA298603 / To: GA999999 		$250.35 1
14A411 LR090179
WIRING - TAILGATE
Analogue Audio Broadcast, Nav System/Dynmc Route Guide-VICS / Amplifier Radio Antenna, Includes Washer Hose / From: GA298603 / To: GA999999 		$199.60 1
14A411 LR089048
WIRING - TAILGATE
Digital Audio Broadcast / Amplifier Radio Antenna / From: HA000001 		$199.60 1
14A411 LR089049
WIRING - TAILGATE
Analogue Audio Broadcast / Amplifier Radio Antenna / From: HA000001 		$199.60 1
14A411 LR054772
WIRING - TAILGATE
Sirius Radio Broadcast, With Navigation Preparation / Amplifier Radio Antenna / From: EA136709 / To: EA999999 		$130.81 1
18C394 LR040374
WIRING - TAILGATE
Tailgate - Manual, With Keyless Start / To: DA108046 		$217.56 1
18C394 LR046862
WIRING - TAILGATE
Keyless Entry/Start - Passive, Tailgate - Power / From: DA108047 / To: DA999999 		$204.37 1
18C394 LR051084
WIRING - TAILGATE
Keyless Entry/Start - Passive, Tailgate - Power / From: EA000001 / To: EA136708 		$204.37 1
18C394 LR051085
WIRING - TAILGATE
Tailgate - Power, With Keyless Start / From: EA000001 / To: EA136708 		$204.37 1
18C394 LR051086
WIRING - TAILGATE
Keyless Entry/Start - Passive, Tailgate - Manual / From: EA000001 / To: EA136708 		$204.37 1
18C394 LR051087
WIRING - TAILGATE
Tailgate - Manual, With Keyless Start / From: EA000001 / To: EA136708 		$204.37 1
18C394 LR054017
WIRING - TAILGATE
Keyless Entry/Start - Passive, Tailgate - Power / From: EA136709 / To: EA999999 		$204.37 1
18C394 LR054020
WIRING - TAILGATE
Tailgate - Power, With Keyless Start / From: EA136709 / To: EA999999 		$204.37 1
18C394 LR054021
WIRING - TAILGATE
Keyless Entry/Start - Passive, Tailgate - Manual / From: EA136709 / To: EA999999 		$204.37 1
18C394 LR054022
WIRING - TAILGATE
Tailgate - Manual, With Keyless Start / From: EA136709 / To: EA999999 		$204.37 1
18C394 LR063797
WIRING - TAILGATE
Keyless Entry/Start - Passive, Tailgate - Power / From: FA000001 / To: FA212569 		$158.45 1
18C394 LR063798
WIRING - TAILGATE
Tailgate - Power, With Keyless Start / From: FA000001 / To: FA212569 		$145.20 1
18C394 LR063799
WIRING - TAILGATE
Keyless Entry/Start - Passive, Tailgate - Manual / From: FA000001 / To: FA999999 		$145.20 1
18C394 LR063800
WIRING - TAILGATE
Tailgate - Manual, With Keyless Start / From: FA000001 / To: FA212569 		$145.20 1
18C394 LR075699
WIRING - TAILGATE
Keyless Entry/Start - Passive, Tailgate - Power / From: GA000001 / To: GA298602 		$271.38 1
18C394 LR075700
WIRING - TAILGATE
Tailgate - Hands Free, With Keyless Start / From: GA000001 / To: GA298602 		$271.38 1
18C394 LR075701
WIRING - TAILGATE
Tailgate - Manual / From: GA000001 / To: GA298602 		$271.38 1
18C394 LR073603
WIRING - TAILGATE
Tailgate - Power / From: FA212570 / To: FA999999 		$252.08 1
18C394 LR073604
WIRING - TAILGATE
Tailgate - Manual, With Keyless Start / From: FA212570 / To: FA999999 		$271.38 1
18C394 LR090175
WIRING - TAILGATE
Keyless Entry/Start - Passive, Tailgate - Hands Free / From: GA298603 / To: GA999999 		$262.20 1
18C394 LR090176
WIRING - TAILGATE
Tailgate - Hands Free, With Keyless Start / From: GA298603 / To: GA999999 		$271.38 1
18C394 LR090177
WIRING - TAILGATE
Tailgate - Manual, With Keyless Start / From: GA298603 / To: GA999999 		$271.38 1
18C394 LR089042
WIRING - TAILGATE
Tailgate - Hands Free / From: HA000001 / To: HA367610 		$126.08 1
18C394 LR089043
WIRING - TAILGATE
Tailgate - Manual / From: HA000001 / To: HA367610 		$126.08 1
18C394 LR107371
WIRING - TAILGATE
Tailgate - Hands Free / From: HA367611 / To: HA999999 		$121.20 1
18C394 LR107372
WIRING - TAILGATE
Tailgate - Manual / From: HA367611 / To: HA999999 		$121.20 1
18C394 LR102357
WIRING - TAILGATE
Tailgate - Manual / From: JA000001 / To: JA999999 		$62.59 1
18C394 LR102358
WIRING - TAILGATE
Tailgate - Hands Free / From: JA000001 / To: JA999999 		$132.50 1
18C394 LR120666
WIRING - TAILGATE
Tailgate-Powered Upper / From: KA000001 		$260.74 1
18C394 LR120667
WIRING - TAILGATE
Tailgate - Hands Free / From: KA000001 		$260.74 1
2221 LR083859
KIT - WIRING
From: GA243371 		$144.87 1
14335 LR040387
WIRING - STOP LAMP
Stop Lamp / To: DA108046 		$45.33 1
14335 LR046852
WIRING - STOP LAMP
Stop Lamp / From: DA108047 / To: DA999999 		$38.59 1
14335 LR051090
WIRING - STOP LAMP
Stop Lamp / From: EA000001 		$31.06 1
14603A LR042890
GROMMET - TAILGATE
Wiring Harness 		$8.24 2
14603B LR066362
GROMMET - WIRING 		$7.14 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
