Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Auto Trans Assy & Speedometer Drive (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110086 BOLT - HEX.HEAD $0.59 To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
TYG500102 STUD $2.97 To Order
Photo Part No Description Price (each) Stock
LR053472 AUTOMATIC TRANSMISSION $19,345.46 To Order
LR078391 AUTOMATIC TRANSMISSION $18,453.48 To Order
Photo Part No Description Price (each) Stock
LR048825 TUBE - TRANSMISSION VENTILATION $34.69 To Order
LR080755 TUBE - TRANSMISSION VENTILATION $66.43 To Order
View All

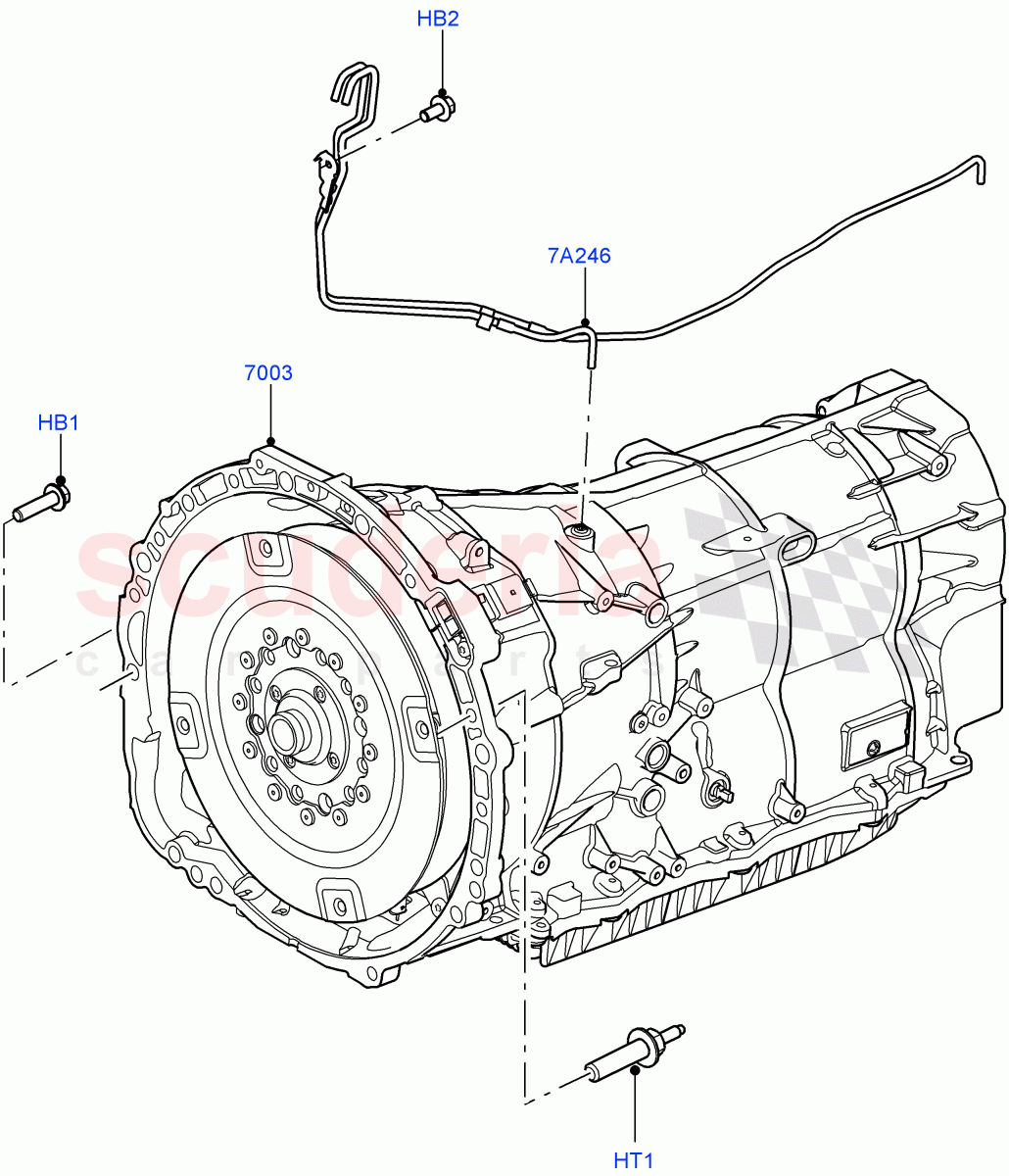

Auto Trans Assy & Speedometer Drive (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMEA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110086
BOLT - HEX.HEAD
M10 x 40MM / From: EA000001 		$0.59 8
HB2 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: EA000001
IN STOCK 		$0.52 1
HT1 TYG500102
STUD
M6 X 16MM + M10 X 38MM, Stud / From: EA000001 		$2.97 5
7A246 LR048825
TUBE - TRANSMISSION VENTILATION
Gearbox / From: EA000001 / To: GA264554 		$34.69 1
7A246 LR080755
TUBE - TRANSMISSION VENTILATION
Gearbox / From: GA264555 		$66.43 1
7003 LR053472
AUTOMATIC TRANSMISSION
3.0 V6 Diesel Electric Hybrid Eng / New / From: EA000001 / To: FA999999 		$19,345.46 1
7003 LR078391
AUTOMATIC TRANSMISSION
From: GA000001 		$18,453.48 1
