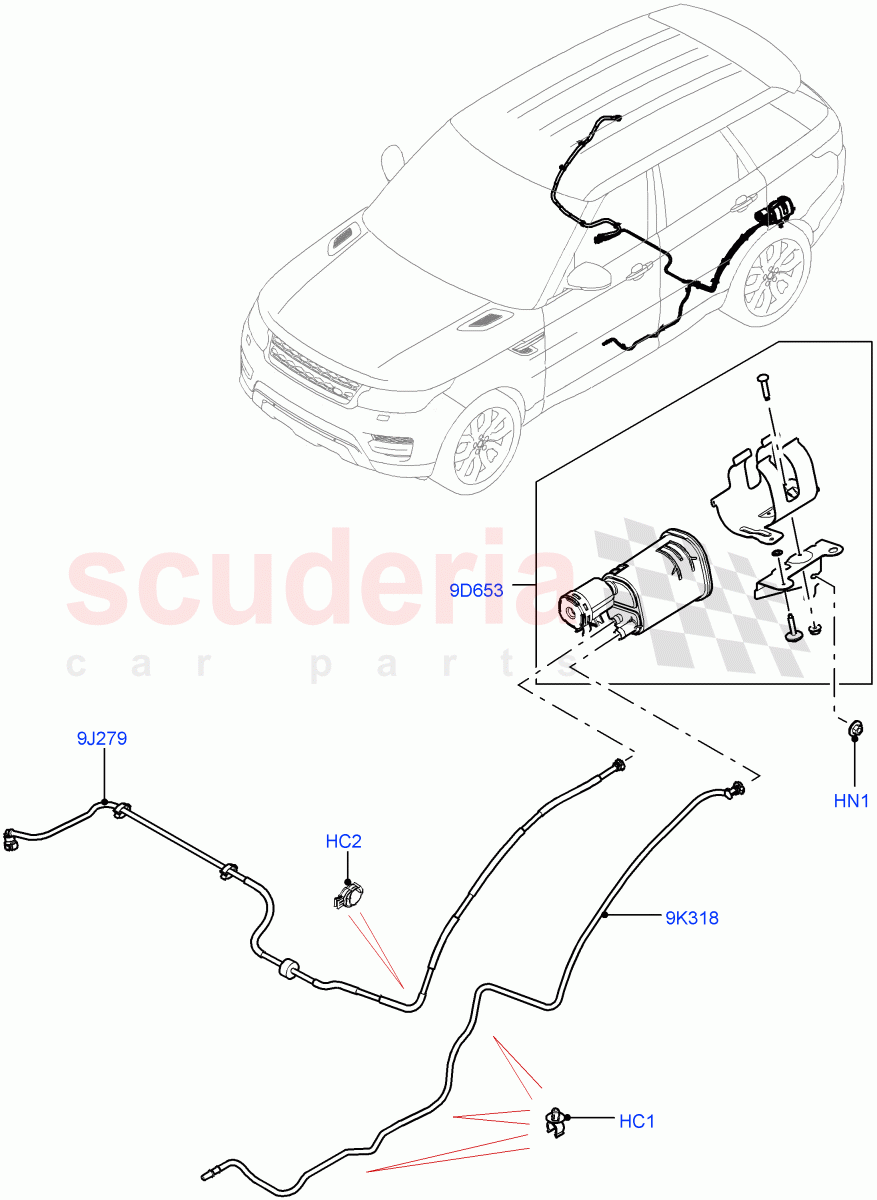

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$3.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072683	RESERVOIR - FUEL VAPOUR SYSTEM	$619.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061014	TUBE - VENTILATION	$67.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061016	TUBE - FUEL VAPOUR	$58.71	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic	$1.69	3
HC2	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic	$2.49	1
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Bracket, Hexagonal Head, Lower, M6, Nut And Washer IN STOCK	$3.10	2
9D653	LR072683	RESERVOIR - FUEL VAPOUR SYSTEM	LR072683 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket	$619.68	1
9J279	LR061014	TUBE - VENTILATION	LR061014 TUBE - VENTILATION Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister	$67.25	1
9K318	LR061016	TUBE - FUEL VAPOUR	LR061016 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet	$58.71	1

Haven't found what you're looking for?

View Cart / Checkout

Fuel Lines (Rear) (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]
