Name: Oil Pan/Oil Level Indicator (2.0L 16V TIVCT T/C 240PS Petrol)
Rating: 4.6 (1 reviews)

View All

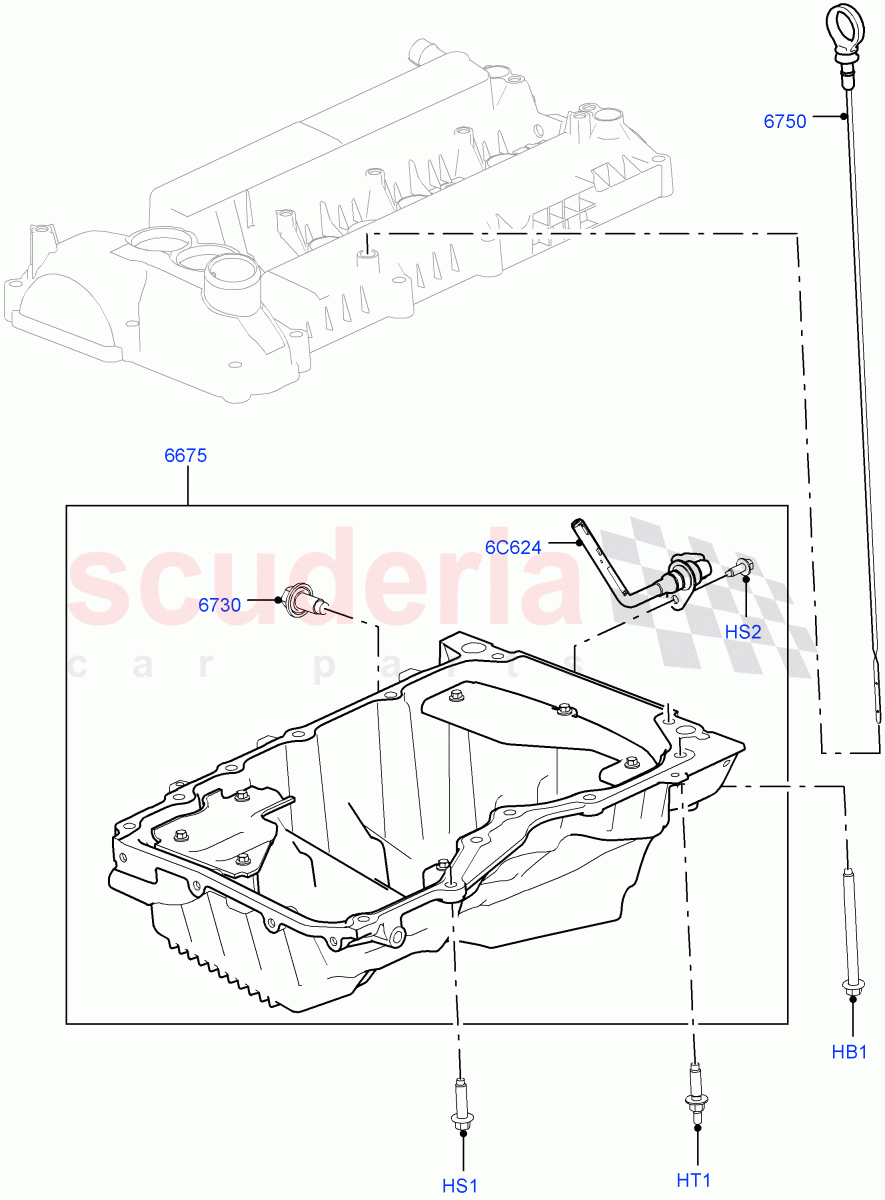

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR054947	BOLT - HEX.HEAD	$4.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048528	SCREW	$3.88	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025514	STUD	$6.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025048	PLUG - OIL DRAIN	$8.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024971	SENSOR - OIL LEVEL	$173.90	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR054947	BOLT - HEX.HEAD	LR054947 BOLT - HEX.HEAD M8 x 92,5MM	$4.59	2
HS1	LR048528	SCREW	LR048528 SCREW M8 x 28MM	$3.88	10
HS2	4408651	SCREW	4408651 SCREW M6 X 14MM	$1.27	1
HT1	LR025514	STUD	LR025514 STUD M8X25 + M6X12	$6.24	1
6C624	LR024971	SENSOR - OIL LEVEL	LR024971 SENSOR - OIL LEVEL Sensor - Oil Temperature	$173.90	1
6675	LR057578	Pan - Engine Oil	LR057578 Pan - Engine Oil To: EA196785	$682.25	1
6675	LR076015	PAN - ENGINE OIL	LR076015 PAN - ENGINE OIL From: EA196786	$1,169.43	1
6730	LR025048	PLUG - OIL DRAIN	LR025048 PLUG - OIL DRAIN	$8.73	1
6750	LR057629	Indicator - Oil Level	LR057629 Indicator - Oil Level To: FA999999	$53.22	1
6750	LR076016	INDICATOR - OIL LEVEL	LR076016 INDICATOR - OIL LEVEL From: GA000001	$77.44	1

Oil Pan/Oil Level Indicator (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]
