Transmission Mounting (4.4L Dohc Ditc V8 Diesel, 5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V)...

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Transmission Mounting (4.4L DOHC DITC V8 Diesel, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR043577 BOLT - HEX. HEAD - FLANGED $10.17 To Order
Photo Part No Description Price (each) Stock
LR033202 NUT $1.43 IN STOCK
Photo Part No Description Price (each) Stock
LR033203 SCREW $5.91 To Order
LR072612 SCREW $2.74 To Order
Photo Part No Description Price (each) Stock
FT110356 SCREW $2.39 To Order
Photo Part No Description Price (each) Stock
RYG501170 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR038131 STIFFENER $57.15 To Order
Photo Part No Description Price (each) Stock
LR043761 DAMPER - DAMPING MASS $166.16 To Order
Photo Part No Description Price (each) Stock
LR033177 SUPPORT - TRANSMISSION CENTRE $584.23 To Order
LR052331 SUPPORT - TRANSMISSION CENTRE $619.73 To Order
LR062114 SUPPORT - TRANSMISSION CENTRE $1,148.13 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091364 INSULATOR - ENGINE SUPPORT $161.13 To Order
LR091364 INSULATOR - ENGINE SUPPORT $161.13 To Order
View All

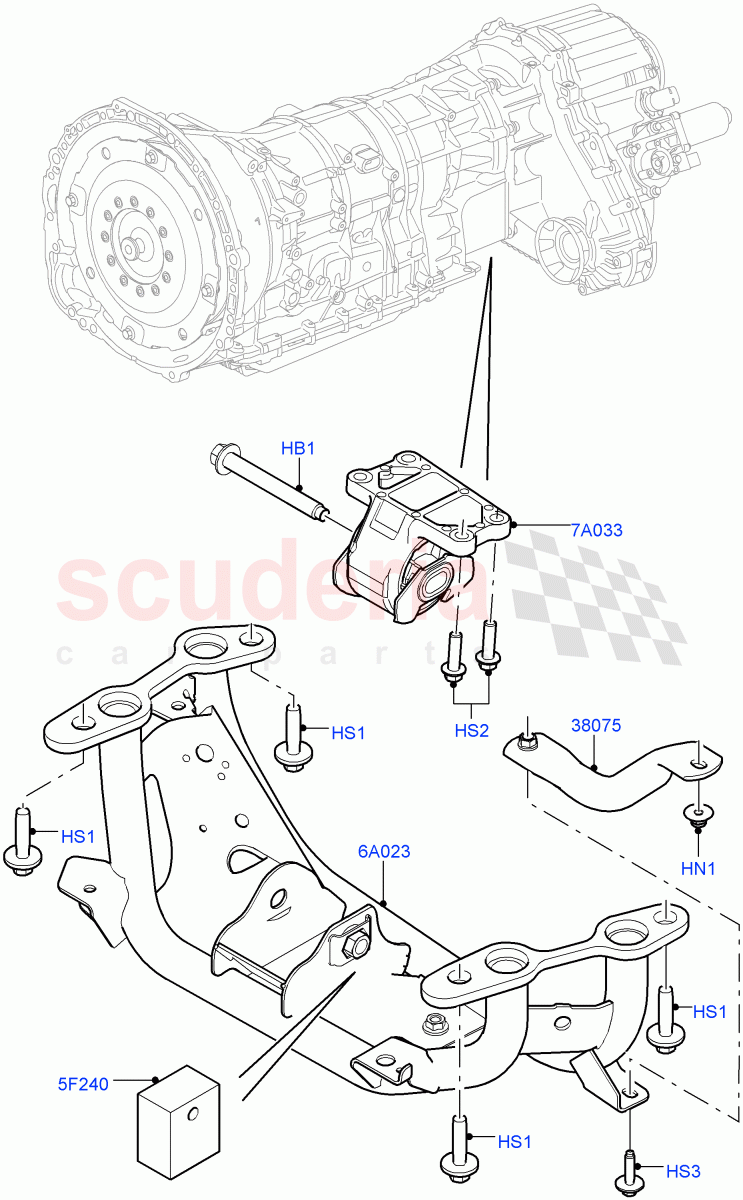

Transmission Mounting (4.4L DOHC DITC V8 Diesel, 5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR043577
BOLT - HEX. HEAD - FLANGED
Hexagonal Head, M14 X 128.5MM 		$10.17 1
HN1 LR033202
NUT
M8
IN STOCK 		$1.43 1
HS1 LR033203
SCREW
Hexagonal Head, M12 x 50MM / To: FA227609 		$5.91 4
HS1 LR072612
SCREW
Hexagonal Head, M12 X 45MM / From: FA227610 		$2.74 4
HS2 FT110356
SCREW
Hexagonal Head, M10 x 35MM 		$2.39 4
HS3 RYG501170
SCREW AND WASHER
Hexagonal Head, M8 X 30MM 		$0.61 1
5F240 LR043761
DAMPER - DAMPING MASS
Transmission Mounting 		$166.16 1
6A023 LR033177
SUPPORT - TRANSMISSION CENTRE
Transmission / To: DA999999 		$584.23 1
6A023 LR052331
SUPPORT - TRANSMISSION CENTRE
Transmission / From: EA000001 / To: EA171435 		$619.73 1
6A023 LR062114
SUPPORT - TRANSMISSION CENTRE
Transmission / From: FA000001 / To: FA999999 		$1,148.13 1
6A023 LR061587
SUPPORT - TRANSMISSION CENTRE
Transmission / From: EA171436 / To: EA999999 		$619.73 1
6A023 LR062114
SUPPORT - TRANSMISSION CENTRE
5.0L OHC SGDI SC V8 Petrol - AJ133 / Transmission / From: GA000001 / To: GA999999 		$1,148.13 1
6A023 LR072221
SUPPORT - TRANSMISSION CENTRE
4.4L DOHC DITC V8 Diesel / Transmission / From: GA000001 / To: GA999999 		$891.39 1
6A023 LR084109
SUPPORT - TRANSMISSION CENTRE
4.4L DOHC DITC V8 Diesel / Transmission / From: HA000001 / To: HA336031 		$655.96 1
6A023 LR099175
SUPPORT - TRANSMISSION CENTRE
4.4L DOHC DITC V8 Diesel / Transmission / From: HA336032 / To: HA361360 		$669.09 1
6A023 LR084110
SUPPORT - TRANSMISSION CENTRE
5.0L OHC SGDI SC V8 Petrol - AJ133 / Transmission / From: HA000001 / To: HA361360 		$637.96 1
6A023 LR105302
SUPPORT - TRANSMISSION CENTRE
5.0L OHC SGDI SC V8 Petrol - AJ133 / Transmission / From: HA361361 / To: HA999999 		$637.96 1
6A023 LR105303
SUPPORT - TRANSMISSION CENTRE
4.4L DOHC DITC V8 Diesel / Transmission / From: HA361361 		$669.09 1
7A033 LR091364
INSULATOR - ENGINE SUPPORT
Transfer Box / To: GA999999 		$161.13 1
7A033 LR091364
INSULATOR - ENGINE SUPPORT
Transfer Box / From: HA000001 		$161.13 1
38075 LR038131
STIFFENER 		$57.15 1
