Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Timing Gear (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088515 BOLT $2.60 To Order
Photo Part No Description Price (each) Stock
LR091750 BOLT - SPECIAL $45.09 To Order
LR127722 BOLT - SPECIAL $50.84 To Order
Photo Part No Description Price (each) Stock
LR154974 O-RING $7.18 IN STOCK
LR154974 O-RING $7.18 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.35 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.67 IN STOCK
Photo Part No Description Price (each) Stock
LR073762 PIN - SPECIAL $3.01 To Order
Photo Part No Description Price (each) Stock
LR073759 NUT - SPECIAL $1.80 To Order
LR120542 NUT - SPECIAL $3.04 To Order
Photo Part No Description Price (each) Stock
110123464 SPROCKET - CAMSHAFT $282.20 To Order
110123464 SPROCKET - CAMSHAFT $282.20 To Order
Photo Part No Description Price (each) Stock
LR177463 SOLENOID - ENGINE VARIABLE TIMING $41.04 IN STOCK
110123463 SPROCKET - CAMSHAFT $282.20 To Order
Photo Part No Description Price (each) Stock
LR091740 CHAIN - TIMING $138.60 To Order
Photo Part No Description Price (each) Stock
LR091742 CHAIN - TIMING $138.57 To Order
LR139321 CHAIN - DRIVE $120.69 To Order
Photo Part No Description Price (each) Stock
LR091743 TENSIONER - TIMING BELT $124.46 To Order
Photo Part No Description Price (each) Stock
LR123811 TENSIONER - TIMING BELT $118.49 To Order
LR123811 TENSIONER - TIMING BELT $118.49 To Order
Photo Part No Description Price (each) Stock
LR124261 IDLER - DRIVE CHAIN $71.49 To Order
LR124261 IDLER - DRIVE CHAIN $71.49 To Order
Photo Part No Description Price (each) Stock
LR073778 SOLENOID - ENGINE VARIABLE TIMING $184.43 To Order
LR177463 SOLENOID - ENGINE VARIABLE TIMING $41.04 IN STOCK
LR177463 SOLENOID - ENGINE VARIABLE TIMING $41.04 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR124262 ARM - TIMING CHAIN TENSIONER $42.67 IN STOCK
LR124262 ARM - TIMING CHAIN TENSIONER $42.67 IN STOCK
Photo Part No Description Price (each) Stock
LR125215 GUIDE - TIMING CHAIN $37.03 To Order
LR125215 GUIDE - TIMING CHAIN $37.03 To Order
Photo Part No Description Price (each) Stock
LR091745 GUIDE - TIMING CHAIN $48.88 To Order
Photo Part No Description Price (each) Stock
LR091747 ARM - TIMING CHAIN TENSIONER $45.40 IN STOCK
Photo Part No Description Price (each) Stock
LR091746 GUIDE - TIMING CHAIN $48.56 To Order
Photo Part No Description Price (each) Stock
LR091574 JET - CHAIN LUBRICATING $20.91 To Order
Photo Part No Description Price (each) Stock
LR091575 JET - CHAIN LUBRICATING $21.83 To Order
View All

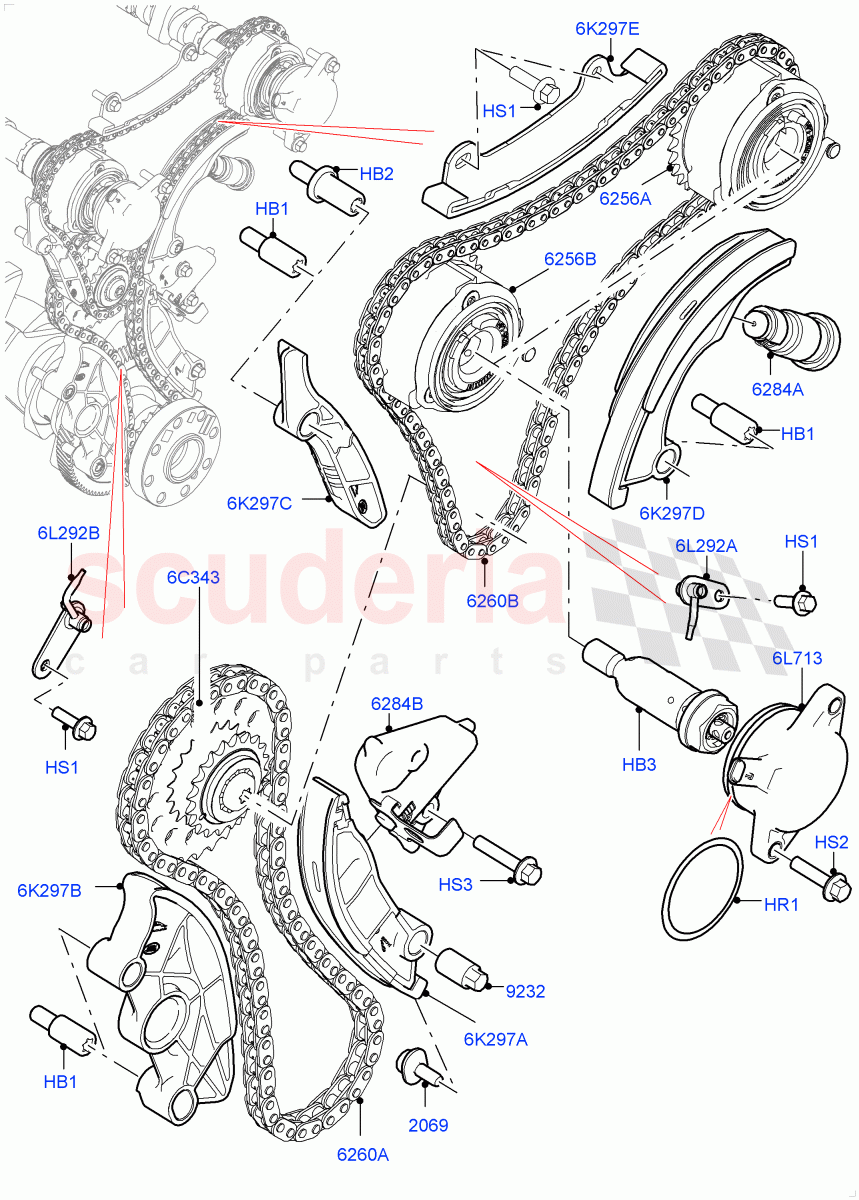

Timing Gear (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088515
BOLT
Chain Guide, M8 X 17MM, Primary / From: JA000001 		$2.60 2
HB3 LR091750
BOLT - SPECIAL
Variable Valve Timing Unit / From: JA000001 / To: KA542963 		$45.09 2
HB3 LR127722
BOLT - SPECIAL
Variable Valve Timing Unit / From: KA542964 		$50.84 2
HR1 LR154974
O-RING
IN STOCK 		$7.18 2
HR1 LR154974
O-RING
IN STOCK 		$7.18 2
HS1 LR073655
SCREW
Chain Guide, Hexagonal Head, M6 X 20MM / From: JA000001
IN STOCK 		$1.60 2
HS2 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / From: JA000001 		$1.35 4
HS3 LR073648
SCREW
Hexagonal Head, M6 x 30MM, Tensioner / From: JA000001
IN STOCK 		$2.67 2
6C343 LR124261
IDLER - DRIVE CHAIN
Intermediate / From: JA000001 / To: JA505637 		$71.49 1
6C343 LR124261
IDLER - DRIVE CHAIN
Intermediate / From: JA505638 		$71.49 1
6K297A LR124262
ARM - TIMING CHAIN TENSIONER
RH, Primary / From: JA000001 / To: JA505637
IN STOCK 		$42.67 1
6K297A LR124262
ARM - TIMING CHAIN TENSIONER
RH, Primary / From: JA505638
IN STOCK 		$42.67 1
6K297B LR125215
GUIDE - TIMING CHAIN
LH, Primary / From: JA000001 / To: KA540887 		$37.03 1
6K297B LR125215
GUIDE - TIMING CHAIN
LH, Primary / From: KA540888 		$37.03 1
6K297C LR091745
GUIDE - TIMING CHAIN
LH, Secondary / From: JA000001 		$48.88 1
6K297D LR091747
ARM - TIMING CHAIN TENSIONER
RH, Secondary / From: JA000001
IN STOCK 		$45.40 1
6K297E LR091746
GUIDE - TIMING CHAIN
Secondary, Upper / From: JA000001 		$48.56 1
6L292A LR091574
JET - CHAIN LUBRICATING
Upper / From: JA000001 		$20.91 1
6L292B LR091575
JET - CHAIN LUBRICATING
Lower / From: JA000001 		$21.83 1
6L713 LR073778
SOLENOID - ENGINE VARIABLE TIMING
From: JA000001 / To: KA536735 		$184.43 2
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
From: KA536736 / To: MA455620
IN STOCK 		$41.04 2
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
From: MA455621 / To: MA456533
IN STOCK 		$41.04 2
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
From: MA456534
IN STOCK 		$41.04 2
2069 LR073762
PIN - SPECIAL
PIVOT / From: JA000001 		$3.01 1
6256A 110123464
SPROCKET - CAMSHAFT
Exhaust, Variable Valve Timing Unit / From: LA409139 		$282.20 1
6256A 110123464
SPROCKET - CAMSHAFT
Exhaust, Variable Valve Timing Unit / From: JA000001 / To: LA409138 		$282.20 1
6256B LR177463
SOLENOID - ENGINE VARIABLE TIMING
Inlet, Variable Valve Timing Unit / From: LA409139
IN STOCK 		$41.04 1
6256B 110123463
SPROCKET - CAMSHAFT
Inlet, Variable Valve Timing Unit / From: JA000001 / To: LA409138 		$282.20 1
6260A LR091740
CHAIN - TIMING
Lower, Primary / From: JA000001 		$138.60 1
6260B LR091742
CHAIN - TIMING
Secondary, Upper / From: JA000001 / To: LA596835 		$138.57 1
6260B LR139321
CHAIN - DRIVE
Secondary, Upper / From: LA596836 		$120.69 1
6284A LR091743
TENSIONER - TIMING BELT
Secondary / From: JA000001 		$124.46 1
6284B LR123811
TENSIONER - TIMING BELT
Primary / From: JA000001 / To: KA520431 		$118.49 1
6284B LR123811
TENSIONER - TIMING BELT
Primary / From: KA520432 		$118.49 1
9232 LR073759
NUT - SPECIAL
From: JA000001 / To: JA508352 		$1.80 1
9232 LR120542
NUT - SPECIAL
From: JA508353 		$3.04 1
