Timing Gear Covers (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Timing Gear Covers (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073787 PIN - CENTERING $4.15 To Order
Photo Part No Description Price (each) Stock
LR091801 PLUG - BLANKING $13.55 To Order
LR135851 PLUG - ENGINE $14.77 To Order
LR135858 PLUG - ENGINE $6.68 IN STOCK
Photo Part No Description Price (each) Stock
LR095782 O-RING $4.80 IN STOCK
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.31 To Order
LR071842 SCREW AND WASHER - HEX HEAD $1.31 To Order
Photo Part No Description Price (each) Stock
LR073786 SCREW $2.25 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.40 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.63 IN STOCK
Photo Part No Description Price (each) Stock
LR084639 SEAL - CRANKSHAFT OIL - REAR $48.91 To Order
Photo Part No Description Price (each) Stock
LR101474 COVER - CYLINDER BLOCK REAR $136.70 To Order
LR140519 COVER - CYLINDER BLOCK REAR $204.60 To Order
Photo Part No Description Price (each) Stock
LR108934 COVER - CYLINDER HEAD $190.74 To Order
LR172511 Cover $73.16 To Order
Photo Part No Description Price (each) Stock
LR091809 GASKET - COVER $28.01 To Order
Photo Part No Description Price (each) Stock
LR101089 SEAL - TRANSMISSION $67.36 To Order
Photo Part No Description Price (each) Stock
LR101090 SEAL - STARTER MOTOR $40.06 To Order
LR134975 SEAL - STARTER MOTOR $60.82 To Order
Photo Part No Description Price (each) Stock
LR074068 SENSOR - CRANKSHAFT POSITION - CPS $127.59 To Order
LR126181 SENSOR - CRANKSHAFT POSITION - CPS $148.59 To Order
Photo Part No Description Price (each) Stock
LR100959 RETAINER AND SEAL - CRANKSHAFT $210.81 To Order
Photo Part No Description Price (each) Stock
LR052127 Pin - Fastening Enquire To Order
View All

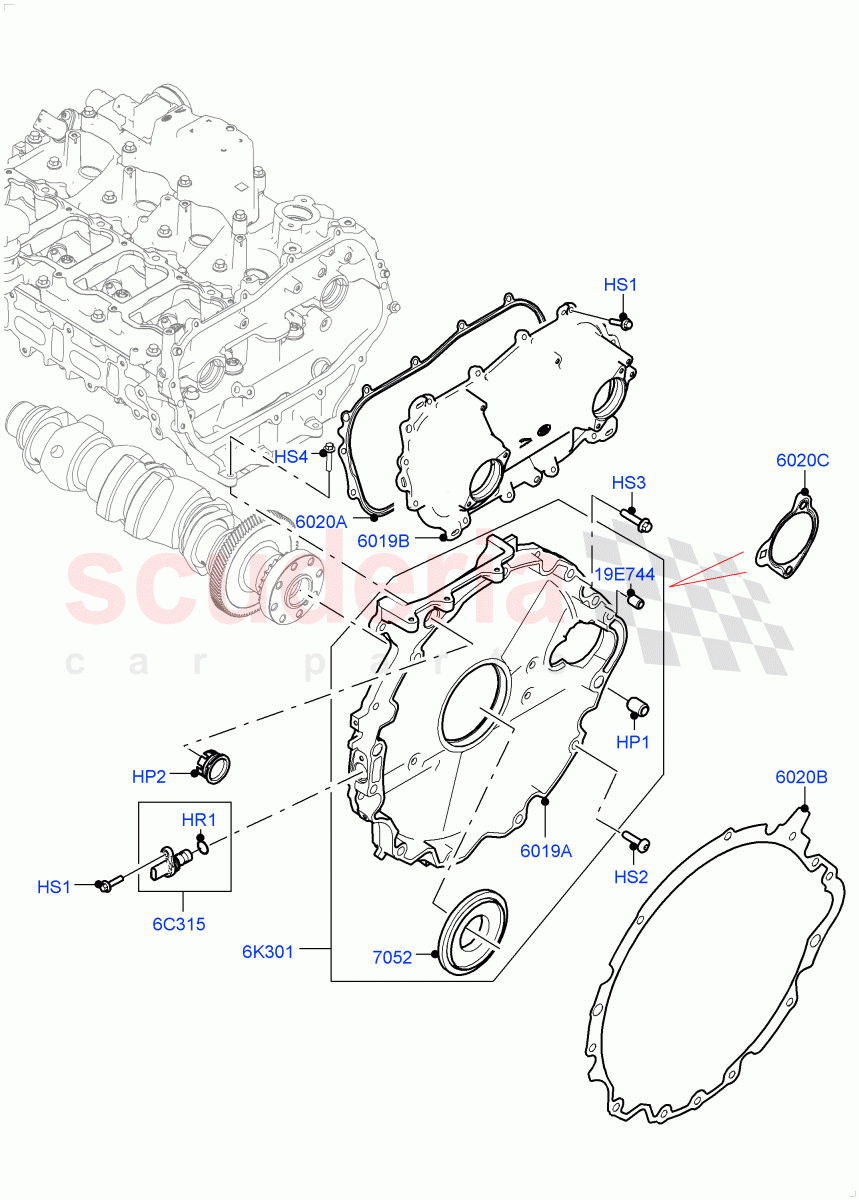

Timing Gear Covers (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HP1 LR073787
PIN - CENTERING
15.7MM, Pin - Dowell / From: JA000001 		$4.15 2
HP2 LR091801
PLUG - BLANKING
Blanking, Includes O'Ring / From: JA000001 / To: KA563070 		$13.55 1
HP2 LR135851
PLUG - ENGINE
Blanking, Includes O'Ring / From: KA563071 / To: LA577179 		$14.77 1
HP2 LR135858
PLUG - ENGINE
Blanking, Includes O'Ring / From: LA577180
IN STOCK 		$6.68 1
HR1 LR095782
O-RING
17.0MM, Crankshaft Position Sensor(CKP) / From: JA000001
IN STOCK 		$4.80 1
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM, Timing Chain Cover / From: JA000001 		$1.31 12
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Crankshaft Position Sensor(CKP), Hexagonal Head, M6 X 25MM / From: JA000001 		$1.31 1
HS2 LR073786
SCREW
M8 X 30MM / From: JA000001 		$2.25 3
HS3 LR073676
SCREW
M8 x 35mm / From: JA000001 		$2.40 9
HS4 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: JA000001
IN STOCK 		$2.63 3
6C315 LR074068
SENSOR - CRANKSHAFT POSITION - CPS
From: JA000001 / To: KA542963 		$127.59 1
6C315 LR126181
SENSOR - CRANKSHAFT POSITION - CPS
From: KA542964 		$148.59 1
6K301 LR100959
RETAINER AND SEAL - CRANKSHAFT
Includes Seal, Lower, Timing Chain Cover / From: JA000001 		$210.81 1
19E744 LR052127
Pin - Fastening 		- 2 Enquire
6019A LR101474
COVER - CYLINDER BLOCK REAR
Lower, Timing Chain Cover / From: JA000001 / To: LA401896 		$136.70 1
6019A LR140519
COVER - CYLINDER BLOCK REAR
Lower, Timing Chain Cover / From: LA401897 		$204.60 1
6019B LR108934
COVER - CYLINDER HEAD
Aluminium, Timing Chain Cover, Upper / From: JA000001 / To: NA472591 		$190.74 1
6019B LR172511
Cover
Composite PA66 GF50, Includes Gasket, Timing Chain Cover, Upper / From: NA472592 		$73.16 1
6020A LR091809
GASKET - COVER
Only Suitable For Aluminium Cover, Timing Chain Cover / From: JA000001 / To: NA472591 		$28.01 1
6020B LR101089
SEAL - TRANSMISSION
Transmission To Engine / From: JA000001 		$67.36 1
6020C LR101090
SEAL - STARTER MOTOR
Starter / From: JA000001 / To: KA567346 		$40.06 1
6020C LR134975
SEAL - STARTER MOTOR
Starter / From: KA567347 		$60.82 1
7052 LR084639
SEAL - CRANKSHAFT OIL - REAR
Crankshaft Oil Seal, Rear / From: JA000001 		$48.91 1
