Intercooler/Air Ducts And Hoses (Main Unit) (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Intercooler/Air Ducts And Hoses (Main Unit) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR092322 BOLT $4.42 To Order
Photo Part No Description Price (each) Stock
RYP501080 BOLT $1.41 To Order
Photo Part No Description Price (each) Stock
LR001080 BOLT $1.37 IN STOCK
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
LR095783 O-RING $4.68 IN STOCK
Photo Part No Description Price (each) Stock
RYP500810 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
VYP500050 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
LR100998 BRACKET - CHARGE AIR COOLER $84.29 To Order
LR137514 BRACKET - CHARGE AIR COOLER $84.29 To Order
Photo Part No Description Price (each) Stock
LR092321 COOLER - ENGINE CHARGE AIR $521.96 To Order
LR139052 COOLER - ENGINE CHARGE AIR $518.58 To Order
Photo Part No Description Price (each) Stock
LR091865 SENSOR - AIR TEMPERATURE & PRESSURE $140.04 To Order
View All

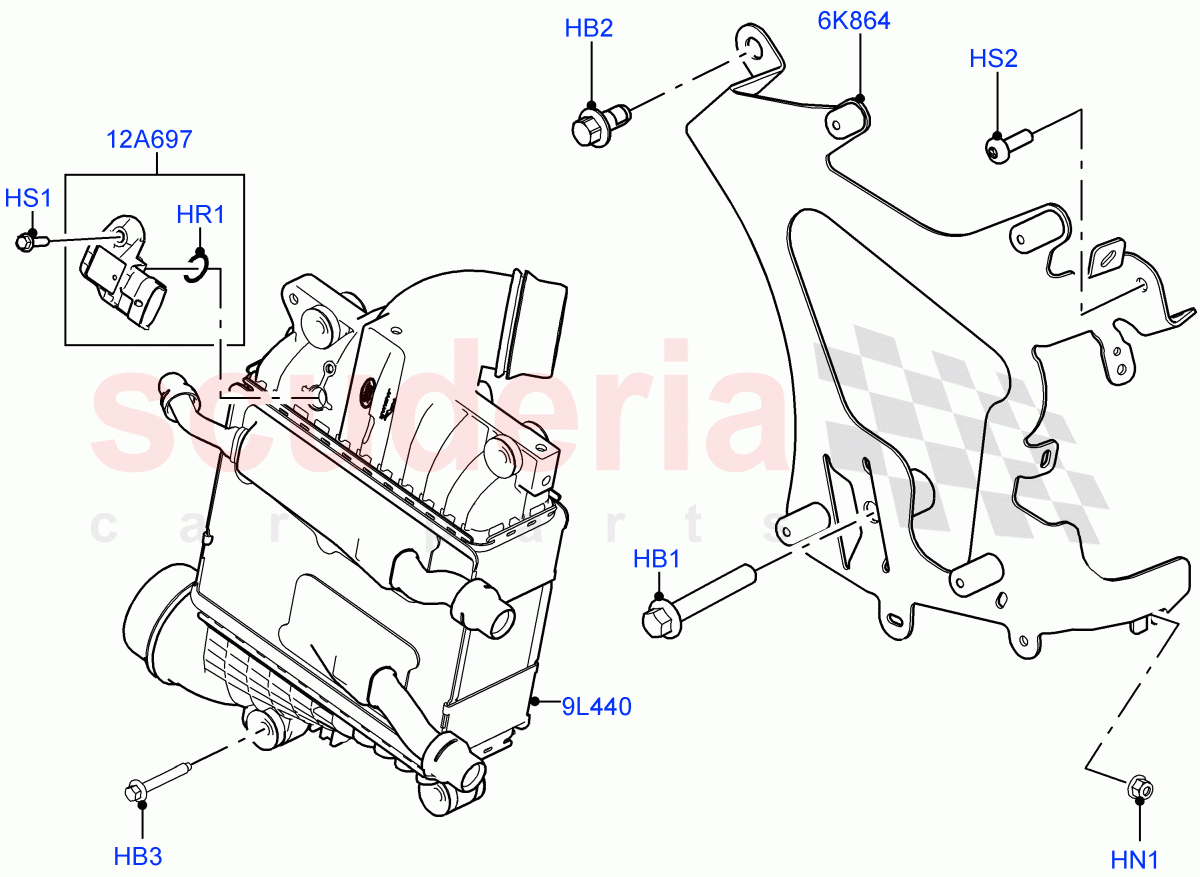

Intercooler/Air Ducts And Hoses (Main Unit) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR092322
BOLT
Bracket, Hexagonal Head, Lower, M12 X 70MM / From: JA000001 		$4.42 1
HB2 RYP501080
BOLT
Bracket, M12 x 25MM, Upper / From: JA000001 		$1.41 1
HB3 LR001080
BOLT
Hexagonal Head, Intercooler, M6 X 40MM / From: JA000001
IN STOCK 		$1.37 4
HN1 FX106046
NUT - FLANGED
Bracket, Hexagonal Head, M6 / From: JA000001
IN STOCK 		$0.60 1
HR1 LR095783
O-RING
7.5MM, With Air Charge Temperature Sensor / From: JA000001
IN STOCK 		$4.68 1
HS1 RYP500810
SCREW
Hexagonal Head, M5 x 20MM, Sensor - Air Charge Temperature / From: JA000001 		$0.63 1
HS2 VYP500050
SCREW
Bracket, M8 X 25MM / From: JA000001 		$0.47 1
6K864 LR100998
BRACKET - CHARGE AIR COOLER
From: JA000001 / To: LA410404 		$84.29 1
6K864 LR137514
BRACKET - CHARGE AIR COOLER
From: LA410405 		$84.29 1
9L440 LR092321
COOLER - ENGINE CHARGE AIR
From: JA000001 / To: LA409691 		$521.96 1
9L440 LR139052
COOLER - ENGINE CHARGE AIR
From: LA409692 		$518.58 1
12A697 LR091865
SENSOR - AIR TEMPERATURE & PRESSURE
From: JA000001 		$140.04 1
