Crankshaft/Pistons And Bearings (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Crankshaft/Pistons And Bearings (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P...

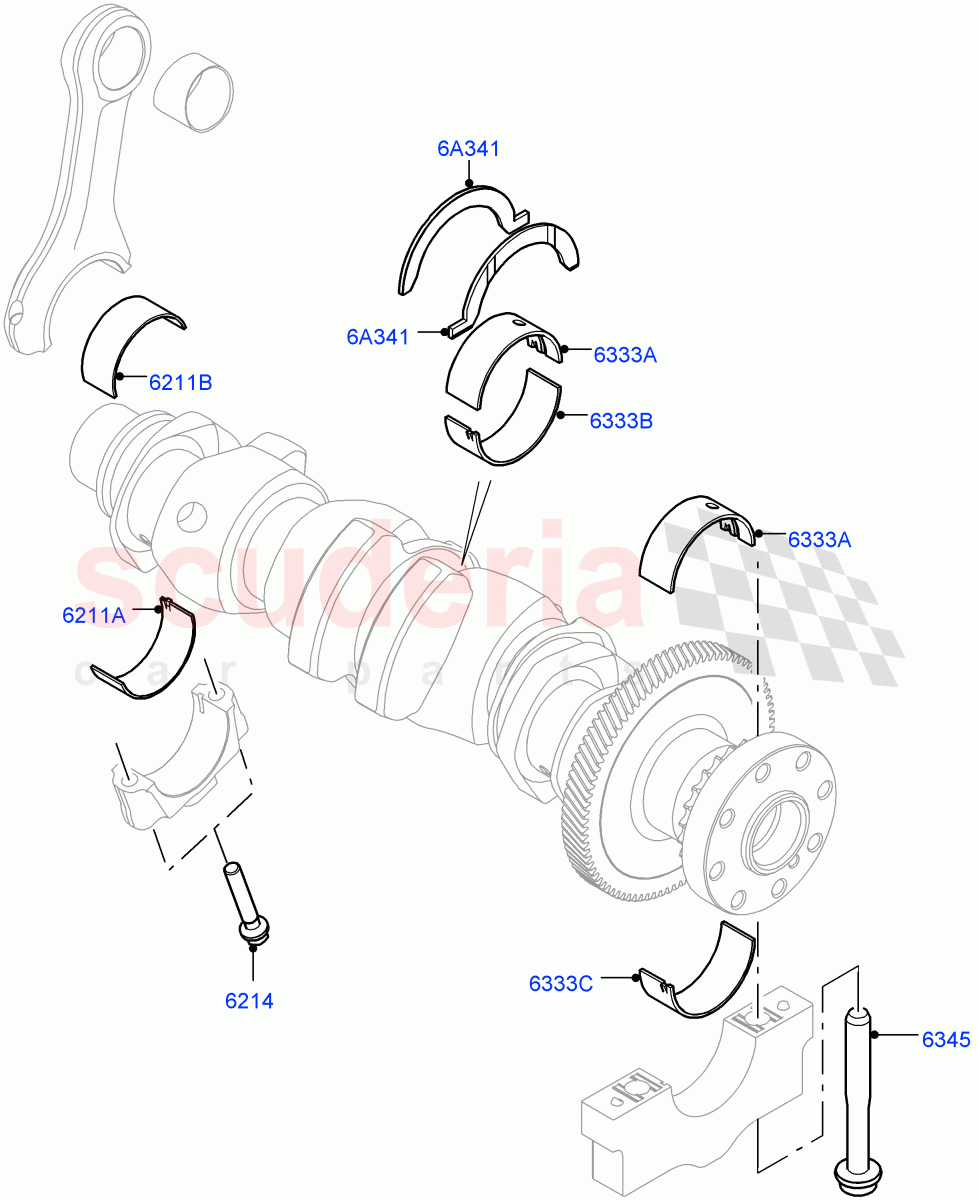

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095876	BOLT - CONNECTING ROD	$5.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083619	BOLT - BEARING CAP - HEX. HEAD	$8.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091836	BEARING - CONNECTING ROD	$19.37	To Order
	LR091837	BEARING - CONNECTING ROD	$19.37	To Order
	LR091838	BEARING - CONNECTING ROD	$19.37	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091839	BEARING - CONNECTING ROD	$19.37	To Order
	LR091840	BEARING - CONNECTING ROD	$19.37	To Order
	LR091841	BEARING - CONNECTING ROD	$19.37	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR100988	BEARING - CRANKSHAFT MAIN	$19.25	To Order
	LR101799	BEARING - CRANKSHAFT MAIN	$14.14	To Order
	LR101800	BEARING - CRANKSHAFT MAIN	$14.14	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR100984	BEARING - CRANKSHAFT MAIN	$19.25	To Order
	LR101790	BEARING - CRANKSHAFT MAIN	$14.14	To Order
	LR101791	BEARING - CRANKSHAFT MAIN	$14.14	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR100986	BEARING - CRANKSHAFT MAIN	$18.71	To Order
	LR101796	BEARING - CRANKSHAFT MAIN	$14.14	To Order
	LR101797	BEARING - CRANKSHAFT MAIN	$14.14	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR074086	WASHER - CRANKSHAFT MAIN BRG THRUST	$10.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6A341	LR074086	WASHER - CRANKSHAFT MAIN BRG THRUST	LR074086 WASHER - CRANKSHAFT MAIN BRG THRUST From: JA000001	$10.20	2
6211A	LR091836	BEARING - CONNECTING ROD	LR091836 BEARING - CONNECTING ROD Lower, Red / From: JA000001 / To: LA409992	$19.37	4
6211A	LR091837	BEARING - CONNECTING ROD	LR091837 BEARING - CONNECTING ROD Lower, Yellow / From: JA000001 / To: LA409992	$19.37	4
6211A	LR091838	BEARING - CONNECTING ROD	LR091838 BEARING - CONNECTING ROD Blue, Lower / From: JA000001 / To: LA409992	$19.37	4
6211A	LR140922	BEARING - CONNECTING ROD	LR140922 BEARING - CONNECTING ROD Lower, Red / From: LA409993	$18.79	4
6211A	LR140924	BEARING - CONNECTING ROD	LR140924 BEARING - CONNECTING ROD Lower, Yellow / From: LA409993	$18.79	4
6211A	LR140925	BEARING - CONNECTING ROD	LR140925 BEARING - CONNECTING ROD Blue, Lower / From: LA409993	$18.79	4
6211B	LR091839	BEARING - CONNECTING ROD	LR091839 BEARING - CONNECTING ROD Red, Upper / From: JA000001 / To: LA409992	$19.37	4
6211B	LR091840	BEARING - CONNECTING ROD	LR091840 BEARING - CONNECTING ROD Upper, Yellow / From: JA000001 / To: LA409992	$19.37	4
6211B	LR091841	BEARING - CONNECTING ROD	LR091841 BEARING - CONNECTING ROD Blue, Upper / From: JA000001 / To: LA409992	$19.37	4
6211B	LR140926	BEARING - CONNECTING ROD	LR140926 BEARING - CONNECTING ROD Red, Upper / From: LA409993	$18.79	4
6211B	LR140927	BEARING - CONNECTING ROD	LR140927 BEARING - CONNECTING ROD Upper, Yellow / From: LA409993	$16.63	4
6211B	LR140929	BEARING - CONNECTING ROD	LR140929 BEARING - CONNECTING ROD Blue, Upper / From: LA409993	$18.79	4
6214	LR095876	BOLT - CONNECTING ROD	LR095876 BOLT - CONNECTING ROD From: JA000001	$5.33	8
6333A	LR100988	BEARING - CRANKSHAFT MAIN	LR100988 BEARING - CRANKSHAFT MAIN Orange, Upper / From: JA000001	$19.25	5
6333A	LR101799	BEARING - CRANKSHAFT MAIN	LR101799 BEARING - CRANKSHAFT MAIN Black, Upper / From: JA000001	$14.14	5
6333A	LR101800	BEARING - CRANKSHAFT MAIN	LR101800 BEARING - CRANKSHAFT MAIN Purple, Upper / From: JA000001	$14.14	5
6333A	LR101801	BEARING - CRANKSHAFT MAIN	LR101801 BEARING - CRANKSHAFT MAIN Brown, Upper / From: JA000001	$14.14	5
6333B	LR100984	BEARING - CRANKSHAFT MAIN	LR100984 BEARING - CRANKSHAFT MAIN Lower, Orange / From: JA000001	$19.25	4
6333B	LR101790	BEARING - CRANKSHAFT MAIN	LR101790 BEARING - CRANKSHAFT MAIN Black, Lower / From: JA000001	$14.14	4
6333B	LR101791	BEARING - CRANKSHAFT MAIN	LR101791 BEARING - CRANKSHAFT MAIN Lower, Purple / From: JA000001	$14.14	4
6333B	LR101792	BEARING - CRANKSHAFT MAIN	LR101792 BEARING - CRANKSHAFT MAIN Brown, Lower / From: JA000001	$14.14	4
6333C	LR100986	BEARING - CRANKSHAFT MAIN	LR100986 BEARING - CRANKSHAFT MAIN Engine Rear, Lower, Orange / From: JA000001	$18.71	1
6333C	LR101796	BEARING - CRANKSHAFT MAIN	LR101796 BEARING - CRANKSHAFT MAIN Black, Engine Rear, Lower / From: JA000001	$14.14	1
6333C	LR101797	BEARING - CRANKSHAFT MAIN	LR101797 BEARING - CRANKSHAFT MAIN Engine Rear, Lower, Purple / From: JA000001	$14.14	1
6333C	LR101798	BEARING - CRANKSHAFT MAIN	LR101798 BEARING - CRANKSHAFT MAIN Brown, Engine Rear, Lower / From: JA000001	$14.14	1
6345	LR083619	BOLT - BEARING CAP - HEX. HEAD	LR083619 BOLT - BEARING CAP - HEX. HEAD From: JA000001	$8.88	10

Crankshaft/Pistons And Bearings (Solihull Plant Build) (2.0L I4 High Dohc Aj200 Petrol, 2.0L Aj200P...

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Crankshaft/Pistons And Bearings (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P...

Add to Shopping Cart
