Front Panels, Aprons & Side Members (Wheelhouse)

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Front Panels, Aprons & Side Members (Wheelhouse)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500290 BOLT - HEX.HEAD $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR033697 CLIP - PUSH ON STEEL $1.43 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.62 IN STOCK
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.09 IN STOCK
Photo Part No Description Price (each) Stock

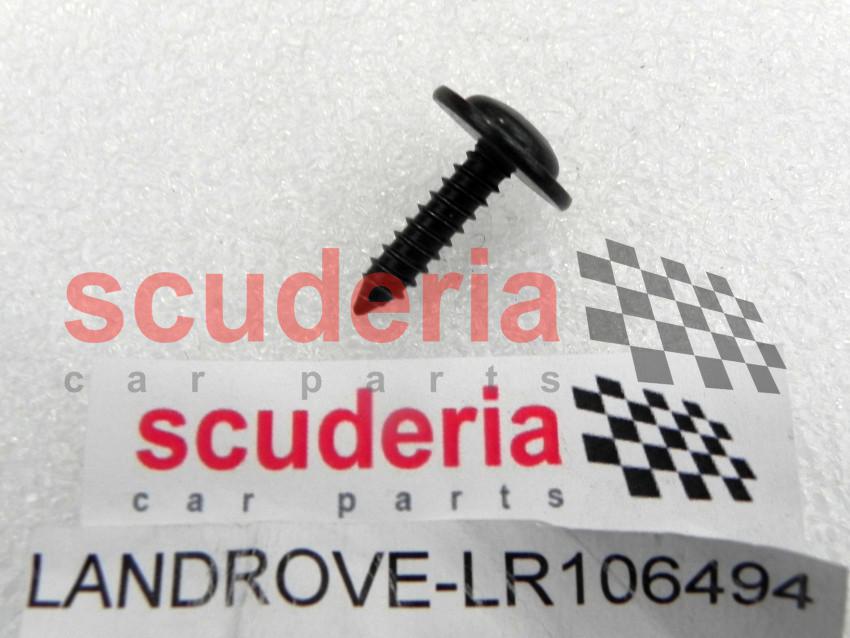

LR106494 SCREW $2.24 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.95 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.50 IN STOCK
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.50 IN STOCK
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.50 IN STOCK
Photo Part No Description Price (each) Stock
LR092643 SHIELD - SPLASH - WHEELHOUSE $83.26 To Order
LR092644 SHIELD - SPLASH - WHEELHOUSE $83.89 To Order
LR142088 SHIELD - SPLASH - WHEELHOUSE $170.42 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR106296 REINFORCEMENT - REAR FLOOR PAN $159.46 To Order
LR142878 REINFORCEMENT - REAR FLOOR PAN $159.46 To Order
Photo Part No Description Price (each) Stock
LR092679 SHIELD - FLOOR $174.35 To Order
LR142967 DEFLECTOR - AIR $81.24 To Order
LR142968 DEFLECTOR - AIR $72.38 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR092680 DEFLECTOR - AIR $25.94 To Order
LR092681 DEFLECTOR - AIR $27.25 To Order
LR126247 DEFLECTOR - AIR $27.42 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR092677 SHIELD - UNDERBODY - SIDE SILL $234.42 To Order
LR092678 SHIELD - UNDERBODY - SIDE SILL $234.42 To Order
LR154395 SHIELD - UNDERBODY - SIDE SILL $223.80 To Order
...and 4 more part variants. See table on right for more details.
View All
Front Panels, Aprons & Side Members (Wheelhouse) of Land Rover Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<101C06 LR106296
REINFORCEMENT - REAR FLOOR PAN
2.0L I4 DSL MID DOHC AJ200 		$159.46 1
<101C06 LR142878
REINFORCEMENT - REAR FLOOR PAN
3.0L AJ20D6 Diesel High / From: MA000001 		$159.46 1
<442A68 LR092677
SHIELD - UNDERBODY - SIDE SILL
RH / To: LA999999 		$234.42 1
<442A68 LR092678
SHIELD - UNDERBODY - SIDE SILL
LH / To: LA999999 		$234.42 1
<442A68 LR154395
SHIELD - UNDERBODY - SIDE SILL
RH / From: MA000001 		$223.80 1
<442A68 LR154396
SHIELD - UNDERBODY - SIDE SILL
3.0L AJ20D6 Diesel High / LH / From: MA000001 / To: MA301115 		$234.42 1
<442A68 LR142973
SHIELD - UNDERBODY - SIDE SILL
2.0L AJ200P Hi PHEV / LH / From: MA000001 / To: MA297687 		$170.43 1
<442A68 LR154396
SHIELD - UNDERBODY - SIDE SILL
3.0L AJ20P6 Petrol High / LH / From: MA301116 		$234.42 1
<442A68 LR154911
SHIELD - UNDERBODY - SIDE SILL
2.0L AJ200P Hi PHEV / LH / From: MA297688 		$234.42 1
<11778A LR092679
SHIELD - FLOOR
2.0L I4 DSL MID DOHC AJ200 / To: LA999999 		$174.35 1
<11778A LR142967
DEFLECTOR - AIR
2.0L AJ200P Hi PHEV / From: MA000001 / To: MA324825 		$81.24 1
<11778A LR142968
DEFLECTOR - AIR
2.0L I4 Mid DOHC AJ200 Petrol / From: MA000001 / To: MA324825 		$72.38 1
<11778A LR159194
DEFLECTOR - AIR
2.0L I4 Mid DOHC AJ200 Petrol / From: MA324826 		$219.60 1
<11778A LR159191
DEFLECTOR - AIR
2.0L AJ200P Hi PHEV / From: MA324826 		$219.60 1
<11778B LR092680
DEFLECTOR - AIR
RH / To: KA218828 		$25.94 1
<11778B LR092681
DEFLECTOR - AIR
LH / To: KA218828 		$27.25 1
<11778B LR126247
DEFLECTOR - AIR
RH / From: KA218829 		$27.42 1
<11778B LR126248
DEFLECTOR - AIR
LH / From: KA218829 		$27.25 1
<28370 LR092643
SHIELD - SPLASH - WHEELHOUSE
RH / To: JA746723 		$83.26 1
<28370 LR092644
SHIELD - SPLASH - WHEELHOUSE
LH / To: JA746723 		$83.89 1
<28370 LR142088
SHIELD - SPLASH - WHEELHOUSE
RH / From: JA746724 / To: LA270589 		$170.42 1
<28370 LR108973
SHIELD - SPLASH - WHEELHOUSE
LH / From: JA746724 / To: LA270589 		$99.95 1
<28370 LR138389
SHIELD - SPLASH - WHEELHOUSE
RH / From: LA270590 / To: LA270677 		$175.54 1
<28370 LR138390
SHIELD - SPLASH - WHEELHOUSE
LH / From: LA270590 / To: LA270677 		$182.43 1
<28370 LR142088
SHIELD - SPLASH - WHEELHOUSE
RH / From: LA270678 		$170.42 1
<28370 LR142090
SHIELD - SPLASH - WHEELHOUSE
LH / From: LA270678 		$175.77 1
HB1 RYG500290
BOLT - HEX.HEAD
Hexagonal Head, M8 x 30MM
IN STOCK 		$0.52 4
HC1 LR033697
CLIP - PUSH ON STEEL
M6 		$1.43 4
HN1 LR000053
NUT - FLANGED
M6
IN STOCK 		$1.62 2
HN2 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer, Splash Shield
IN STOCK 		$3.09 4
HS1 LR106494
SCREW
M5 x 20MM, Self Tapping
IN STOCK 		$2.24 4
HS2 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM, Shield
IN STOCK 		$0.95 4
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin, Wheelhouse
IN STOCK 		$1.50 4
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Air Deflector Support, Push Pin
IN STOCK 		$1.50 6
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin, Shield
IN STOCK 		$1.50 16
