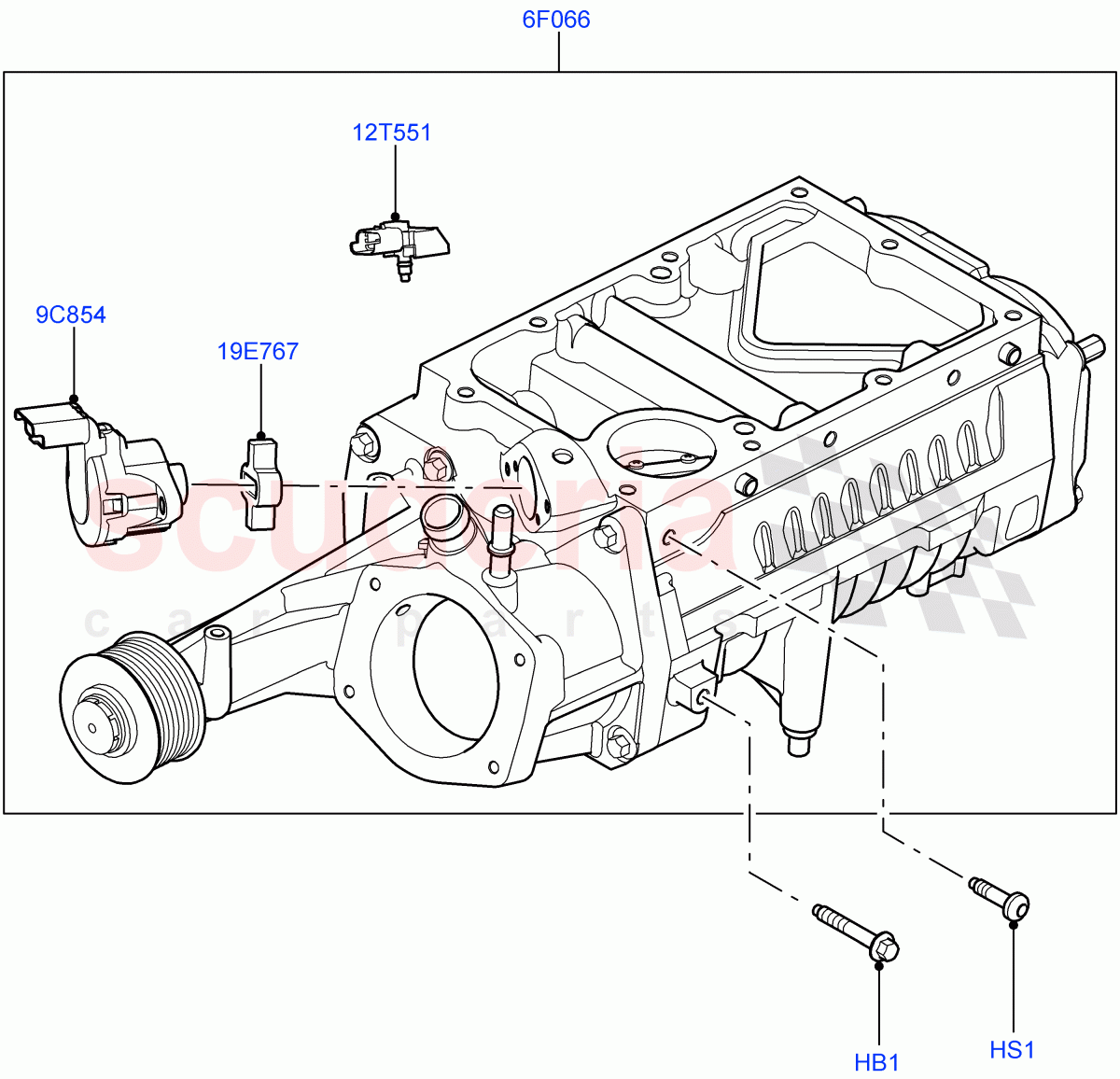

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	$3.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR100572	SUPERCHARGER	$2,624.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087235	ACTUATOR - SUPERCHARGER BYPASS	$355.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$139.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066147	COUPLING - BYPASS ACTUATOR	$24.47	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4567977	BOLT IN STOCK	4567977 BOLT M8 X 50, Manifold To Supercharger / From: KA000001 IN STOCK	$3.92	2
HS1	LR010917	SCREW IN STOCK	LR010917 SCREW M8 x 30MM, Manifold To Supercharger / From: KA000001 IN STOCK	$1.16	6
6F066	LR100572	SUPERCHARGER	LR100572 SUPERCHARGER From: KA000001	$2,624.43	1
9C854	LR087235	ACTUATOR - SUPERCHARGER BYPASS	LR087235 ACTUATOR - SUPERCHARGER BYPASS Electric / From: KA000001	$355.44	1
12T551	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR087236 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: KA000001	$139.92	1
19E767	LR066147	COUPLING - BYPASS ACTUATOR	LR066147 COUPLING - BYPASS ACTUATOR Supercharger Bypass Solenoid / From: KA000001	$24.47	1
