Name: Cooling System Pipes And Hoses (5.0L P AJ133 DOHC CDA S/C Enhanced, With Extra Engine Cooling System) ((V) FROMKA000001)
Rating: 4.7 (1 reviews)

Cooling System Pipes And Hoses (5.0L P AJ133 DOHC CDA S/C Enhanced, With Extra Engine Cooling System) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Cooling System Pipes And Hoses (5.0L P AJ133 DOHC CDA S/C Enhanced, With Extra Engine Cooling...

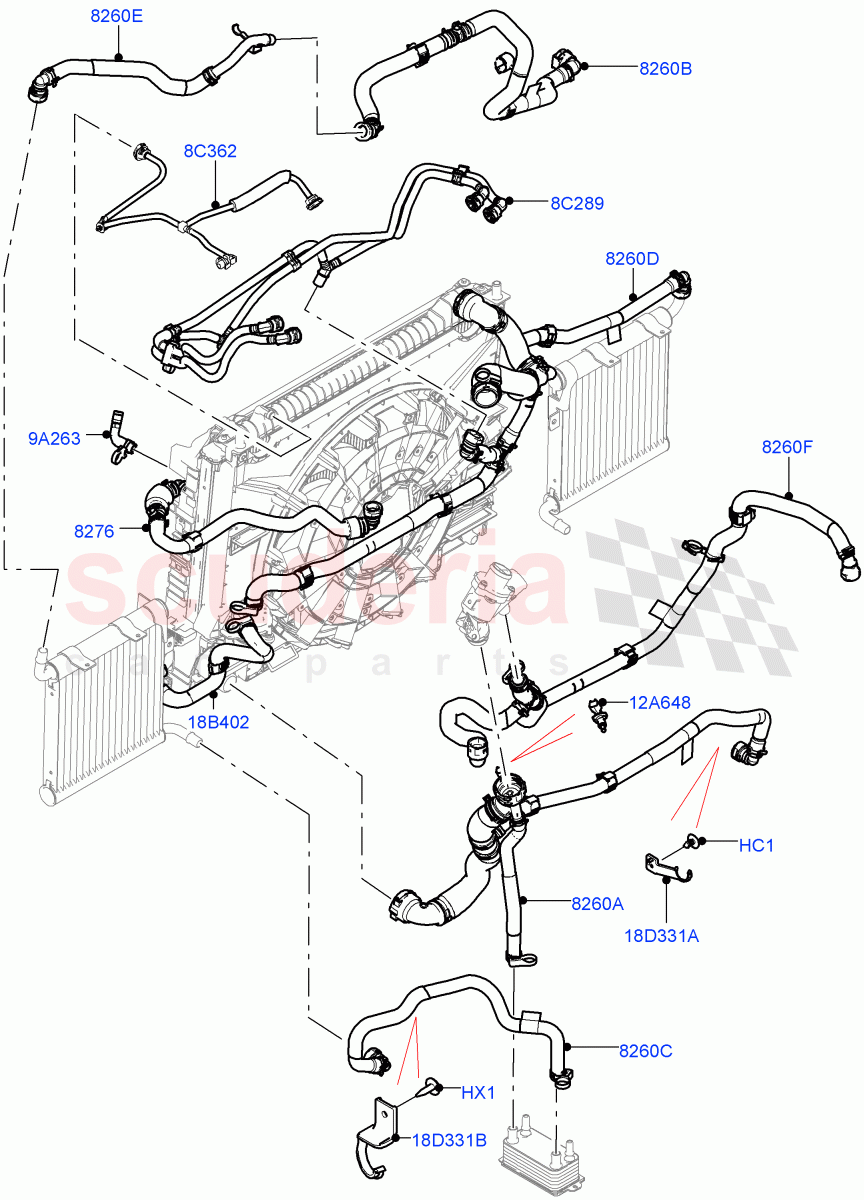

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2985	CLIP	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR091825	HOSE - WATER	$88.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113369	HOSE - RADIATOR	$167.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116937	HOSE - COOLING SYSTEM	$70.35	To Order
	LR135628	HOSE - COOLING SYSTEM	$70.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116940	HOSE - COOLING SYSTEM	$54.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116962	HOSE - RADIATOR	$141.45	To Order
	LR137561	HOSE - RADIATOR	$142.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093989	HOSE - WATER	$65.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116938	HOSE - WATER	$126.95	To Order
	LR135629	HOSE - WATER	$126.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091810	HOSE - RADIATOR	$102.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091813	HOSE - RADIATOR VENTILATION	$35.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091900	HOSE - RADIATOR VENTILATION	$60.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$49.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091793	HOSE - TURBOCHARGER TO INTERCOOLER	$49.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112656	BRACKET - COOLING HOSE	$21.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141291	BRACKET	$4.35	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	BTR2985	CLIP IN STOCK	BTR2985 CLIP 6.5 x 6, Push Pin / From: KA000001 IN STOCK	$1.16	1
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Bracket, Push Pin / From: KA000001 IN STOCK	$1.50	1
8C289	LR091810	HOSE - RADIATOR	LR091810 HOSE - RADIATOR Intercooler / From: KA000001	$102.20	1
8C362	LR091813	HOSE - RADIATOR VENTILATION	LR091813 HOSE - RADIATOR VENTILATION To Expansion Tank / From: KA000001	$35.51	1
9A263	LR091900	HOSE - RADIATOR VENTILATION	LR091900 HOSE - RADIATOR VENTILATION With Bleed Hose / From: KA000001	$60.95	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: KA000001	$49.04	1
18B402	LR091793	HOSE - TURBOCHARGER TO INTERCOOLER	LR091793 HOSE - TURBOCHARGER TO INTERCOOLER Inlet, Water Pump / From: KA000001	$49.43	1
18D331A	LR112656	BRACKET - COOLING HOSE	LR112656 BRACKET - COOLING HOSE From: KA000001	$21.42	1
18D331B	LR141291	BRACKET	LR141291 BRACKET From: KA000001	$4.35	1
8260A	LR113369	HOSE - RADIATOR	LR113369 HOSE - RADIATOR Lower, Radiator / From: KA000001	$167.37	1
8260B	LR116937	HOSE - COOLING SYSTEM	LR116937 HOSE - COOLING SYSTEM From: KA000001 / To: LA275137	$70.35	1
8260B	LR135628	HOSE - COOLING SYSTEM	LR135628 HOSE - COOLING SYSTEM From: LA275138	$70.35	1
8260C	LR116940	HOSE - COOLING SYSTEM	LR116940 HOSE - COOLING SYSTEM From Transmission Oil Cooler To Radiator / From: KA000001	$54.75	1
8260D	LR116962	HOSE - RADIATOR	LR116962 HOSE - RADIATOR Top / From: KA000001 / To: LA253110	$141.45	1
8260D	LR137561	HOSE - RADIATOR	LR137561 HOSE - RADIATOR Top / From: LA253111	$142.42	1
8260E	LR093989	HOSE - WATER	LR093989 HOSE - WATER LH, Auxiliary, Feed, Radiator / From: KA000001	$65.02	1
8260F	LR116938	HOSE - WATER	LR116938 HOSE - WATER Water Pump / From: KA000001 / To: LA275137	$126.95	1
8260F	LR135629	HOSE - WATER	LR135629 HOSE - WATER Water Pump / From: LA275138	$126.95	1
8276	LR091825	HOSE - WATER	LR091825 HOSE - WATER Intercooler Outlet / From: KA000001	$88.61	1

Cooling System Pipes And Hoses (5.0L P Aj133 Dohc Cda S/C Enhanced, With Extra Engine Cooling...

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Cooling System Pipes And Hoses (5.0L P AJ133 DOHC CDA S/C Enhanced, With Extra Engine Cooling...

Add to Shopping Cart
