Name: Gear Change-Automatic Transmission (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD)
Rating: 4.5 (1 reviews)

View All

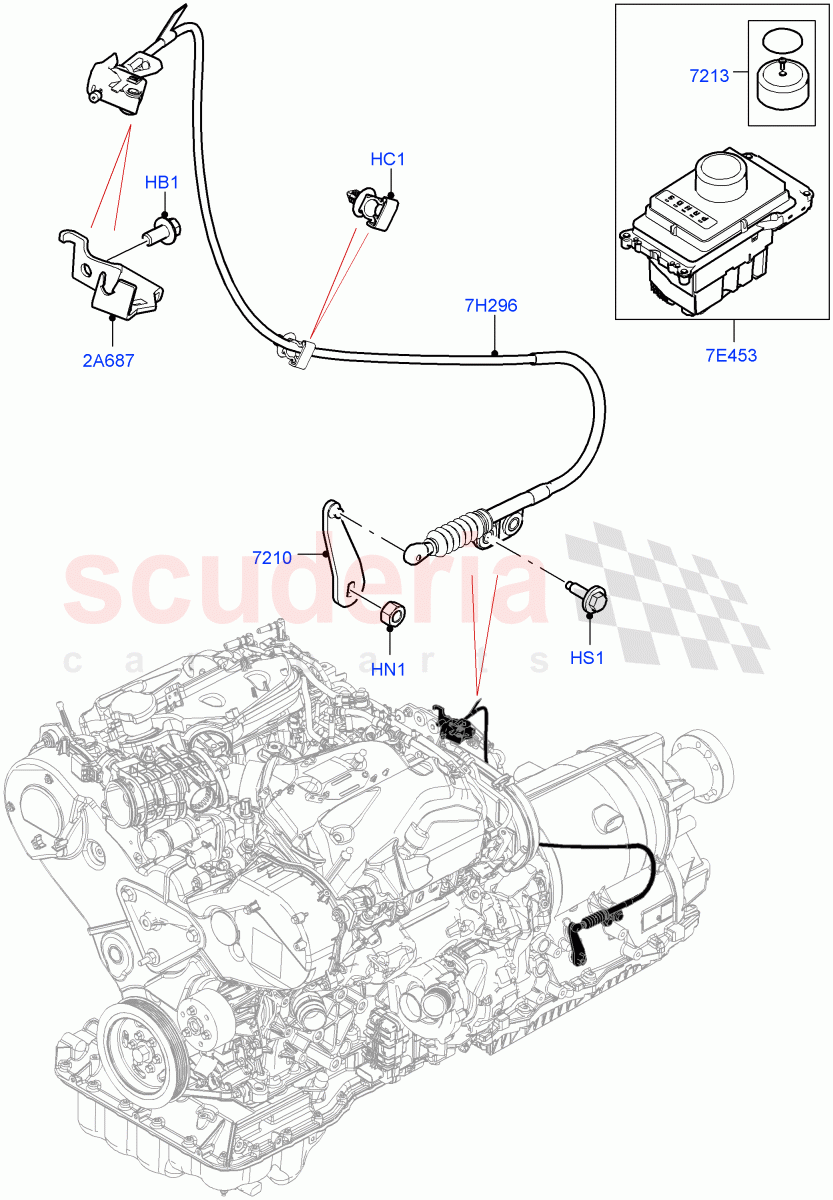

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYH500020	NUT - HEX.	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092831	LEVER - GEAR SHIFT	$27.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093842	KNOB - GEAR CHANGE LEVER	$194.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093965	BRACKET - CABLE SUPPORT	$7.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090982	MODULE - TRANSFER SHIFT CONTROL	$501.57	To Order
	LR117071	MODULE - TRANSFER SHIFT CONTROL	$524.42	To Order
	LR117070	MODULE - TRANSFER SHIFT CONTROL	$506.46	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092832	CABLE - SELECTOR LEVER CONTROL	$187.47	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM IN STOCK	$0.68	1
HC1	LR011519	CLIP IN STOCK	LR011519 CLIP 9.5 X 6 X 2, Linkage, Single IN STOCK	$2.07	1
HN1	VYH500020	NUT - HEX. IN STOCK	VYH500020 NUT - HEX. M8 x 1.0MM IN STOCK	$1.32	1
HS1	RYG501590	SCREW IN STOCK	RYG501590 SCREW Hexagonal Head, M6 X 20MM, To Transmission IN STOCK	$1.00	2
2A687	LR093965	BRACKET - CABLE SUPPORT	LR093965 BRACKET - CABLE SUPPORT	$7.54	1
7E453	LR090982	MODULE - TRANSFER SHIFT CONTROL	LR090982 MODULE - TRANSFER SHIFT CONTROL LHD / To: JA768059	$501.57	1
7E453	LR117071	MODULE - TRANSFER SHIFT CONTROL	LR117071 MODULE - TRANSFER SHIFT CONTROL RHD / To: JA768059	$524.42	1
7E453	LR117070	MODULE - TRANSFER SHIFT CONTROL	LR117070 MODULE - TRANSFER SHIFT CONTROL LHD / From: JA768060 / To: LA999999	$506.46	1
7E453	LR117071	MODULE - TRANSFER SHIFT CONTROL	LR117071 MODULE - TRANSFER SHIFT CONTROL RHD / From: JA768060 / To: LA999999	$524.42	1
7H296	LR092832	CABLE - SELECTOR LEVER CONTROL	LR092832 CABLE - SELECTOR LEVER CONTROL	$187.47	1
7210	LR092831	LEVER - GEAR SHIFT	LR092831 LEVER - GEAR SHIFT	$27.86	1
7213	LR093842	KNOB - GEAR CHANGE LEVER	LR093842 KNOB - GEAR CHANGE LEVER To: LA999999	$194.67	1

Gear Change-Automatic Transmission (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans Zf 8Hp70 4Wd)

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]
