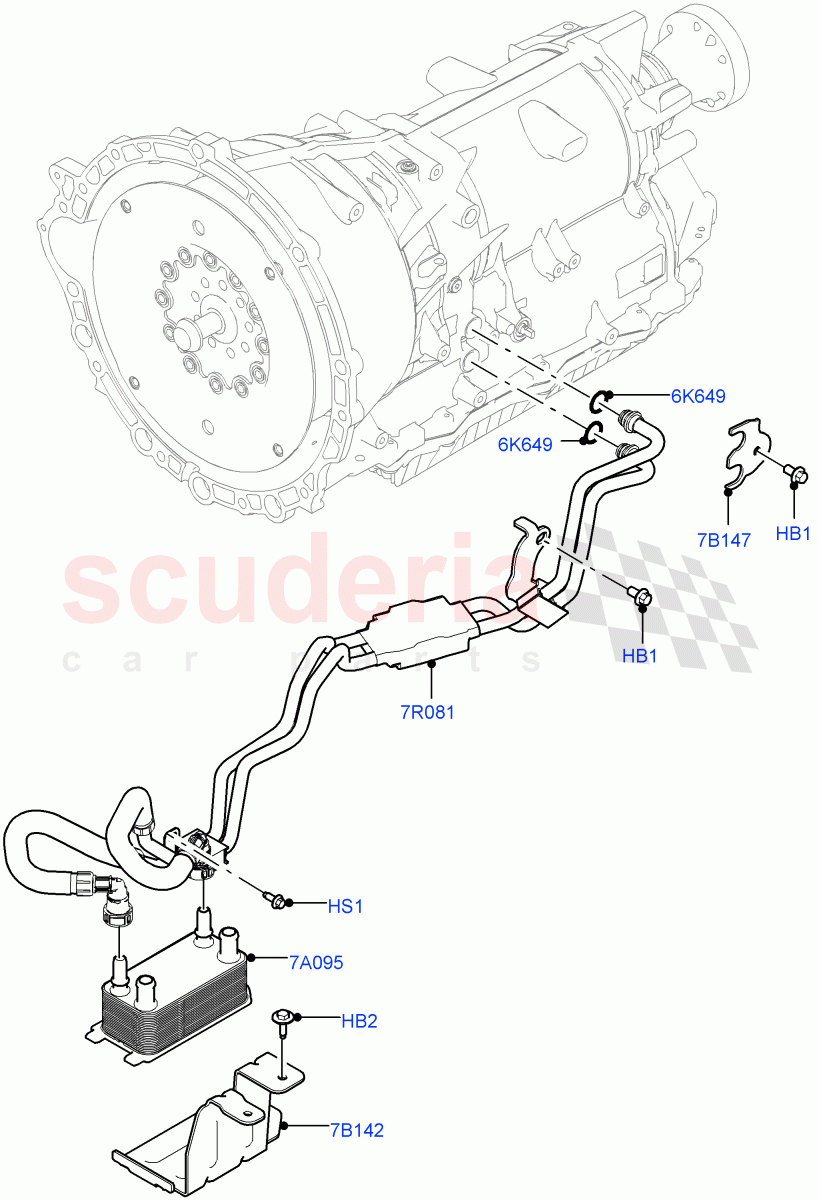

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR141748	BOLT	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049457	O-RING	$3.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036354	OIL COOLER	$246.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092823	BRACKET - OIL COOLER	$21.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092826	BRACKET - OIL HOSES	$12.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141633	TUBE - OIL COOLER	$210.83	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM, To Transmission / From: MA000001 IN STOCK	$0.68	1
HB2	LR141748	BOLT	LR141748 BOLT Bracket, M6 X 25MM / From: MA000001	$0.57	3
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM, Oil Cooler Hose / From: MA000001	$0.63	1
6K649	LR049457	O-RING	LR049457 O-RING	$3.29	2
7A095	LR036354	OIL COOLER	LR036354 OIL COOLER From: MA000001	$246.08	1
7B142	LR092823	BRACKET - OIL COOLER	LR092823 BRACKET - OIL COOLER Oil Cooler / From: MA000001	$21.28	1
7B147	LR092826	BRACKET - OIL HOSES	LR092826 BRACKET - OIL HOSES Oil Cooler Hose / From: MA000001	$12.91	1
7R081	LR141633	TUBE - OIL COOLER	LR141633 TUBE - OIL COOLER From: MA000001	$210.83	1
