Name: Timing Gear (Solihull Plant Build, Auxiliary Drive) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)
Rating: 5.0 (1 reviews)

View All

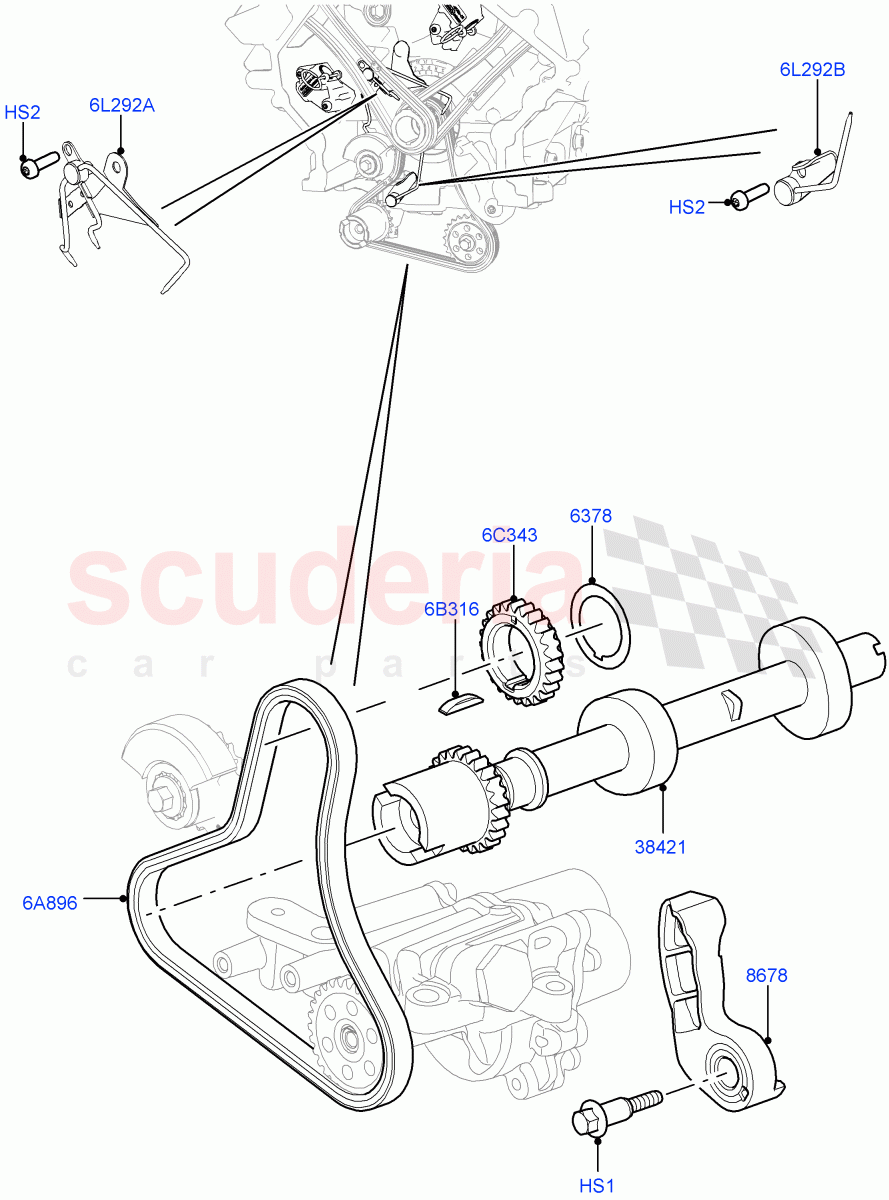

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011522	SCREW	$2.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010696	WASHER - CRANKSHAFT SPROCKET	$27.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052911	TENSIONER - DRIVE CHAIN	$27.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067417	SHAFT - FUEL PUMP DRIVE	$289.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032087	CHAIN - AUXILIARY DRIVE	$52.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010691	KEY - WOODRUFF	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072611	SPROCKET - CRANKSHAFT	$56.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041774	JET - CHAIN LUBRICATING	$78.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059161	JET - CHAIN LUBRICATING	$18.95	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011522	SCREW IN STOCK	LR011522 SCREW Auxiliary Drive, M8 X 45MM, Tensioner IN STOCK	$2.89	1
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Washer Nozzle	$1.24	2
6A896	LR032087	CHAIN - AUXILIARY DRIVE IN STOCK	LR032087 CHAIN - AUXILIARY DRIVE IN STOCK	$52.46	1
6B316	LR010691	KEY - WOODRUFF	LR010691 KEY - WOODRUFF	$3.05	1
6C343	LR072611	SPROCKET - CRANKSHAFT	LR072611 SPROCKET - CRANKSHAFT Auxiliary Drive, Crankshaft	$56.15	1
6L292A	LR041774	JET - CHAIN LUBRICATING	LR041774 JET - CHAIN LUBRICATING Chain Lubricating, Upper	$78.11	1
6L292B	LR059161	JET - CHAIN LUBRICATING IN STOCK	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower IN STOCK	$18.95	1
6378	LR010696	WASHER - CRANKSHAFT SPROCKET	LR010696 WASHER - CRANKSHAFT SPROCKET Crankshaft, Sprocket - Drive	$27.49	1
8678	LR052911	TENSIONER - DRIVE CHAIN	LR052911 TENSIONER - DRIVE CHAIN Auxiliary Drive Chain	$27.61	1
38421	LR067417	SHAFT - FUEL PUMP DRIVE	LR067417 SHAFT - FUEL PUMP DRIVE With Sprocket	$289.67	1

Timing Gear (Solihull Plant Build, Auxiliary Drive) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromea000001)

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]
