Find Your Part

View All

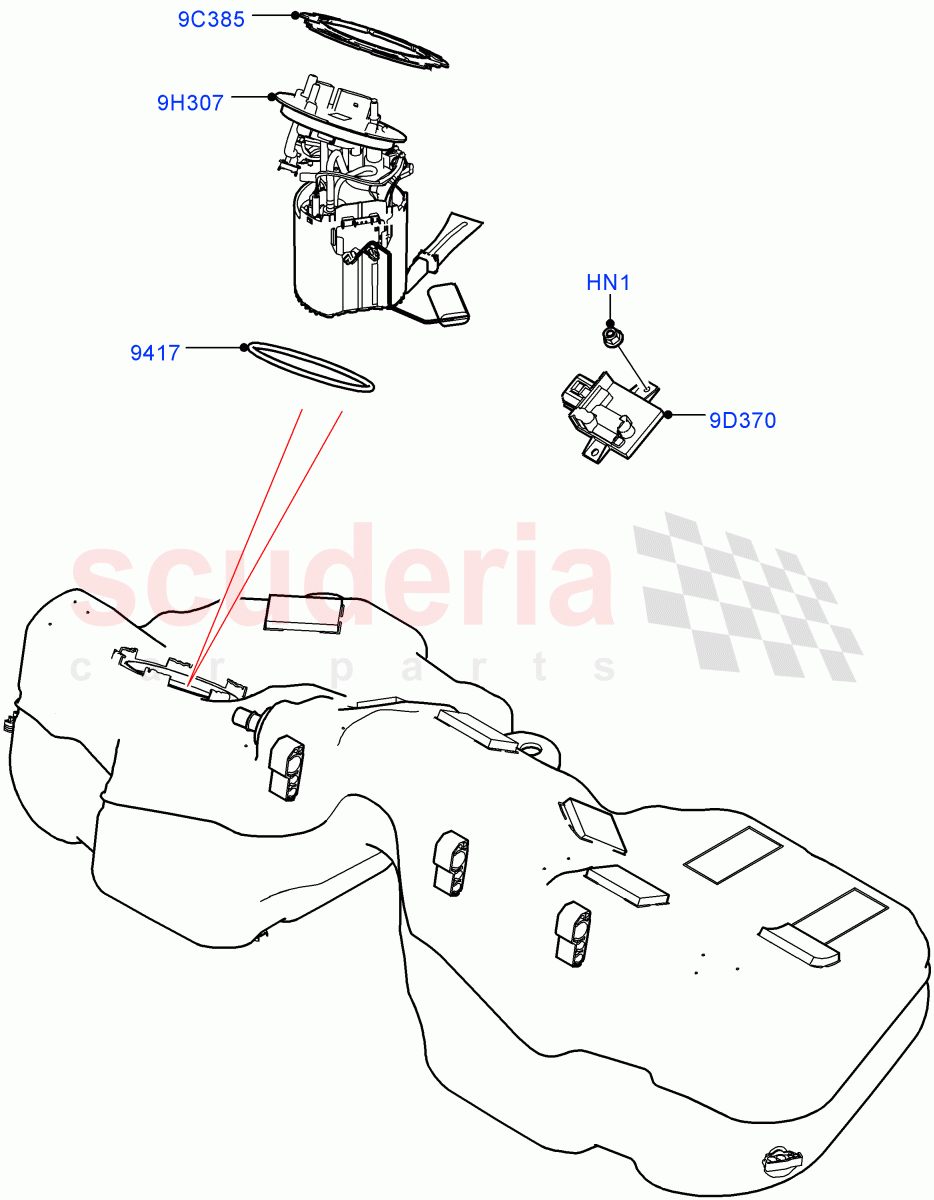

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082729	RING - RETAINING	$27.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097220	CONTROL - FUEL PUMP DRIVE	$209.03	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$0.68	2
9C385	LR082729	RING - RETAINING	LR082729 RING - RETAINING	$27.05	1
9D370	LR097220	CONTROL - FUEL PUMP DRIVE	LR097220 CONTROL - FUEL PUMP DRIVE To: JA999999	$209.03	1
9H307	LR103447	SENDER AND PUMP	LR103447 SENDER AND PUMP Pet Tank W/O Leak Det - Std Filter	$534.56	1
9H307	LR103446	SENDER AND PUMP	LR103446 SENDER AND PUMP Petrol Tank With Leak Detection	$473.50	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring IN STOCK	$10.56	1
