Name: Front Seat Belts
Rating: 4.9 (1 reviews)

Front Seat Belts of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Front Seat Belts

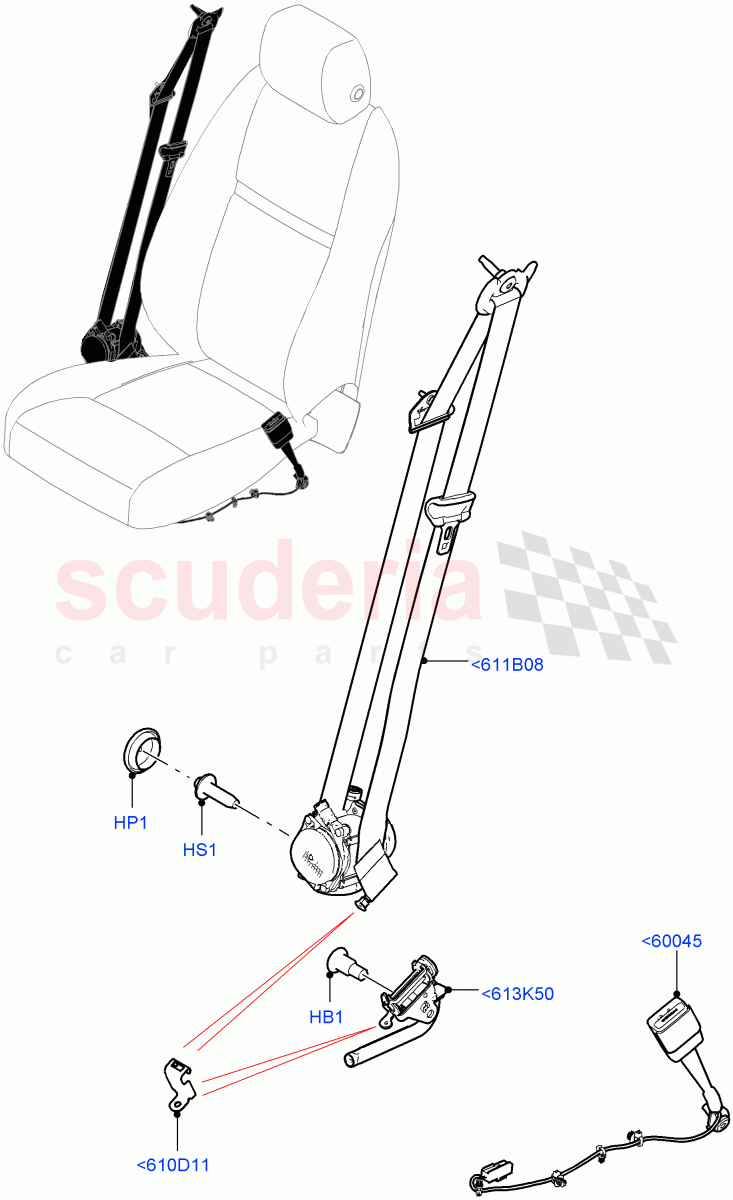

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR080344	BOLT	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004149	PLUG - BLANKING	$3.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067428	SCREW	$2.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092507	BUCKLE - SEAT BELT	$89.19	To Order
	LR092506	BUCKLE - SEAT BELT	$120.97	To Order
	LR092506	BUCKLE - SEAT BELT	$120.97	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092516	PRETENSIONER BRACKET - SEAT BELT	$12.02	To Order
	LR092516	PRETENSIONER BRACKET - SEAT BELT	$12.02	To Order
	LR144124	PRETENSIONER BRACKET - SEAT BELT	$11.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092508	SEAT BELT AND RETRACTOR	$236.92	To Order
	LR092510	SEAT BELT AND RETRACTOR	$236.92	To Order
	LR092511	SEAT BELT AND RETRACTOR	$236.92	To Order

...and 12 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092515	PRETENSIONER - SEAT BELT	$280.76	To Order
	LR092514	PRETENSIONER - SEAT BELT	$280.76	To Order
	LR144122	PRETENSIONER - SEAT BELT	$271.15	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<610D11	LR092516	PRETENSIONER BRACKET - SEAT BELT	LR092516 PRETENSIONER BRACKET - SEAT BELT Seatbelt Pyrotechnic Lap Pret. RHD / To: LA999999	$12.02	1
<610D11	LR092516	PRETENSIONER BRACKET - SEAT BELT	LR092516 PRETENSIONER BRACKET - SEAT BELT Seatbelt Lock Retraction-Automatic / To: LA999999	$12.02	2
<610D11	LR144124	PRETENSIONER BRACKET - SEAT BELT	LR144124 PRETENSIONER BRACKET - SEAT BELT Seatbelt - Standard EU / From: MA000001	$11.74	1
<611B08	LR092508	SEAT BELT AND RETRACTOR	LR092508 SEAT BELT AND RETRACTOR Seatbelt Pyrotechnic Lap Pret. LHD / RH / To: LA999999	$236.92	1
<611B08	LR092510	SEAT BELT AND RETRACTOR	LR092510 SEAT BELT AND RETRACTOR Seatbelt Lock Retraction-Automatic / RH / To: LA999999	$236.92	1
<611B08	LR092511	SEAT BELT AND RETRACTOR	LR092511 SEAT BELT AND RETRACTOR Seatbelt Pyrotechnic Lap Pret. RHD / RH / To: LA999999	$236.92	1
<611B08	LR092512	SEAT BELT AND RETRACTOR	LR092512 SEAT BELT AND RETRACTOR Seatbelt Pyrotechnic Lap Pret. RHD / LH / To: LA999999	$236.92	1
<611B08	LR122798	SEAT BELT	LR122798 SEAT BELT 5.0L P AJ133 DOHC CDA S/C Enhanced, Seatbelt Lock Retraction-Automatic / LH / From: KA000001 / To: LA253089	$230.08	1
<611B08	LR092513	SEAT BELT AND RETRACTOR	LR092513 SEAT BELT AND RETRACTOR 2.0L I4 DSL HIGH DOHC AJ200, Seatbelt Lock Retraction-Automatic / LH / From: KA000001 / To: LA999999	$236.92	1
<611B08	LR092513	SEAT BELT AND RETRACTOR	LR092513 SEAT BELT AND RETRACTOR Seatbelt Lock Retraction-Automatic / LH / From: JA000001 / To: JA999999	$236.92	1
<611B08	LR092513	SEAT BELT AND RETRACTOR	LR092513 SEAT BELT AND RETRACTOR Seatbelt Pyrotechnic Lap Pret. LHD / LH / From: JA000001 / To: LA999999	$236.92	1
<611B08	LR139485	SEAT BELT AND RETRACTOR	LR139485 SEAT BELT AND RETRACTOR 5.0L P AJ133 DOHC CDA S/C Enhanced, Seatbelt Lock Retraction-Automatic / LH / From: LA253090	$355.60	1
<611B08	LR144094	SEAT BELT AND RETRACTOR	LR144094 SEAT BELT AND RETRACTOR RHD, Seatbelt - Standard EU / RH / From: MA000001	$247.15	1
<611B08	LR144093	SEAT BELT AND RETRACTOR	LR144093 SEAT BELT AND RETRACTOR Seatbelt Lock Retraction-Automatic / RH / From: MA000001	$247.15	1
<611B08	LR144096	SEAT BELT AND RETRACTOR	LR144096 SEAT BELT AND RETRACTOR Seatbelt Pyrotechnic Lap Pret. RHD / LH / From: MA000001	$248.87	1
<611B08	LR144097	SEAT BELT AND RETRACTOR	LR144097 SEAT BELT AND RETRACTOR Seatbelt Pyrotechnic Lap Pret. LHD / LH / From: MA000001	$248.87	1
<611B08	LR144092	SEAT BELT AND RETRACTOR	LR144092 SEAT BELT AND RETRACTOR StBlt ELR Without Rear Pretensioner / RH / From: MA000001	$248.87	1
<611B08	LR150026	SEAT BELT AND RETRACTOR	LR150026 SEAT BELT AND RETRACTOR 3.0L AJ20P6 Petrol High, Seatbelt Lock Retraction-Automatic / LH / From: MA000001	$248.87	1
<613K50	LR092515	PRETENSIONER - SEAT BELT	LR092515 PRETENSIONER - SEAT BELT Seatbelt Pyrotechnic Lap Pret. LHD / LH / To: LA999999	$280.76	1
<613K50	LR092514	PRETENSIONER - SEAT BELT	LR092514 PRETENSIONER - SEAT BELT Seatbelt Pyrotechnic Lap Pret. RHD / RH / To: LA999999	$280.76	1
<613K50	LR144122	PRETENSIONER - SEAT BELT	LR144122 PRETENSIONER - SEAT BELT RHD, Seatbelt - Standard EU / RH / From: MA000001	$271.15	1
<613K50	LR144123	PRETENSIONER - SEAT BELT	LR144123 PRETENSIONER - SEAT BELT Seatbelt Lock Retraction-Automatic / LH / From: MA000001	$294.99	1
<60045	LR092507	BUCKLE - SEAT BELT	LR092507 BUCKLE - SEAT BELT Seatbelt Lock Retraction-Automatic / RH / To: LA999999	$89.19	1
<60045	LR092506	BUCKLE - SEAT BELT	LR092506 BUCKLE - SEAT BELT Seatbelt Pyrotechnic Lap Pret. RHD / Driver And Passenger Seat / To: LA999999	$120.97	2
<60045	LR092506	BUCKLE - SEAT BELT	LR092506 BUCKLE - SEAT BELT Seatbelt Lock Retraction-Automatic / LH / To: LA999999	$120.97	1
<60045	LR144120	BUCKLE - SEAT BELT	LR144120 BUCKLE - SEAT BELT Driver And Passenger Seat / From: MA000001	$124.60	2
HB1	LR080344	BOLT	LR080344 BOLT M10 X 28MM	$1.53	2
HP1	LR004149	PLUG - BLANKING	LR004149 PLUG - BLANKING 30 X 1MM, Rubber	$3.11	2
HS1	LR067428	SCREW IN STOCK	LR067428 SCREW M10 x 32MM IN STOCK	$2.39	2
