Heater Hoses (3.0 V6 D Gen2 Twin Turbo, Fuel Heater W/Pk Heat With Remote)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Heater Hoses (3.0 V6 D Gen2 Twin Turbo, Fuel Heater W/Pk Heat With Remote)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106166 SCREW $1.22 IN STOCK
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.53 IN STOCK
Photo Part No Description Price (each) Stock
LR091452 HOSE - HEATER WATER $159.22 To Order
Photo Part No Description Price (each) Stock
LR091437 TUBE - FUEL FEED $324.50 To Order
Photo Part No Description Price (each) Stock
LR093748 TUBE - HEATER WATER $129.52 To Order
Photo Part No Description Price (each) Stock
LR091405 TUBE - HEATER WATER $168.13 To Order
Photo Part No Description Price (each) Stock
LR091432 TUBE - HEATER WATER $95.89 To Order
Photo Part No Description Price (each) Stock
LR141291 BRACKET $4.36 To Order
View All

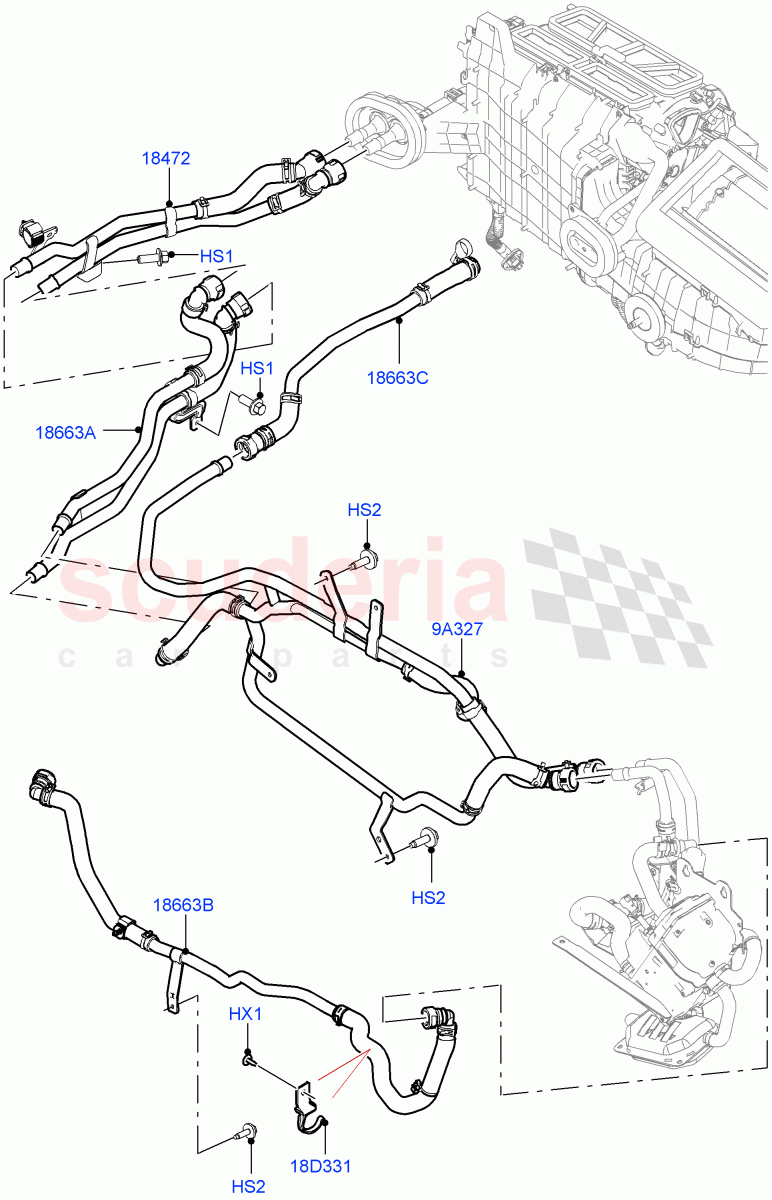

Heater Hoses (3.0 V6 D Gen2 Twin Turbo, Fuel Heater W/Pk Heat With Remote) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.22 4
HS2 RYG501590
SCREW
Hexagonal Head, M6 X 20MM 		$1.01 5
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
Less Immersion Heater / 6.3 X 22MM, Bracket, Push Pin
IN STOCK 		$1.53 1
9A327 LR091437
TUBE - FUEL FEED 		$324.50 1
18D331 LR141291
BRACKET
Less Immersion Heater 		$4.36 1
18472 LR091452
HOSE - HEATER WATER 		$159.22 1
18663A LR093748
TUBE - HEATER WATER 		$129.52 1
18663B LR091405
TUBE - HEATER WATER 		$168.13 1
18663C LR091432
TUBE - HEATER WATER 		$95.89 1
