Hybrid Electrical Modules (Mhev Charging Cables And Fixings) (Electric Engine Battery-Mhev) ((V)...

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYH500540 NUT - SPECIAL $1.24 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
LR146089 CABLE - TRUNK $475.25 To Order
LR166046 CABLE - TRUNK $339.95 To Order
Photo Part No Description Price (each) Stock
LR146087 CABLE - UNDERBODY $335.01 To Order
LR146088 CABLE - UNDERBODY $324.84 To Order
LR166044 CABLE - UNDERBODY $345.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR146084 LINK $316.44 To Order
LR146086 LINK $316.44 To Order
LR166040 LINK $287.89 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR146085 LINK $403.05 To Order
LR166041 LINK $411.26 To Order
Photo Part No Description Price (each) Stock
LR146104 BRACKET - WIRING $39.32 To Order
Photo Part No Description Price (each) Stock
LR146169 BRACKET - WIRING $39.32 To Order
Photo Part No Description Price (each) Stock
LR146125 BRACKET - WIRING $39.90 To Order
Photo Part No Description Price (each) Stock
LR141383 BRACKET - RELAY MOUNTING $39.32 To Order
Photo Part No Description Price (each) Stock
LR118069 JUNCTION BOX $612.76 To Order
Photo Part No Description Price (each) Stock
LR129338 JUNCTION BOX $621.31 To Order
View All

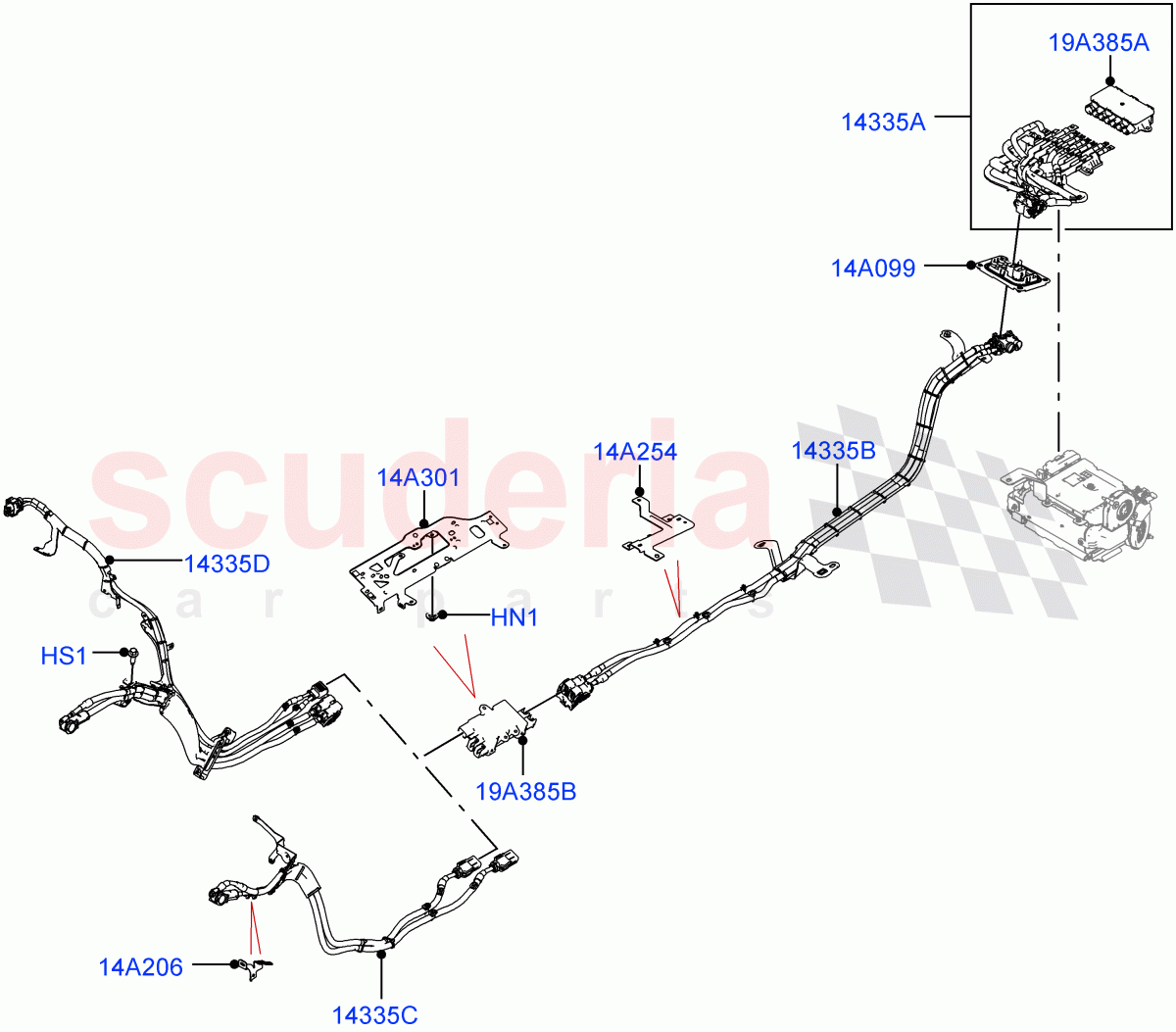

Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 RYH500540
NUT - SPECIAL
M6 / From: MA000001 		$1.24 2
HS1 RYG500190
SCREW
3.0L AJ20P6 Petrol High / Hexagonal Head, M6 X 16MM / From: MA000001
IN STOCK 		$0.73 6
14A099 LR146104
BRACKET - WIRING
From: MA000001 		$39.32 1
14A206 LR146169
BRACKET - WIRING
2.0L AJ21D4 Diesel Mid / From: MA000001 		$39.32 1
14A254 LR146125
BRACKET - WIRING
From: MA000001 		$39.90 1
14A301 LR141383
BRACKET - RELAY MOUNTING
Housing To Case, Junction Box / From: MA000001 		$39.32 1
19A385A LR118069
JUNCTION BOX
From: MA000001 		$612.76 1
19A385B LR129338
JUNCTION BOX
3.0L AJ20P6 Petrol High / From: MA000001 		$621.31 1
14335A LR146089
CABLE - TRUNK
Harnes - Battery to Converter / From: MA000001 / To: MA999999 		$475.25 1
14335A LR166046
CABLE - TRUNK
Harnes - Battery to Converter / From: NA000001 		$339.95 1
14335B LR146087
CABLE - UNDERBODY
3.0L AJ20D6 Diesel High / Battery To Junction Box / From: MA000001 / To: MA999999 		$335.01 1
14335B LR146088
CABLE - UNDERBODY
3.0L AJ20P6 Petrol High / Battery To Junction Box / From: MA000001 / To: MA999999 		$324.84 1
14335B LR166044
CABLE - UNDERBODY
3.0L AJ20D6 Diesel High / Battery To Junction Box / From: NA000001 		$345.46 1
14335B LR166045
CABLE - UNDERBODY
3.0L AJ20P6 Petrol High / Battery To Junction Box / From: NA000001 		$350.45 1
14335C LR146084
LINK
2.0L AJ21D4 Diesel Mid / Junction Box To Alternator / From: MA000001 / To: MA999999 		$316.44 1
14335C LR146086
LINK
3.0L AJ20D6 Diesel High / Junction Box To Alternator / From: MA000001 / To: MA999999 		$316.44 1
14335C LR166040
LINK
2.0L AJ21D4 Diesel Mid / Junction Box To Alternator / From: NA000001 		$287.89 1
14335C LR166042
LINK
3.0L AJ20D6 Diesel High / Junction Box To Alternator / From: NA000001 		$246.76 1
14335D LR146085
LINK
3.0L AJ20P6 Petrol High / Junction Box To Alternator / From: MA000001 / To: MA999999 		$403.05 1
14335D LR166041
LINK
3.0L AJ20P6 Petrol High / Junction Box To Alternator / From: NA000001 		$411.26 1
