Find Your Part

View All

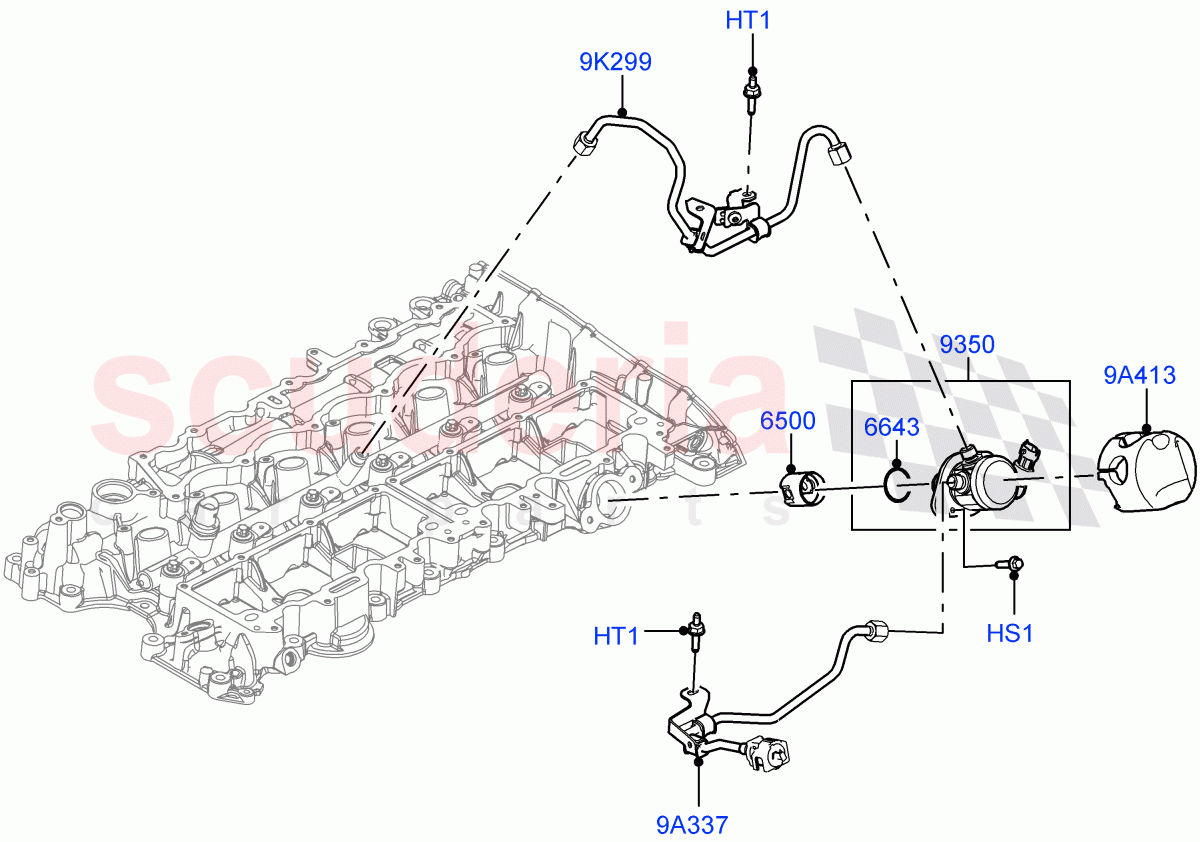

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR128483	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	$3.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121798	TAPPET	$23.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010861	O-RING	$11.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121766	PUMP - FUEL	$587.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121771	PIPE - FUEL	$63.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121765	ACOUSTIC COVER - FUEL PUMP	$14.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121770	PIPE - FUEL	$39.10	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR128483	SCREW	LR128483 SCREW Fuel Pump / From: MA000001	$0.73	2
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm / From: MA000001	$3.99	3
9A337	LR121771	PIPE - FUEL	LR121771 PIPE - FUEL Fuel Pump / From: MA000001	$63.66	1
9A413	LR121765	ACOUSTIC COVER - FUEL PUMP	LR121765 ACOUSTIC COVER - FUEL PUMP Insulator / From: MA000001	$14.13	1
9K299	LR121770	PIPE - FUEL	LR121770 PIPE - FUEL To Fuel Rail / From: MA000001	$39.10	1
6500	LR121798	TAPPET	LR121798 TAPPET For Fuel Pump / From: MA000001	$23.57	1
6643	LR010861	O-RING IN STOCK	LR010861 O-RING 31MM X 2MM, Fuel Pump / From: MA000001 IN STOCK	$11.64	1
9350	LR121766	PUMP - FUEL	LR121766 PUMP - FUEL From: MA000001	$587.01	1
