Name: Rear Exhaust System (3.0L AJ20P6 Petrol High, Dual Exh Olet W/Squa TL Pipe Steel) ((V) FROMMA000001)
Rating: 4.7 (1 reviews)

View All

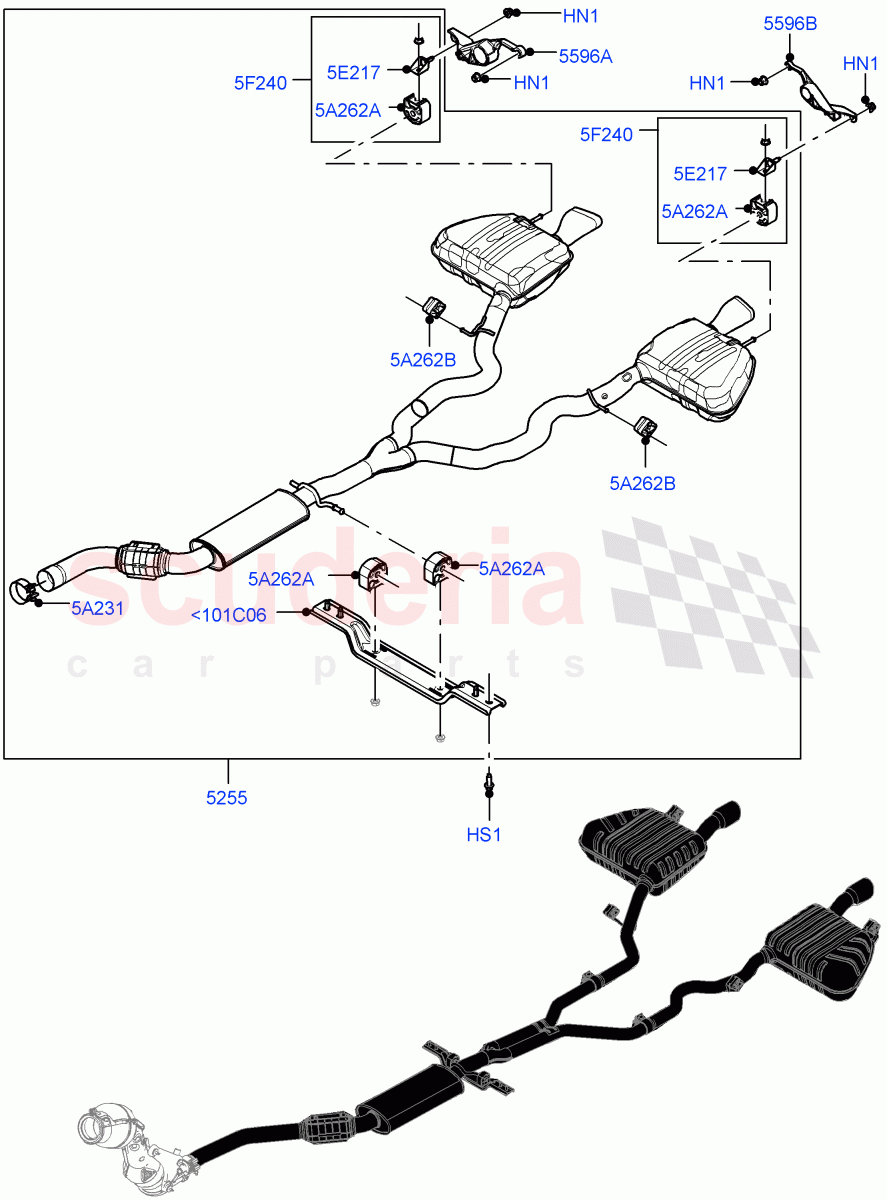

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155857	MUFFLER - REAR	$1,362.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141559	BRACKET - EXHAUST PIPE MOUNTING	$31.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141554	BRACKET - EXHAUST PIPE MOUNTING	$31.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125187	CLAMP	$32.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141866	BRACKET - EXHAUST PIPE MOUNTING	$9.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141885	KIT - EXHAUST PIPE CONNECTOR	$26.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100224	INSULATOR - RUBBER	$32.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$24.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148149	REINFORCEMENT - REAR FLOOR PAN	$118.56	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<101C06	LR148149	REINFORCEMENT - REAR FLOOR PAN	LR148149 REINFORCEMENT - REAR FLOOR PAN From: MA000001	$118.56	1
HN1	FY108046	NUT M8 FLANGED HEX HEAD IN STOCK	FY108046 NUT M8 FLANGED HEX HEAD M8 / From: MA000001 IN STOCK	$1.12	4
HS1	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER M8 x 24MM, To Body / From: MA000001	$1.39	4
5A231	LR125187	CLAMP	LR125187 CLAMP 75MM, Front / From: MA000001	$32.78	1
5A262A	LR100224	INSULATOR - RUBBER	LR100224 INSULATOR - RUBBER From: MA000001	$32.70	4
5A262B	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: MA000001	$24.15	2
5E217	LR141866	BRACKET - EXHAUST PIPE MOUNTING	LR141866 BRACKET - EXHAUST PIPE MOUNTING Lower, RH/LH / From: MA000001	$9.76	2
5F240	LR141885	KIT - EXHAUST PIPE CONNECTOR	LR141885 KIT - EXHAUST PIPE CONNECTOR Kit, RH/LH / From: MA000001	$26.15	2
5255	LR155857	MUFFLER - REAR	LR155857 MUFFLER - REAR Complete Assembly / From: MA000001	$1,362.03	1
5596A	LR141559	BRACKET - EXHAUST PIPE MOUNTING	LR141559 BRACKET - EXHAUST PIPE MOUNTING RH Upper / From: MA000001	$31.47	1
5596B	LR141554	BRACKET - EXHAUST PIPE MOUNTING	LR141554 BRACKET - EXHAUST PIPE MOUNTING LH Upper / From: MA000001	$31.47	1

Rear Exhaust System (3.0L Aj20P6 Petrol High, Dual Exh Olet W/Squa Tl Pipe Steel) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]
