Name: Oil Pan/Oil Level Indicator (3.0L AJ20P6 Petrol High) ((V) FROMMA000001)
Rating: 4.7 (1 reviews)

View All

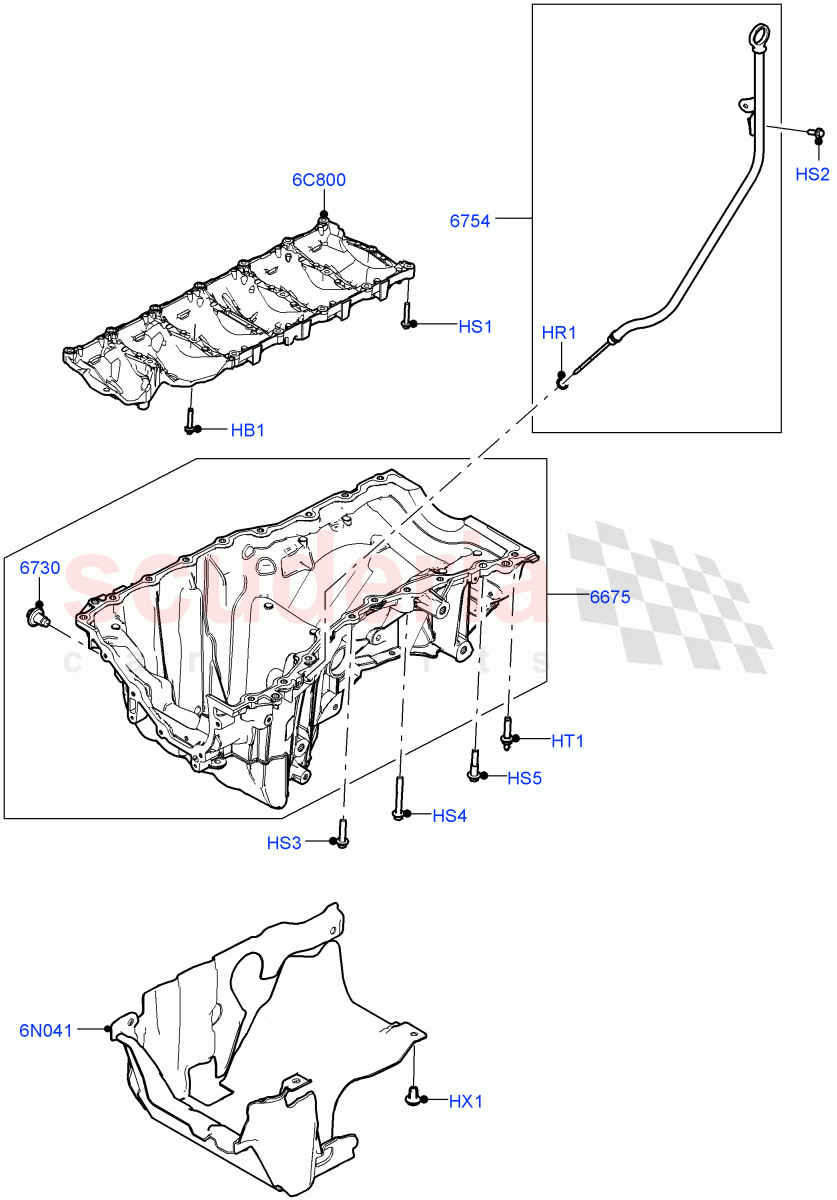

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR133629	BOLT	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$5.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074137	SCREW	$1.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089234	STUD	$5.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149603	PAN - ENGINE OIL	$864.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	$8.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141424	TUBE - OIL LEVEL INDICATOR	$50.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132045	TRAY - OIL	$274.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141273	INSULATOR - OIL SUMP	$46.60	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR133629	BOLT	LR133629 BOLT M6 x 35MM, Middle, Windage Tray / From: MA000001	$1.45	5
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator / From: MA000001	$5.17	1
HS1	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: MA000001	$2.29	12
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Oil Level Indicator / From: MA000001	$2.31	1
HS3	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: MA000001	$2.35	9
HS4	LR074137	SCREW	LR074137 SCREW M8 x 60mm / From: MA000001	$1.95	2
HS5	LR073677	SCREW	LR073677 SCREW M8 x 42mm / From: MA000001	$3.44	2
HT1	LR089234	STUD	LR089234 STUD M8 X 35 + M6 X 12 / From: MA000001	$5.08	6
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator / From: MA000001	$3.04	5
6C800	LR132045	TRAY - OIL	LR132045 TRAY - OIL From: MA000001	$274.58	1
6N041	LR141273	INSULATOR - OIL SUMP	LR141273 INSULATOR - OIL SUMP Oil Pan / From: MA000001	$46.60	1
6675	LR149603	PAN - ENGINE OIL	LR149603 PAN - ENGINE OIL From: MA000001	$864.73	1
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN M14 X 21 / From: MA000001	$8.34	1
6754	LR141424	TUBE - OIL LEVEL INDICATOR	LR141424 TUBE - OIL LEVEL INDICATOR From: MA000001	$50.57	1

Oil Pan/Oil Level Indicator (3.0L Aj20P6 Petrol High) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]
