Air Conditioning Condensr/Compressr (Front) (3.0 V6 D Gen2 Twin Turbo)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Air Conditioning Condensr/Compressr (Front) (3.0 V6 D Gen2 Twin Turbo)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005074 BOLT $1.15 To Order
Photo Part No Description Price (each) Stock
RYG500290 BOLT - HEX.HEAD $0.52 IN STOCK
Photo Part No Description Price (each) Stock
FN106042 NUT $1.02 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.31 To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING $3.30 To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.91 To Order
Photo Part No Description Price (each) Stock
LR054870 O-RING $3.52 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.95 IN STOCK
Photo Part No Description Price (each) Stock
RYG501590 SCREW $0.99 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.44 IN STOCK
Photo Part No Description Price (each) Stock
LR092450 CONDENSER $569.63 To Order
LR114353 CONDENSER $539.85 To Order
Photo Part No Description Price (each) Stock
LR091477 HOSE - AIR CONDITIONING $169.13 To Order
Photo Part No Description Price (each) Stock
LR091468 TUBE- A/C EVAPORATOR INLET & OUTLET $375.33 To Order
LR091466 TUBE- A/C EVAPORATOR INLET & OUTLET $332.10 To Order
LR091465 TUBE- A/C EVAPORATOR INLET & OUTLET $291.11 To Order
Photo Part No Description Price (each) Stock
LR086045 KIT - VALVE REPAIR $175.11 To Order
Photo Part No Description Price (each) Stock
LR092457 BRACKET - CONDENSER SUPPORT $16.94 To Order
LR128698 BRACKET - CONDENSER SUPPORT $16.94 To Order
Photo Part No Description Price (each) Stock
LR092458 BRACKET - CONDENSER SUPPORT $16.94 To Order
LR128700 BRACKET - CONDENSER SUPPORT $16.87 To Order
Photo Part No Description Price (each) Stock
LR092459 BRACKET - CONDENSER SUPPORT $18.30 To Order
LR128701 BRACKET - CONDENSER SUPPORT $16.87 To Order
Photo Part No Description Price (each) Stock
LR092456 BRACKET - CONDENSER SUPPORT $39.51 To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE $238.54 To Order
Photo Part No Description Price (each) Stock
LR086044 COMPRESSOR - AIR CONDITIONING $1,394.72 To Order
LR112584 COMPRESSOR - AIR CONDITIONING $1,711.41 To Order
Photo Part No Description Price (each) Stock
LR013376 BRACKET - COMPRESSOR $139.98 IN STOCK
Photo Part No Description Price (each) Stock
LR111349 KIT - AIR-CON CONDENSER DESICCANT $190.99 To Order
Photo Part No Description Price (each) Stock
LR091472 TUBE AND HOSE-A/C COMPRESSOR OUTLET $182.69 To Order
Photo Part No Description Price (each) Stock
LR091475 HOSE - AIR CONDITIONING $164.77 To Order
View All

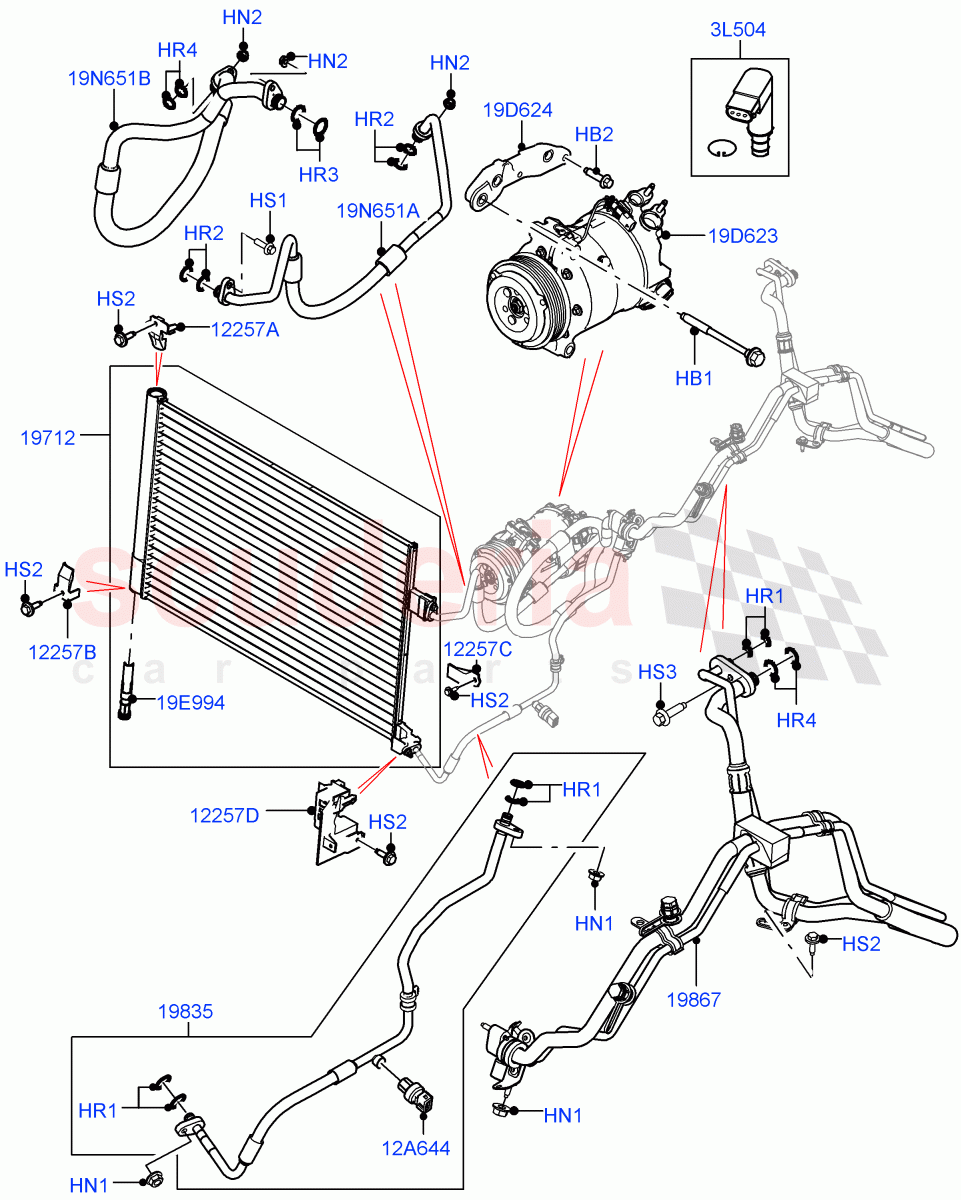

Air Conditioning Condensr/Compressr (Front) (3.0 V6 D Gen2 Twin Turbo) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR005074
BOLT
Hexagonal Head, M8 X 96.5 		$1.15 3
HB2 RYG500290
BOLT - HEX.HEAD
Hexagonal Head, M8 x 30MM
IN STOCK 		$0.52 2
HN1 FN106042
NUT
Hexagonal Head, M6
IN STOCK 		$1.02 5
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 3
HR1 LR044466
O-RING
7.65 X 1.78 		$4.31 6
HR2 LR054871
O-RING
10.82MM X 1.78MM 		$3.30 4
HR3 LR044465
O-RING
14 X 1.78 		$2.91 2
HR4 LR054870
O-RING
16.5 X 1.78MM 		$3.52 4
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.95 1
HS2 RYG501590
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.99 5
HS3 RYG500220
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$3.44 1
3L504 LR086045
KIT - VALVE REPAIR
To: JA716205 		$175.11 1
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE 		$238.54 1
19D623 LR086044
COMPRESSOR - AIR CONDITIONING
To: JA716205 		$1,394.72 1
19D623 LR112584
COMPRESSOR - AIR CONDITIONING
From: JA716206 		$1,711.41 1
19D624 LR013376
BRACKET - COMPRESSOR
IN STOCK 		$139.98 1
19E994 LR111349
KIT - AIR-CON CONDENSER DESICCANT 		$190.99 1
19N651A LR091472
TUBE AND HOSE-A/C COMPRESSOR OUTLET
Condenser Inlet Tube 		$182.69 1
19N651B LR091475
HOSE - AIR CONDITIONING
Compressor Inlet 		$164.77 1
12257A LR092457
BRACKET - CONDENSER SUPPORT
RH, Upper / To: LA238015 		$16.94 1
12257A LR128698
BRACKET - CONDENSER SUPPORT
RH, Upper / From: LA238016 		$16.94 1
12257B LR092458
BRACKET - CONDENSER SUPPORT
RH, Lower / To: KA230297 		$16.94 1
12257B LR128700
BRACKET - CONDENSER SUPPORT
RH, Lower / From: KA230298 		$16.87 1
12257C LR092459
BRACKET - CONDENSER SUPPORT
LH, Upper / To: LA238015 		$18.30 1
12257C LR128701
BRACKET - CONDENSER SUPPORT
LH, Upper / From: LA238016 		$16.87 1
12257D LR092456
BRACKET - CONDENSER SUPPORT
LH, Lower 		$39.51 1
19712 LR092450
CONDENSER
To: KA225276 		$569.63 1
19712 LR114353
CONDENSER
From: KA225277 		$539.85 1
19835 LR091477
HOSE - AIR CONDITIONING
Condenser Outlet 		$169.13 1
19867 LR091468
TUBE- A/C EVAPORATOR INLET & OUTLET
A/C HF01234YF w/o Intrnl HT Exchng 		$375.33 1
19867 LR091466
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A 		$332.10 1
19867 LR091465
TUBE- A/C EVAPORATOR INLET & OUTLET
A/C HF01234YF w/Intrnl Heat Exchng 		$291.11 1
