Name: Rear Brake Discs And Calipers (5.0L P AJ133 DOHC CDA S/C Enhanced, Limited Package) ((V) FROMKA000001)
Rating: 4.3 (1 reviews)

Rear Brake Discs And Calipers (5.0L P AJ133 DOHC CDA S/C Enhanced, Limited Package) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Brake Discs And Calipers (5.0L P AJ133 DOHC CDA S/C Enhanced, Limited Package) ((V)...

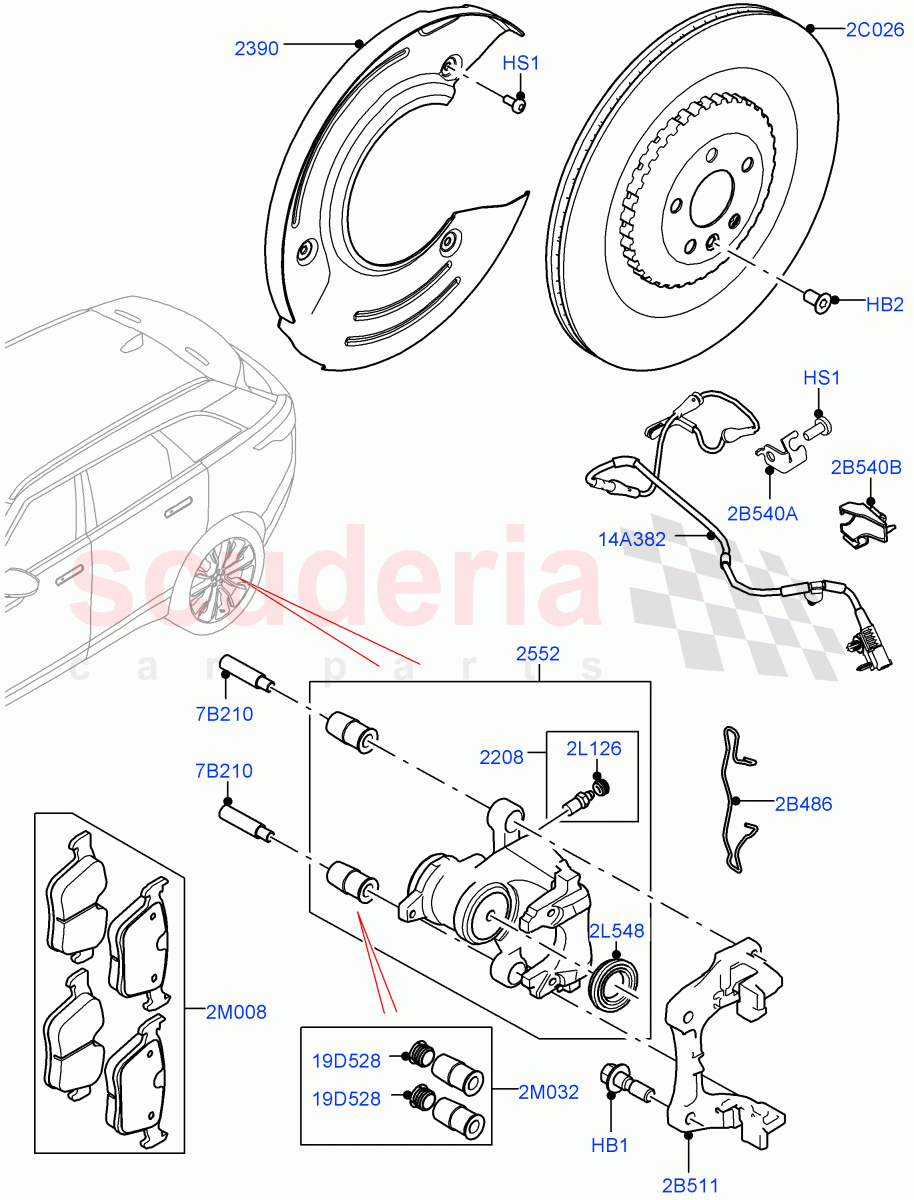

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR042690	BOLT	$6.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR114987	BOLT	$2.01	IN STOCK
	LR131782	BOLT - HEX. HEAD - FLANGED	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	$0.75	IN STOCK
	RYP500920	SCREW	$0.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061096	SCREW - BLEED	$7.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116915	SHIELD - BRAKE DISC SPLASH	$339.36	To Order
	LR116916	SHIELD - BRAKE DISC SPLASH	$339.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122685	CALIPER - BRAKE	$617.06	To Order
	LR122686	CALIPER - BRAKE	$720.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062657	SPRING - BRAKE CALIPER	$11.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122688	BRACKET	$162.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116914	DISC - BRAKE	$703.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027312	CAP - BLEED SCREW	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122687	KIT - CALIPER SEAL	$30.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122689	BRAKE PADS - LESS SPRINGS	$322.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000751	KIT - CALIPER REPAIR	$33.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR003977	KIT - RETAINING PIN	$27.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR116999	WIRE - BRAKE PAD WEAR WARNING	$41.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000760	COVER - DUST	$8.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090700	BRACKET - WIRING	$21.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090708	CLIP - WIRING	$2.71	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR042690	BOLT IN STOCK	LR042690 BOLT M12 x 36MM / From: KA000001 IN STOCK	$6.09	4
HB2	LR114987	BOLT IN STOCK	LR114987 BOLT M8, Torx / From: KA000001 / To: LA251113 IN STOCK	$2.01	2
HB2	LR131782	BOLT - HEX. HEAD - FLANGED	LR131782 BOLT - HEX. HEAD - FLANGED M8 X 12, Torx / From: LA251114	$1.89	2
HS1	RYP500920	SCREW IN STOCK	RYP500920 SCREW M6 X 14MM, Torx / From: KA000001 IN STOCK	$0.75	6
HS1	RYP500920	SCREW IN STOCK	RYP500920 SCREW M6 X 14MM, Torx / From: KA000001 IN STOCK	$0.75	2
2B486	LR062657	SPRING - BRAKE CALIPER IN STOCK	LR062657 SPRING - BRAKE CALIPER From: KA000001 IN STOCK	$11.00	2
2B511	LR122688	BRACKET	LR122688 BRACKET RH/LH / From: KA000001	$162.07	2
2B540A	LR090700	BRACKET - WIRING	LR090700 BRACKET - WIRING From: KA000001	$21.51	2
2B540B	LR090708	CLIP - WIRING	LR090708 CLIP - WIRING From: KA000001	$2.71	2
2C026	LR116914	DISC - BRAKE	LR116914 DISC - BRAKE From: KA000001	$703.94	2
2L126	LR027312	CAP - BLEED SCREW IN STOCK	LR027312 CAP - BLEED SCREW From: KA000001 IN STOCK	$1.32	2
2L548	LR122687	KIT - CALIPER SEAL	LR122687 KIT - CALIPER SEAL From: KA000001	$30.45	2
2M008	LR122689	BRAKE PADS - LESS SPRINGS	LR122689 BRAKE PADS - LESS SPRINGS From: KA000001	$322.50	1
2M032	LR000751	KIT - CALIPER REPAIR IN STOCK	LR000751 KIT - CALIPER REPAIR From: KA000001 IN STOCK	$33.63	1
7B210	LR003977	KIT - RETAINING PIN IN STOCK	LR003977 KIT - RETAINING PIN Pin - Slide / From: KA000001 IN STOCK	$27.35	4
14A382	LR116999	WIRE - BRAKE PAD WEAR WARNING	LR116999 WIRE - BRAKE PAD WEAR WARNING From: KA000001	$41.05	1
19D528	LR000760	COVER - DUST	LR000760 COVER - DUST From: KA000001	$8.81	4
2208	LR061096	SCREW - BLEED	LR061096 SCREW - BLEED With Cap / From: KA000001	$7.09	2
2390	LR116915	SHIELD - BRAKE DISC SPLASH	LR116915 SHIELD - BRAKE DISC SPLASH RH / From: KA000001	$339.36	1
2390	LR116916	SHIELD - BRAKE DISC SPLASH	LR116916 SHIELD - BRAKE DISC SPLASH LH / From: KA000001	$339.36	1
2552	LR122685	CALIPER - BRAKE	LR122685 CALIPER - BRAKE RH / From: KA000001	$617.06	1
2552	LR122686	CALIPER - BRAKE	LR122686 CALIPER - BRAKE LH / From: KA000001	$720.41	1

Rear Brake Discs And Calipers (5.0L P Aj133 Dohc Cda S/C Enhanced, Limited Package) ((V)...

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Brake Discs And Calipers (5.0L P AJ133 DOHC CDA S/C Enhanced, Limited Package) ((V)...
