Instrument Cluster

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Instrument Cluster

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR007312 SCREW 4.2 X 19 $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR105601 INSTRUMENT CLUSTER - DASH $1,442.83 To Order
LR105602 INSTRUMENT CLUSTER - DASH $1,225.56 To Order
LR105603 INSTRUMENT CLUSTER - DASH $1,442.83 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091010 INSTRUMENT CLUSTER - DASH $2,551.49 To Order
LR091013 INSTRUMENT CLUSTER - DASH $2,551.49 To Order
LR111006 INSTRUMENT CLUSTER - DASH $1,531.52 To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093376 LENS - INSTRUMENT CLUSTER $146.11 To Order
LR128477 LENS - INSTRUMENT CLUSTER $118.47 To Order
Photo Part No Description Price (each) Stock
LR124563 LENS - INSTRUMENT CLUSTER $144.77 To Order
View All

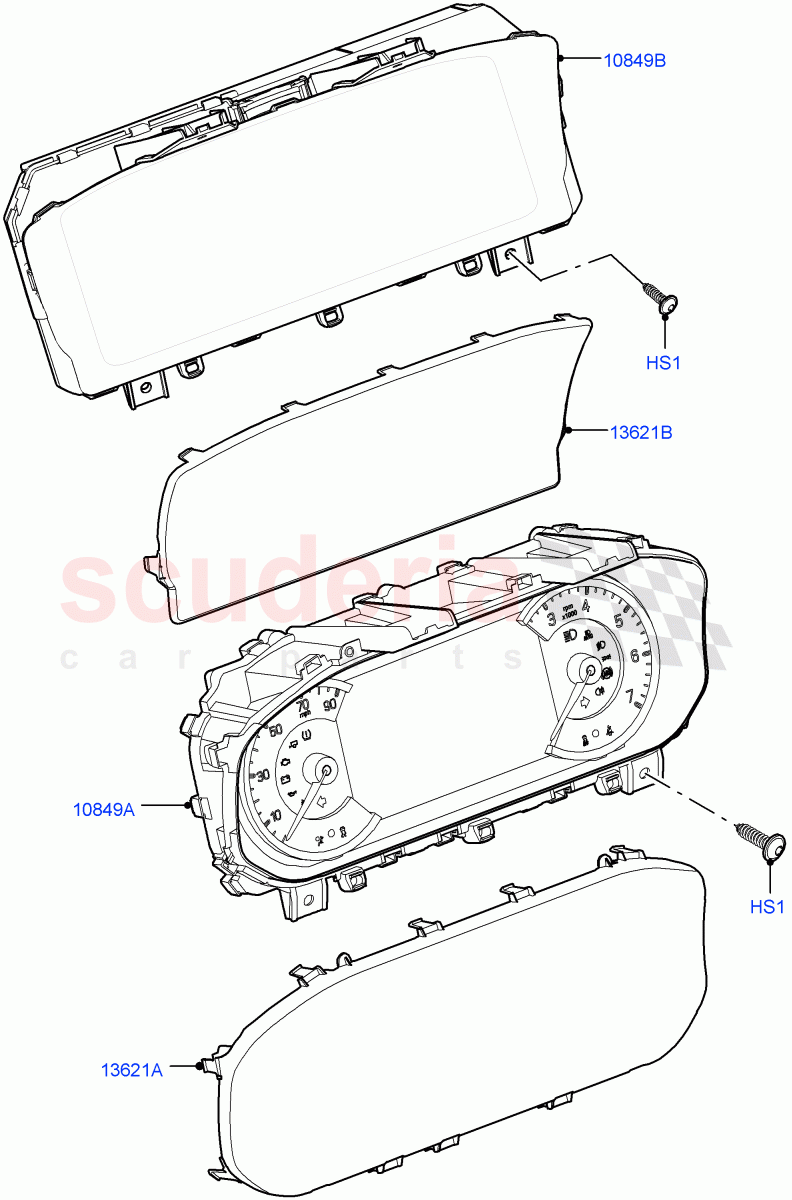

Instrument Cluster of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR007312
SCREW 4.2 X 19
4.2 X 19MM
IN STOCK 		$0.77 4
10849A LR105601
INSTRUMENT CLUSTER - DASH
2.0L I4 High DOHC AJ200 Petrol, Partial TFT/LCD Instrument Cluster, With MPH/KMH Speedo / To: JA999999 		$1,442.83 1
10849A LR105602
INSTRUMENT CLUSTER - DASH
3.0 V6 D Gen2 Twin Turbo, Partial TFT/LCD Instrument Cluster, With MPH/KMH Speedo / To: JA999999 		$1,225.56 1
10849A LR105603
INSTRUMENT CLUSTER - DASH
2.0L I4 Mid DOHC AJ200 Petrol, Partial TFT/LCD Instrument Cluster, With KMH Speedo / To: JA999999 		$1,442.83 1
10849A LR105604
INSTRUMENT CLUSTER - DASH
2.0L I4 DSL HIGH DOHC AJ200, Partial TFT/LCD Instrument Cluster, With KMH Speedo / To: JA999999 		$1,500.89 1
10849A LR115092
INSTRUMENT CLUSTER - DASH
3.0L DOHC GDI SC V6 PETROL, Partial TFT/LCD Instrument Cluster, With MPH/KMH Speedo / From: KA000001 / To: LA999999 		$1,080.12 1
10849A LR112337
INSTRUMENT CLUSTER - DASH
2.0L I4 DSL MID DOHC AJ200, Partial TFT/LCD Instrument Cluster, With MPH/KMH Speedo / From: KA000001 / To: LA999999 		$1,257.18 1
10849A LR112338
INSTRUMENT CLUSTER - DASH
2.0L I4 Mid DOHC AJ200 Petrol, Partial TFT/LCD Instrument Cluster, With KMH Speedo / From: KA000001 / To: LA999999 		$1,080.12 1
10849A LR112339
INSTRUMENT CLUSTER - DASH
2.0L I4 DSL HIGH DOHC AJ200, Partial TFT/LCD Instrument Cluster, With KMH Speedo / From: KA000001 / To: LA999999 		$1,217.04 1
10849A LR146411
INSTRUMENT CLUSTER - DASH
2.0L I4 Mid DOHC AJ200 Petrol, Partial TFT/LCD Instrument Cluster, With MPH/KMH Speedo / From: MA000001 		$1,639.77 1
10849A LR146412
INSTRUMENT CLUSTER - DASH
3.0L AJ20D6 Diesel High, Partial TFT/LCD Instrument Cluster, With MPH/KMH Speedo / From: MA000001 		$1,639.77 1
10849A LR146413
INSTRUMENT CLUSTER - DASH
2.0L I4 Mid DOHC AJ200 Petrol, Partial TFT/LCD Instrument Cluster, With KMH Speedo / From: MA000001 		$1,639.77 1
10849A LR146414
INSTRUMENT CLUSTER - DASH
3.0L AJ20D6 Diesel High, Partial TFT/LCD Instrument Cluster, With KMH Speedo / From: MA000001 		$1,639.77 1
10849B LR091010
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Less Head Up Display / To: JA765042 		$2,551.49 1
10849B LR091013
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / To: JA765042 		$2,551.49 1
10849B LR111006
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Less Head Up Display / From: JA767043 / To: KA797719 		$1,531.52 1
10849B LR111007
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / From: JA767043 / To: KA797719 		$1,970.42 1
10849B LR117893
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Less Head Up Display / From: KA797720 / To: LA238781 		$2,538.32 1
10849B LR117894
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / From: KA797720 / To: LA238781 		$2,622.21 1
10849B LR112343
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Less Head Up Display / From: JA765043 / To: JA767042 		$2,851.69 1
10849B LR112344
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / From: JA765043 / To: JA767042 		$2,851.69 1
10849B LR139323
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Less Head Up Display / From: LA238782 / To: LA290223 		$1,254.99 1
10849B LR139322
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / From: LA238782 / To: LA290223 		$1,355.40 1
10849B LR140834
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Less Head Up Display / From: MA000001 / To: MA312909 		$2,597.79 1
10849B LR140835
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / From: MA000001 / To: MA312909 		$2,597.79 1
10849B LR159932
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Less Head Up Display / From: MA312910 / To: MA324887 		$2,556.10 1
10849B LR159931
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / From: MA312910 / To: MA324887 		$2,760.57 1
10849B LR166291
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Less Head Up Display / From: LA290224 / To: LA999999 		$2,425.86 1
10849B LR166292
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / From: LA290224 / To: LA999999 		$2,940.03 1
10849B LR164817
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Less Head Up Display / From: MA324888 		$2,191.80 1
10849B LR164818
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / From: MA324888 / To: NA333625 		$2,492.08 1
10849B LR171625
INSTRUMENT CLUSTER - DASH
Full TFT/LCD Instrument Cluster, Head Up Display / From: NA333626 		$2,466.37 1
13621A LR093376
LENS - INSTRUMENT CLUSTER
Partial TFT/LCD Instrument Cluster / Instrument Cluster / To: LA999999 		$146.11 1
13621A LR128477
LENS - INSTRUMENT CLUSTER
Partial TFT/LCD Instrument Cluster / Instrument Cluster / From: MA000001 		$118.47 1
13621B LR124563
LENS - INSTRUMENT CLUSTER
Full TFT/LCD Instrument Cluster / Instrument Cluster 		$144.77 1
