Front Cross Member & Stabilizer Bar (Crossmember) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Front Cross Member & Stabilizer Bar (Crossmember) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR090447 BOLT $5.38 To Order
Photo Part No Description Price (each) Stock
LR038571 BOLT $3.70 To Order
Photo Part No Description Price (each) Stock
LR024183 BOLT $1.77 To Order
Photo Part No Description Price (each) Stock
LR090446 BOLT $1.96 To Order
Photo Part No Description Price (each) Stock
FT110306 SCREW $1.16 To Order
FT110306 SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
KYG500450 BOLT $3.77 To Order
Photo Part No Description Price (each) Stock
RYG500250 BOLT $1.26 IN STOCK
Photo Part No Description Price (each) Stock
LR106431 BOLT $2.62 To Order
Photo Part No Description Price (each) Stock
LR143159 BOLT $3.09 To Order
Photo Part No Description Price (each) Stock
LR090497 NUT $1.72 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.76 IN STOCK
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.99 IN STOCK
Photo Part No Description Price (each) Stock
LR045228 RETAINER - NUT $4.48 To Order
Photo Part No Description Price (each) Stock
LR141882 CRUSH CAN $159.81 To Order
Photo Part No Description Price (each) Stock
LR141805 SHIELD - FRONT CROSSMEMBER $178.57 To Order
LR141806 SHIELD - FRONT CROSSMEMBER $193.78 To Order
LR141807 SHIELD - FRONT CROSSMEMBER $178.57 To Order
Photo Part No Description Price (each) Stock
LR108316 BRACKET - RADIATOR LOWER $28.01 To Order
LR142028 BRACKET - RADIATOR LOWER $25.65 To Order
LR142027 BRACKET - RADIATOR LOWER $26.45 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR090439 GUARD - RADIATOR $227.83 To Order
Photo Part No Description Price (each) Stock
LR152444 CROSSMEMBER - FRONT FLOOR $2,885.21 To Order
Photo Part No Description Price (each) Stock
LR141804 REINFORCEMENT - REAR CROSSMEMBER $257.52 To Order
Photo Part No Description Price (each) Stock
LR154810 DAMPER - DAMPING MASS $211.41 To Order
LR154811 DAMPER - DAMPING MASS $211.41 To Order
Photo Part No Description Price (each) Stock
LR090603 DAMPER - VIBRATION $213.68 To Order
LR142036 DAMPER - VIBRATION $174.97 To Order
Photo Part No Description Price (each) Stock
LR090441 REINFORCEMENT - CROSSMEMBER $54.85 To Order
Photo Part No Description Price (each) Stock
LR142030 REINFORCEMENT - CROSSMEMBER $123.56 To Order
LR142032 REINFORCEMENT - CROSSMEMBER $123.56 To Order
View All

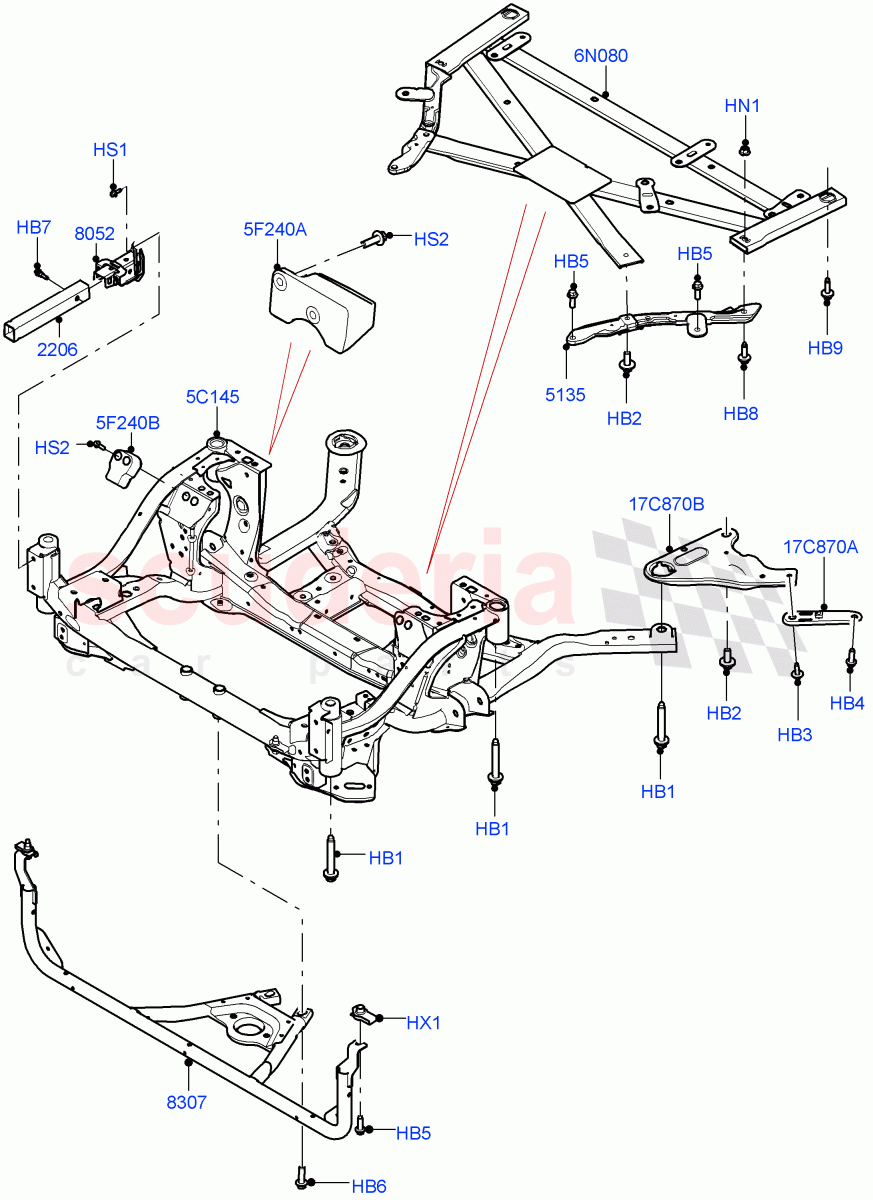

Front Cross Member & Stabilizer Bar (Crossmember) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR090447
BOLT
Hexagonal Head, M14 X 90 / From: MA000001 		$5.38 6
HB2 LR038571
BOLT
Hexagonal Head, M12 X 35MM, Reinforcement / From: MA000001 		$3.70 2
HB3 LR024183
BOLT
Hexagonal Head, M8 X 25MM / From: MA000001 		$1.77 4
HB4 LR090446
BOLT
M10 X 30MM / From: MA000001 		$1.96 2
HB5 FT110306
SCREW
Guard, Hexagonal Head, M10 X 30MM / From: MA000001 		$1.16 2
HB5 FT110306
SCREW
2.0L AJ200P Hi PHEV / Hexagonal Head, M10 X 30MM, Reinforcement - Member / From: MA000001 		$1.16 4
HB6 KYG500450
BOLT
M12 x 40MM / From: MA000001 		$3.77 2
HB7 RYG500250
BOLT
3.0L AJ20P6 Petrol High / M6 x 25MM / From: MA000001
IN STOCK 		$1.26 2
HB8 LR106431
BOLT
2.0L AJ200P Hi PHEV / M10X36 / From: MA000001 		$2.62 2
HB9 LR143159
BOLT
3.0L AJ20P6 Petrol High / From: MA000001 		$3.09 2
HN1 LR090497
NUT
3.0L AJ20P6 Petrol High / M10 / From: MA000001 		$1.72 2
HS1 RYG500190
SCREW
Hexagonal Head, M6 X 16MM / From: MA000001
IN STOCK 		$0.76 4
HS2 FS106206
SCREW
3.0L AJ20D6 Diesel High / Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$0.99 8
HX1 LR045228
RETAINER - NUT
M10, Nut "U" Spring / From: MA000001 		$4.48 2
5C145 LR152444
CROSSMEMBER - FRONT FLOOR
From: MA000001 		$2,885.21 1
5F240A LR154810
DAMPER - DAMPING MASS
2.0L AJ21D4 Diesel Mid / RH / From: MA000001 		$211.41 1
5F240A LR154811
DAMPER - DAMPING MASS
3.0L AJ20P6 Petrol High / LH / From: MA000001 		$211.41 1
5F240B LR090603
DAMPER - VIBRATION
3.0L AJ20P6 Petrol High / RH / From: MA000001 		$213.68 1
5F240B LR142036
DAMPER - VIBRATION
2.0L AJ21D4 Diesel Mid / LH / From: MA000001 		$174.97 1
6N080 LR141804
REINFORCEMENT - REAR CROSSMEMBER
3.0L AJ20D6 Diesel High / From: MA000001 		$257.52 1
17C870A LR090441
REINFORCEMENT - CROSSMEMBER
Lower, RH/LH / From: MA000001 		$54.85 2
17C870B LR142030
REINFORCEMENT - CROSSMEMBER
LH, Upper / From: MA000001 		$123.56 1
17C870B LR142032
REINFORCEMENT - CROSSMEMBER
RH, Upper / From: MA000001 		$123.56 1
2206 LR141882
CRUSH CAN
3.0L AJ20P6 Petrol High / From: MA000001 		$159.81 2
5135 LR141805
SHIELD - FRONT CROSSMEMBER
3.0L AJ20P6 Petrol High / LH / From: MA000001 		$178.57 1
5135 LR141806
SHIELD - FRONT CROSSMEMBER
2.0L AJ200P Hi PHEV / LH / From: MA000001 		$193.78 1
5135 LR141807
SHIELD - FRONT CROSSMEMBER
2.0L AJ200P Hi PHEV / RH / From: MA000001 		$178.57 1
8052 LR108316
BRACKET - RADIATOR LOWER
2.0L AJ200P Hi PHEV, Immersion Heater - 700W / 110V / LH / From: MA000001 		$28.01 1
8052 LR142028
BRACKET - RADIATOR LOWER
3.0L AJ20P6 Petrol High / LH / From: MA000001 		$25.65 1
8052 LR142027
BRACKET - RADIATOR LOWER
3.0L AJ20P6 Petrol High / RH / From: MA000001 		$26.45 1
8052 LR142029
BRACKET - RADIATOR LOWER
2.0L AJ200P Hi PHEV, Less Immersion Heater / LH / From: MA000001 		$24.60 1
8052 LR093552
BRACKET - RADIATOR LOWER
2.0L AJ200P Hi PHEV / RH / From: MA000001 		$35.21 1
8307 LR090439
GUARD - RADIATOR
Radiator / From: MA000001 		$227.83 1
