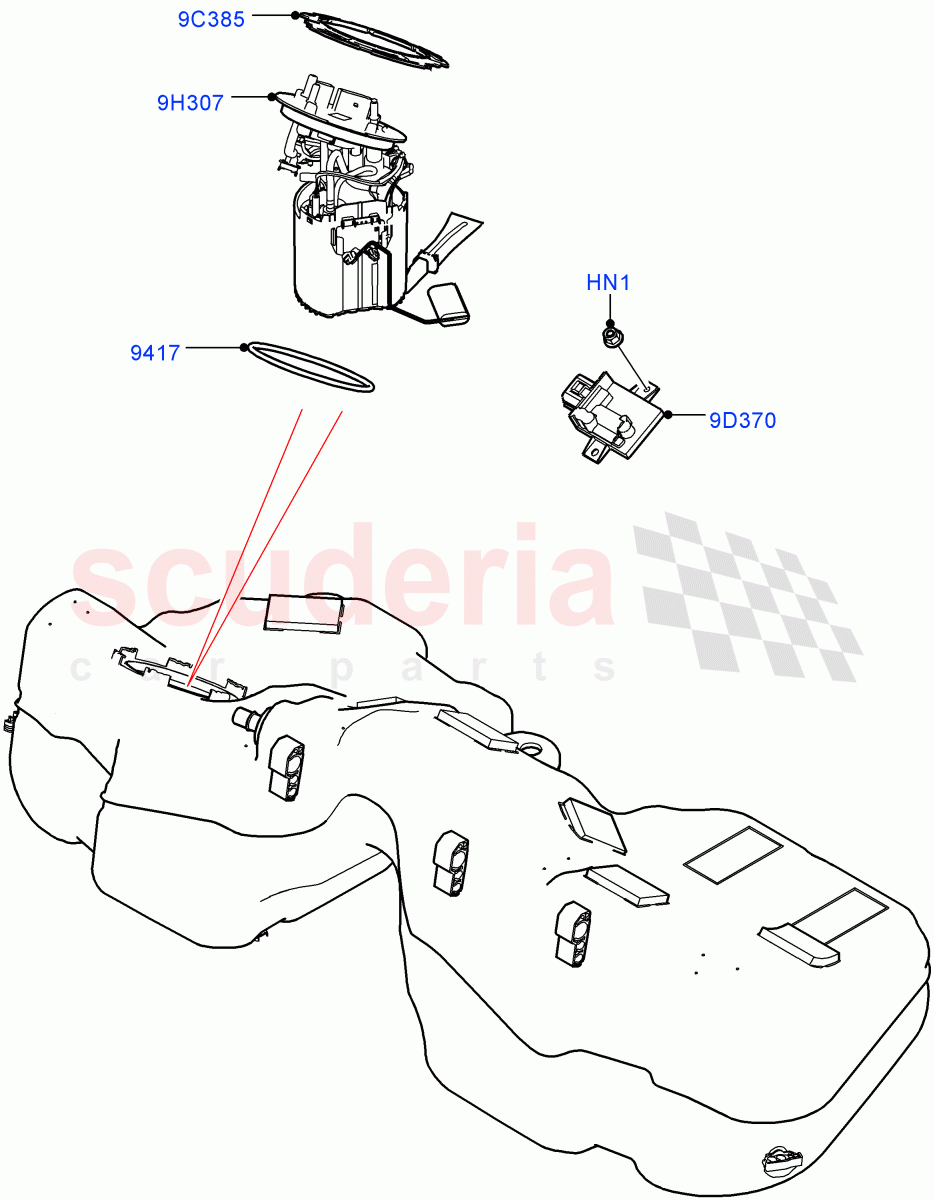

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082729	RING - RETAINING	$26.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141411	SENDER AND PUMP	$484.27	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6 / From: MA000001 IN STOCK	$0.68	2
9C385	LR082729	RING - RETAINING	LR082729 RING - RETAINING From: MA000001	$26.99	1
9D370	LR125267	CONTROL - FUEL PUMP DRIVE	LR125267 CONTROL - FUEL PUMP DRIVE From: MA000001 / To: MA315240	$160.32	1
9D370	LR159937	CONTROL - FUEL PUMP DRIVE	LR159937 CONTROL - FUEL PUMP DRIVE From: MA315241	$188.86	1
9H307	LR141411	SENDER AND PUMP	LR141411 SENDER AND PUMP From: MA000001	$484.27	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: MA000001 IN STOCK	$10.54	1
