Name: Rear Exhaust System (3.0L AJ20D6 Diesel High, Dual Exhaust) ((V) FROMMA000001)
Rating: 4.7 (1 reviews)

View All

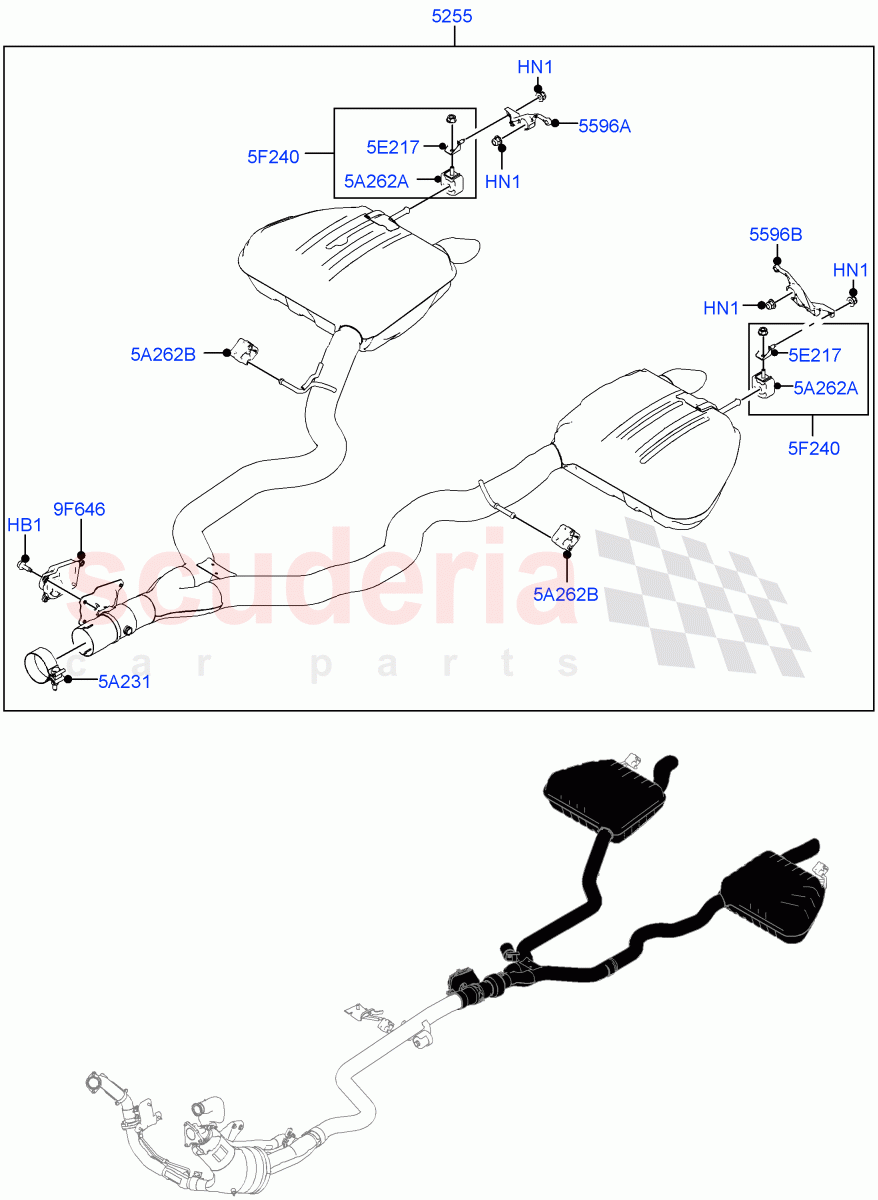

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR141903	BOLT	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	$1.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR155860	MUFFLER - REAR	$1,390.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141559	BRACKET - EXHAUST PIPE MOUNTING	$32.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141554	BRACKET - EXHAUST PIPE MOUNTING	$32.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$31.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141866	BRACKET - EXHAUST PIPE MOUNTING	$9.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141885	KIT - EXHAUST PIPE CONNECTOR	$26.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141782	ACTUATOR - ELECTRONIC EXHAUST VALVE	$158.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR100224	INSULATOR - RUBBER	$32.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.72	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR141903	BOLT	LR141903 BOLT M6 X 20MM, To Valve / From: MA000001	$2.33	3
HN1	FY108046	NUT M8 FLANGED HEX HEAD IN STOCK	FY108046 NUT M8 FLANGED HEX HEAD M8 / From: MA000001 IN STOCK	$1.15	4
5A231	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: MA000001	$31.03	1
5A262A	LR100224	INSULATOR - RUBBER	LR100224 INSULATOR - RUBBER For Rear Muffler / From: MA000001	$32.68	2
5A262B	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: MA000001	$23.72	2
5E217	LR141866	BRACKET - EXHAUST PIPE MOUNTING	LR141866 BRACKET - EXHAUST PIPE MOUNTING Lower, RH/LH / From: MA000001	$9.75	2
5F240	LR141885	KIT - EXHAUST PIPE CONNECTOR	LR141885 KIT - EXHAUST PIPE CONNECTOR Kit, RH/LH / From: MA000001	$26.70	2
9F646	LR141782	ACTUATOR - ELECTRONIC EXHAUST VALVE IN STOCK	LR141782 ACTUATOR - ELECTRONIC EXHAUST VALVE From: MA000001 IN STOCK	$158.11	1
5255	LR155860	MUFFLER - REAR	LR155860 MUFFLER - REAR Complete Assembly / From: MA000001	$1,390.19	1
5596A	LR141559	BRACKET - EXHAUST PIPE MOUNTING	LR141559 BRACKET - EXHAUST PIPE MOUNTING RH Upper / From: MA000001	$32.09	1
5596B	LR141554	BRACKET - EXHAUST PIPE MOUNTING	LR141554 BRACKET - EXHAUST PIPE MOUNTING LH Upper / From: MA000001	$32.09	1

Rear Exhaust System (3.0L Aj20D6 Diesel High, Dual Exhaust) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]
