Name: Oil Pan/Oil Level Indicator (3.0L AJ20D6 Diesel High) ((V) FROMMA000001)
Rating: 5.0 (1 reviews)

View All

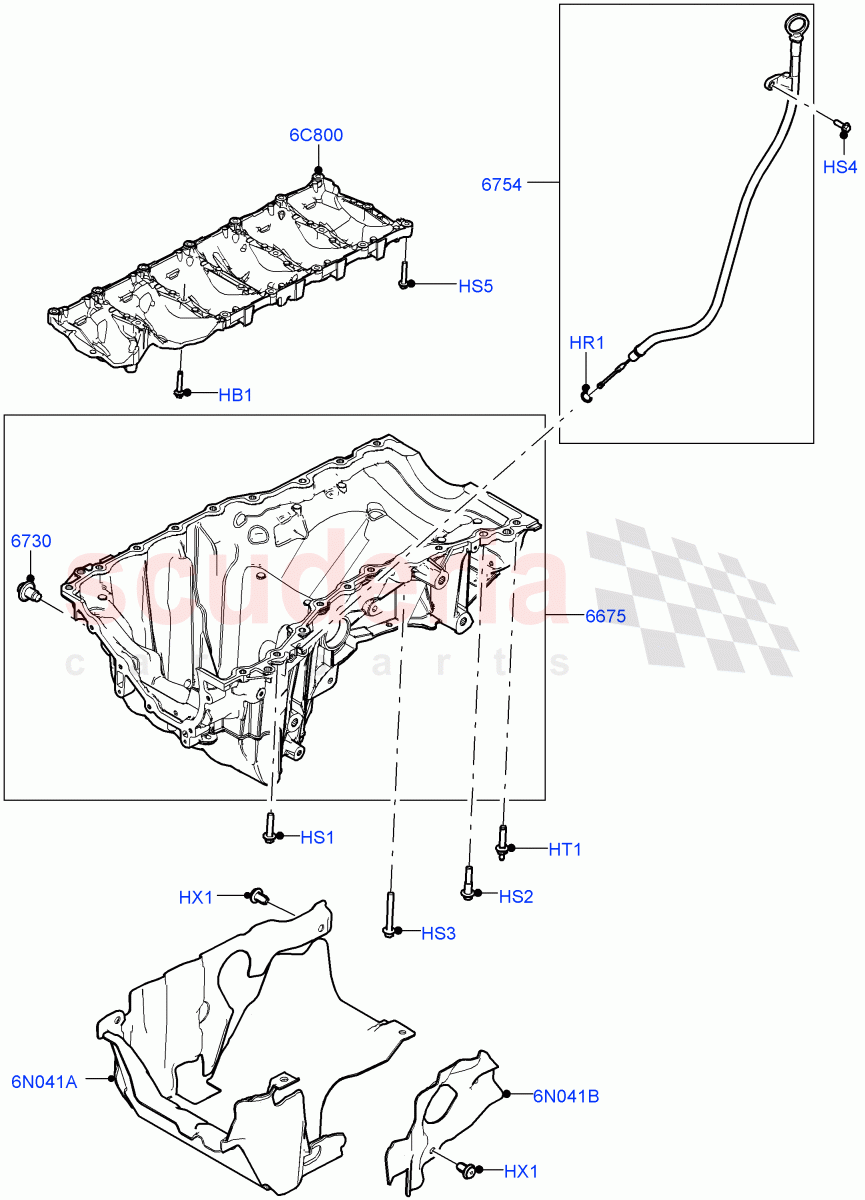

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR133629	BOLT	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$5.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074137	SCREW	$1.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089234	STUD	$5.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149603	PAN - ENGINE OIL	$864.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	$8.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141358	TUBE - OIL LEVEL INDICATOR	$45.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132045	TRAY - OIL	$274.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141273	INSULATOR - OIL SUMP	$46.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141272	INSULATOR - OIL SUMP	$14.46	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR133629	BOLT	LR133629 BOLT M6 x 35MM, Middle, Windage Tray / From: MA000001	$1.45	5
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator / From: MA000001	$5.17	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: MA000001	$2.35	9
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm / From: MA000001	$3.44	2
HS3	LR074137	SCREW	LR074137 SCREW M8 x 60mm / From: MA000001	$1.95	2
HS4	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Oil Level Indicator / From: MA000001	$2.31	1
HS5	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: MA000001	$2.29	12
HT1	LR089234	STUD	LR089234 STUD M8 X 35 + M6 X 12 / From: MA000001	$5.08	6
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5 / From: MA000001	$3.04	6
6C800	LR132045	TRAY - OIL	LR132045 TRAY - OIL From: MA000001	$274.60	1
6N041A	LR141273	INSULATOR - OIL SUMP	LR141273 INSULATOR - OIL SUMP Main / From: MA000001	$46.60	1
6N041B	LR141272	INSULATOR - OIL SUMP	LR141272 INSULATOR - OIL SUMP LH Side / From: MA000001	$14.46	1
6675	LR149603	PAN - ENGINE OIL	LR149603 PAN - ENGINE OIL From: MA000001	$864.81	1
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN M14 X 21 / From: MA000001	$8.34	1
6754	LR141358	TUBE - OIL LEVEL INDICATOR	LR141358 TUBE - OIL LEVEL INDICATOR From: MA000001	$45.65	1

Oil Pan/Oil Level Indicator (3.0L Aj20D6 Diesel High) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]
