Timing Gear Covers (3.0L Aj20D6 Diesel High) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Timing Gear Covers (3.0L AJ20D6 Diesel High) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR128702 PLUG - ENGINE $16.11 To Order
Photo Part No Description Price (each) Stock
LR073787 PIN - CENTERING $4.09 To Order
Photo Part No Description Price (each) Stock
LR095782 O-RING $4.84 IN STOCK
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.54 To Order
Photo Part No Description Price (each) Stock
LR073786 SCREW $2.25 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.35 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.68 IN STOCK
Photo Part No Description Price (each) Stock
LR158170 SCREW $1.78 To Order
Photo Part No Description Price (each) Stock
LR089197 STUD $4.02 To Order
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC $3.06 To Order
Photo Part No Description Price (each) Stock
LR125622 PLATE - BLANKING $68.50 To Order
Photo Part No Description Price (each) Stock
LR122697 SEAL - CRANKSHAFT OIL - REAR $52.16 IN STOCK
Photo Part No Description Price (each) Stock
LR127937 PLATE - CYLINDER BLOCK REAR $762.53 To Order
LR157791 PLATE - CYLINDER BLOCK REAR $755.35 To Order
Photo Part No Description Price (each) Stock
LR125593 COVER - CYLINDER HEAD $138.86 To Order
Photo Part No Description Price (each) Stock
LR162144 RETAINER - CRANKSHAFT OIL SEAL $279.80 To Order
Photo Part No Description Price (each) Stock
LR125594 GASKET - COVER $39.64 To Order
Photo Part No Description Price (each) Stock
LR123925 SEAL - TRANSMISSION $76.99 To Order
Photo Part No Description Price (each) Stock
LR123926 SEAL - STARTER MOTOR $30.04 To Order
Photo Part No Description Price (each) Stock
LR126181 SENSOR - CRANKSHAFT POSITION - CPS $150.81 To Order
Photo Part No Description Price (each) Stock
LR141279 INSULATOR - CYLINDER HEAD $143.62 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.54 IN STOCK
View All

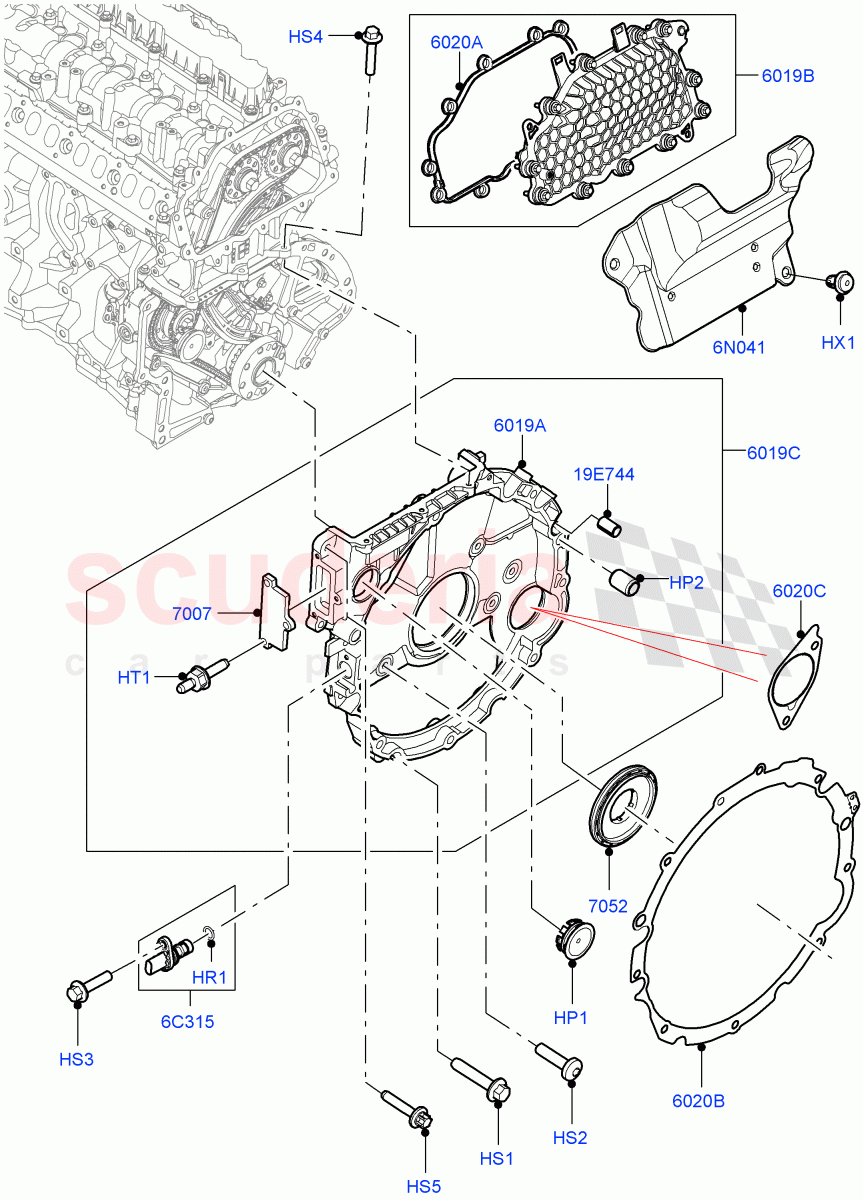

Timing Gear Covers (3.0L AJ20D6 Diesel High) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HP1 LR128702
PLUG - ENGINE
Includes O-Ring / From: MA000001 		$16.11 1
HP2 LR073787
PIN - CENTERING
15.7MM, Pin - Dowell / From: MA000001 		$4.09 2
HR1 LR095782
O-RING
17.0MM, Crankshaft Position Sensor(CKP) / From: MA000001
IN STOCK 		$4.84 1
HS1 LR073649
SCREW
M8 x 40MM / From: MA000001 		$2.54 10
HS2 LR073786
SCREW
M8 X 30MM / From: MA000001 		$2.25 4
HS3 LR071842
SCREW AND WASHER - HEX HEAD
Crankshaft Position Sensor(CKP), Hexagonal Head, M6 X 25MM / From: MA000001 		$1.35 1
HS4 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: MA000001
IN STOCK 		$2.68 3
HS5 LR158170
SCREW
M8 x 40MM / From: MA000001 		$1.78 1
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm / From: MA000001 		$4.02 3
HX1 LR071767
RIVET - PLASTIC
7.8-9.1 x 4.5-10.5, Insulator / From: MA000001 		$3.06 2
6C315 LR126181
SENSOR - CRANKSHAFT POSITION - CPS
From: MA000001 		$150.81 1
6N041 LR141279
INSULATOR - CYLINDER HEAD
From: MA000001 		$143.62 1
19E744 LR057802
DOWEL - PIN
IN STOCK 		$3.54 2
6019A LR127937
PLATE - CYLINDER BLOCK REAR
Lower, Timing Chain Cover / From: MA000001 / To: MA309312 		$762.53 1
6019A LR157791
PLATE - CYLINDER BLOCK REAR
Lower, Timing Chain Cover / From: MA309313 		$755.35 1
6019B LR125593
COVER - CYLINDER HEAD
Timing Chain Cover, Upper, With Fixing Parts / From: MA000001 		$138.86 1
6019C LR162144
RETAINER - CRANKSHAFT OIL SEAL
Assembly, Lower, Timing Chain Cover / From: MA000001 		$279.80 1
6020A LR125594
GASKET - COVER
Timing Chain Cover / From: MA000001 		$39.64 1
6020B LR123925
SEAL - TRANSMISSION
Transmission To Engine / From: MA000001 		$76.99 1
6020C LR123926
SEAL - STARTER MOTOR
Starter Motor / From: MA000001 		$30.04 1
7007 LR125622
PLATE - BLANKING
Access Hole Cover, With Gasket / From: MA000001 		$68.50 1
7052 LR122697
SEAL - CRANKSHAFT OIL - REAR
Crankshaft Oil Seal, Rear / From: MA000001
IN STOCK 		$52.16 1
