Heater/Air Cond.internal Components (Heater Main Unit) (With Front Comfort Air Con (Ihka)) ((V)...

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Heater/Air Cond.Internal Components (Heater Main Unit) (With Front Comfort Air Con (IHKA)) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR143177 BOLT $28.14 To Order
Photo Part No Description Price (each) Stock
LR143156 CAP $3.76 To Order
Photo Part No Description Price (each) Stock
LR093074 BRACKET - SUPPORT $18.73 To Order
LR093073 BRACKET - SUPPORT $18.46 To Order
Photo Part No Description Price (each) Stock
LR093042 CORE - HEATER $154.16 To Order
LR093070 CORE - HEATER $161.85 To Order
Photo Part No Description Price (each) Stock
LR143151 VALVE - EVAPORATOR EXPANSION $292.19 To Order
LR093044 VALVE - EVAPORATOR EXPANSION $200.42 To Order
Photo Part No Description Price (each) Stock
LR093043 EVAPORATOR $534.53 To Order
Photo Part No Description Price (each) Stock
LR093038 WIRE - AIR CONDITIONER $64.91 To Order
LR093069 WIRE - AIR CONDITIONER $74.68 To Order
LR143130 WIRE - AIR CONDITIONER $134.43 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093035 PTC HEATER $187.21 To Order
Photo Part No Description Price (each) Stock
LR093062 NUT - SPECIAL $3.81 To Order
Photo Part No Description Price (each) Stock
LR093063 NUT - SPECIAL $2.65 To Order
Photo Part No Description Price (each) Stock
LR143147 TUBE- A/C EVAPORATOR INLET & OUTLET $161.49 To Order
LR143148 TUBE- A/C EVAPORATOR INLET & OUTLET $182.77 To Order
Photo Part No Description Price (each) Stock
LR143136 HEATER & EVAPORATOR UNIT $1,316.10 To Order
LR143138 HEATER & EVAPORATOR UNIT $1,506.52 To Order
LR143143 HEATER & EVAPORATOR UNIT $1,408.81 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR110381 TUBE - WATER DRAIN $54.49 To Order
Photo Part No Description Price (each) Stock
LR036374 SENSOR - HEATER TEMPERATURE CONTROL $65.04 To Order
Photo Part No Description Price (each) Stock
LR093050 TUBE - COOL BOX $11.56 To Order
LR093071 TUBE - COOL BOX $11.56 To Order
Photo Part No Description Price (each) Stock
LR093016 STEPPER MOTOR - HEATER $171.42 To Order
Photo Part No Description Price (each) Stock
LR093014 STEPPER MOTOR - HEATER $161.46 To Order
Photo Part No Description Price (each) Stock
LR093015 STEPPER MOTOR - HEATER $141.36 To Order
Photo Part No Description Price (each) Stock
LR146124 STEPPER MOTOR - HEATER $132.87 To Order
View All

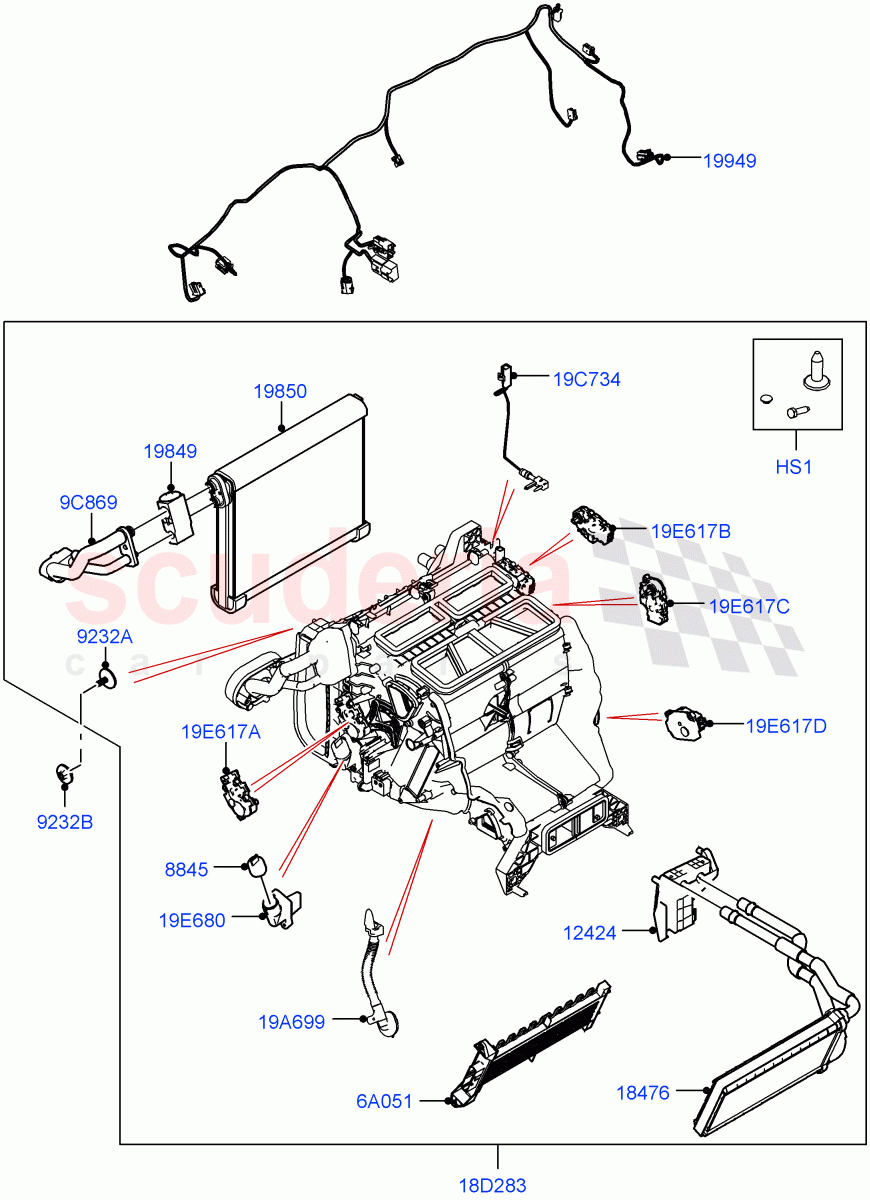

Heater/Air Cond.Internal Components (Heater Main Unit) (With Front Comfort Air Con (IHKA)) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR143177
BOLT
Kit, Mounting Heater To Blower / From: MA000001 		$28.14 1
6A051 LR093035
PTC HEATER
Less Electric Engine Battery, With Ptc Heater / From: MA000001 		$187.21 1
9C869 LR143147
TUBE- A/C EVAPORATOR INLET & OUTLET
Electric Engine Battery-PHEV / From: MA000001 		$161.49 1
9C869 LR143148
TUBE- A/C EVAPORATOR INLET & OUTLET
Less Electric Engine Battery / From: MA000001 		$182.77 1
18D283 LR143136
HEATER & EVAPORATOR UNIT
Electric Engine Battery-PHEV, LHD / From: MA000001 		$1,316.10 1
18D283 LR143138
HEATER & EVAPORATOR UNIT
Electric Engine Battery-PHEV, RHD / From: MA000001 		$1,506.52 1
18D283 LR143143
HEATER & EVAPORATOR UNIT
Electric Engine Battery-MHEV, LHD, Less Heater / From: MA000001 		$1,408.81 1
18D283 LR143144
HEATER & EVAPORATOR UNIT
LHD, Less Electric Engine Battery, With Ptc Heater / From: MA000001 		$1,056.32 1
18D283 LR143145
HEATER & EVAPORATOR UNIT
Electric Engine Battery-MHEV, Fuel Heater W/Pk Heat With Remote, RHD / From: MA000001 		$1,388.48 1
18D283 LR143146
HEATER & EVAPORATOR UNIT
Electric Engine Battery-MHEV, RHD, With Ptc Heater / From: MA000001 		$1,476.98 1
19A699 LR110381
TUBE - WATER DRAIN
RH/LH / From: MA000001 		$54.49 2
19C734 LR036374
SENSOR - HEATER TEMPERATURE CONTROL
From: MA000001 		$65.04 1
19E617A LR093016
STEPPER MOTOR - HEATER
LH, Air Mix Air Door Control, With Fixing Parts / From: MA000001 		$171.42 1
19E617B LR093014
STEPPER MOTOR - HEATER
RH, Defrost Air Door Control, With Fixing Parts / From: MA000001 		$161.46 1
19E617C LR093015
STEPPER MOTOR - HEATER
RH, Air Mix Air Door Control, With Fixing Parts / From: MA000001 		$141.36 1
19E617D LR146124
STEPPER MOTOR - HEATER
RH, Air Mix Air Door Control, With Fixing Parts / From: MA000001 		$132.87 1
19E680 LR093050
TUBE - COOL BOX
LHD / From: MA000001 		$11.56 1
19E680 LR093071
TUBE - COOL BOX
RHD / From: MA000001 		$11.56 1
8845 LR143156
CAP
From: MA000001 		$3.76 1
9232A LR093062
NUT - SPECIAL
Inner And Outer, Threaded / From: MA000001 		$3.81 1
9232B LR093063
NUT - SPECIAL
Inner, Threaded / From: MA000001 		$2.65 1
12424 LR093074
BRACKET - SUPPORT
RHD / From: MA000001 		$18.73 1
12424 LR093073
BRACKET - SUPPORT
LHD / From: MA000001 		$18.46 1
18476 LR093042
CORE - HEATER
RHD / From: MA000001 		$154.16 1
18476 LR093070
CORE - HEATER
LHD / From: MA000001 		$161.85 1
19849 LR143151
VALVE - EVAPORATOR EXPANSION
Electric Engine Battery-PHEV / From: MA000001 		$292.19 1
19849 LR093044
VALVE - EVAPORATOR EXPANSION
Electric Engine Battery-MHEV / From: MA000001 		$200.42 1
19850 LR093043
EVAPORATOR
From: MA000001 		$534.53 1
19949 LR093038
WIRE - AIR CONDITIONER
LHD, Less Electric Engine Battery / From: MA000001 		$64.91 1
19949 LR093069
WIRE - AIR CONDITIONER
Electric Engine Battery-MHEV, RHD / From: MA000001 		$74.68 1
19949 LR143130
WIRE - AIR CONDITIONER
Electric Engine Battery-PHEV, LHD / From: MA000001 		$134.43 1
19949 LR143131
WIRE - AIR CONDITIONER
Electric Engine Battery-PHEV, RHD / From: MA000001 		$144.95 1
