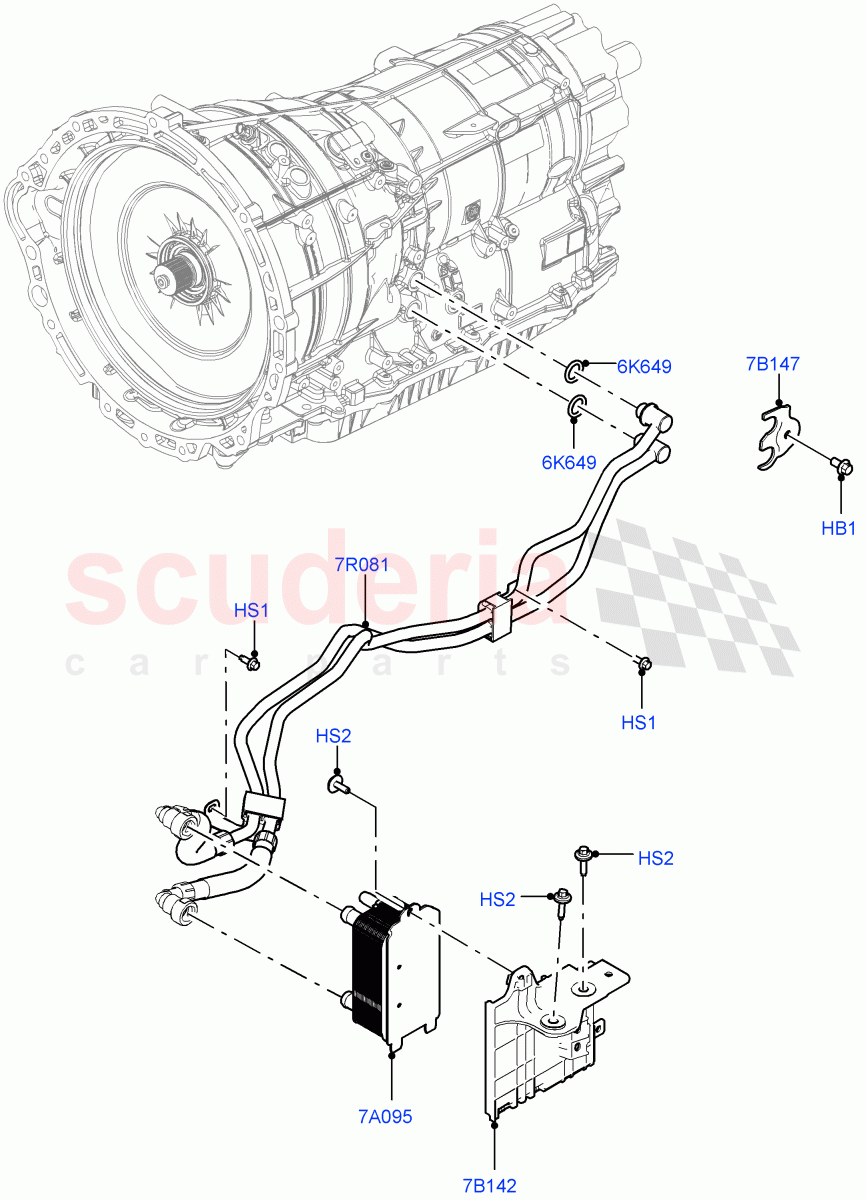

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR049457	O-RING	$3.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR036354	OIL COOLER	$247.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141635	BRACKET - OIL COOLER	$65.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092826	BRACKET - OIL HOSES	$13.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141632	TUBE - OIL COOLER	$147.87	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM, To Transmission / From: MA000001 IN STOCK	$0.72	1
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM, Tube - Transmission Oil Cooler / From: MA000001	$0.64	2
HS2	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Bracket To BIW, Hexagonal Head, M6 X 20MM / From: MA000001 IN STOCK	$0.97	3
6K649	LR049457	O-RING IN STOCK	LR049457 O-RING IN STOCK	$3.30	2
7A095	LR036354	OIL COOLER	LR036354 OIL COOLER Gearbox / From: MA000001	$247.68	1
7B142	LR141635	BRACKET - OIL COOLER	LR141635 BRACKET - OIL COOLER To Oil Cooler / From: MA000001	$65.60	1
7B147	LR092826	BRACKET - OIL HOSES	LR092826 BRACKET - OIL HOSES Tube - Transmission Oil Cooler / From: MA000001	$13.00	1
7R081	LR141632	TUBE - OIL COOLER	LR141632 TUBE - OIL COOLER From: MA000001	$147.87	1
