Name: Fuel Lines (Front) (3.0 V6 D Gen2 Twin Turbo)
Rating: 4.7 (1 reviews)

View All

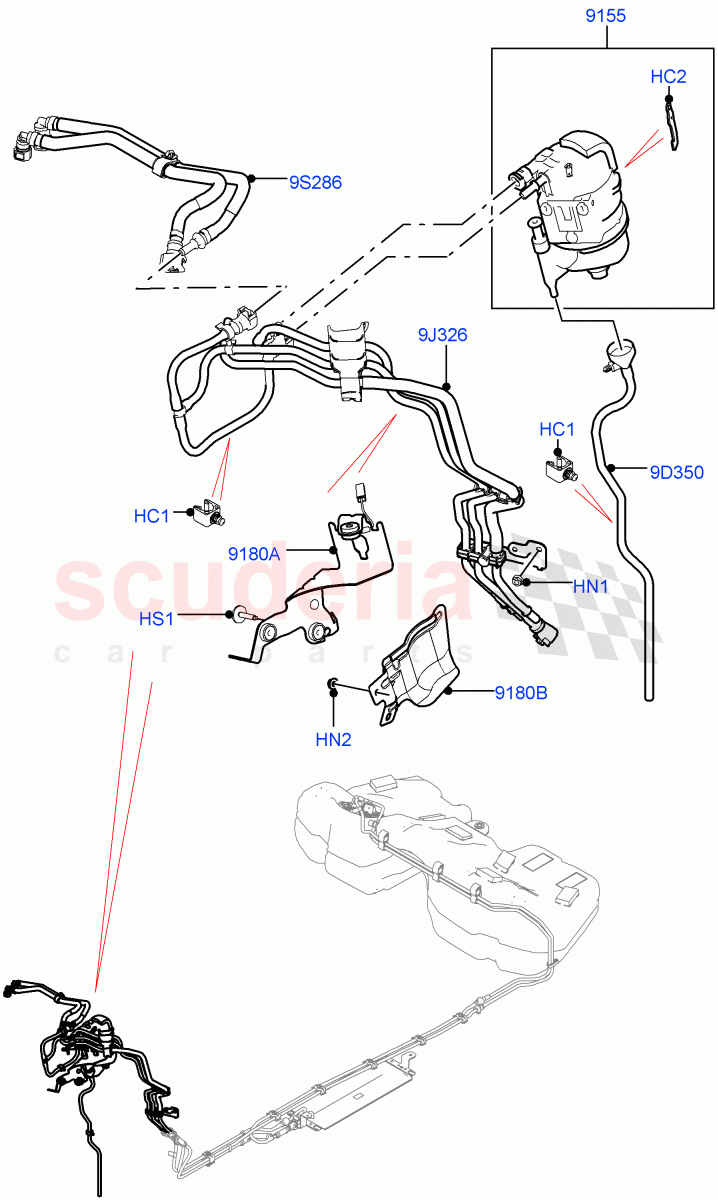

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161603	CLIP - SPECIAL	$8.88	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093058	BRACKET - FUEL FILTER	$30.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144507	BRACKET - FUEL FILTER	$239.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093108	TUBE - FUEL	$76.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093083	PIPE - FUEL PUMP FEED	$512.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093107	TUBE - FUEL	$167.30	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE	$3.52	2
HC2	LR161603	CLIP - SPECIAL	LR161603 CLIP - SPECIAL For Fuel Filter	$8.88	1
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 IN STOCK	$1.03	1
HN2	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.47	2
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	$4.21	3
9D350	LR093108	TUBE - FUEL	LR093108 TUBE - FUEL Drain	$76.69	1
9J326	LR093083	PIPE - FUEL PUMP FEED	LR093083 PIPE - FUEL PUMP FEED	$512.70	1
9S286	LR093107	TUBE - FUEL	LR093107 TUBE - FUEL Double, Front	$167.30	1
9155	LR106429	FILTER - FUEL - PRIMARY	LR106429 FILTER - FUEL - PRIMARY Less Bracket, Primary / To: KA786260	$103.35	1
9155	LR116437	FILTER - FUEL - PRIMARY	LR116437 FILTER - FUEL - PRIMARY Less Bracket, Primary / From: KA786261	$101.39	1
9180A	LR093058	BRACKET - FUEL FILTER	LR093058 BRACKET - FUEL FILTER	$30.67	1
9180B	LR144507	BRACKET - FUEL FILTER	LR144507 BRACKET - FUEL FILTER	$239.99	1

Fuel Lines (Front) (3.0 V6 D Gen2 Twin Turbo)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]
