Name: Oil Pan/Oil Level Indicator (3.0 V6 Diesel)
Rating: 4.0 (1 reviews)

View All

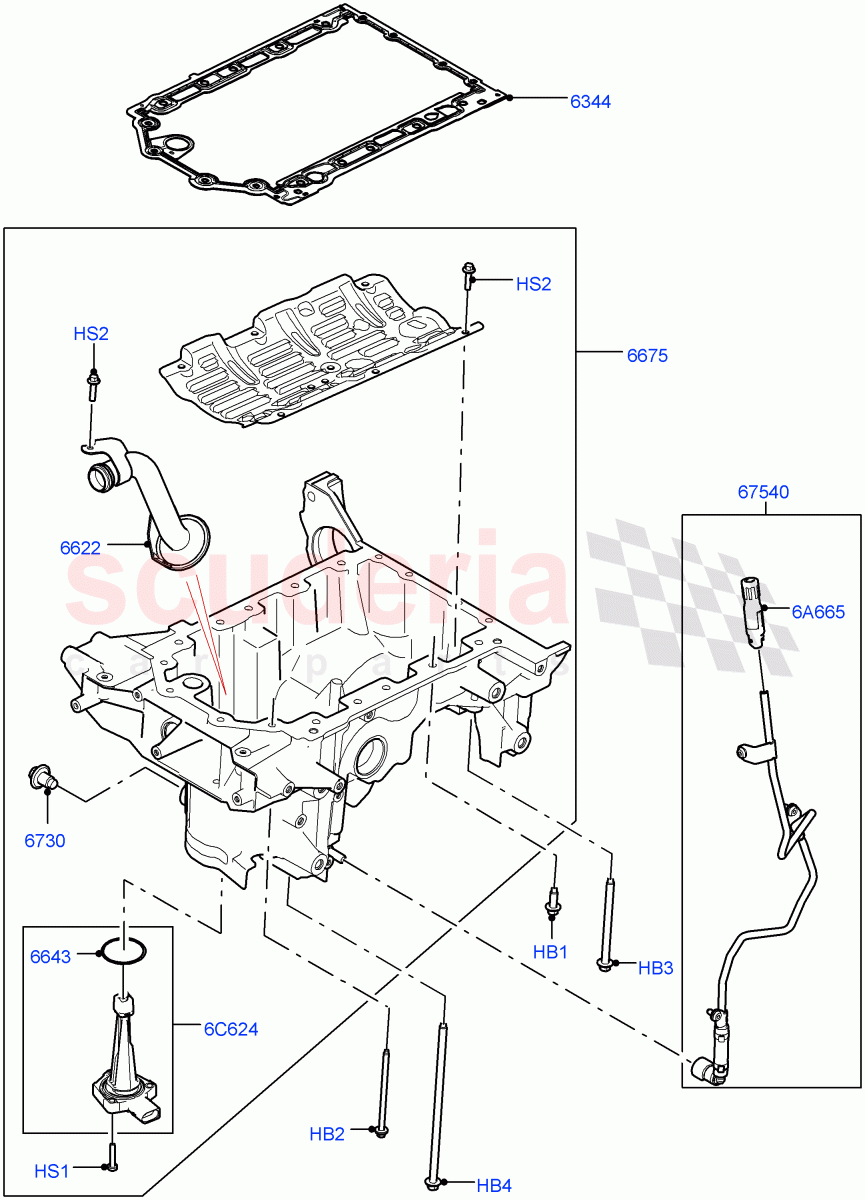

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1305834	BOLT	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	$2.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR134705	BOLT	$4.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134706	BOLT	$5.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092107	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005994	GASKET - OIL PAN	$39.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092888	TUBE - OIL PUMP INLET	$126.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006867	O-RING	$16.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092610	PAN - ENGINE OIL	$689.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	$8.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092688	TUBE - OIL EXTRACTION	$126.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013740	CAP - OIL LEVEL TUBE	$76.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012640	SENSOR - OIL LEVEL	$89.12	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1305834	BOLT	1305834 BOLT M8 X 20MM, Oil Pan	$2.28	8
HB2	1225745	BOLT AND WASHER - HEX.HEAD IN STOCK	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM, Oil Pan IN STOCK	$2.96	8
HB3	LR134705	BOLT	LR134705 BOLT M8 x 105MM	$4.00	1
HB4	LR134706	BOLT	LR134706 BOLT M8 x 200mm	$5.83	1
HS1	LR092107	SCREW	LR092107 SCREW M6 x 30MM, Sensor - Oil Level	$1.31	3
HS2	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM	$1.35	9
6A665	LR013740	CAP - OIL LEVEL TUBE	LR013740 CAP - OIL LEVEL TUBE Tube - Oil Extraction	$76.67	1
6C624	LR012640	SENSOR - OIL LEVEL	LR012640 SENSOR - OIL LEVEL	$89.12	1
6344	LR005994	GASKET - OIL PAN IN STOCK	LR005994 GASKET - OIL PAN Oil Pan IN STOCK	$39.15	1
6622	LR092888	TUBE - OIL PUMP INLET	LR092888 TUBE - OIL PUMP INLET	$126.64	1
6643	LR006867	O-RING	LR006867 O-RING Sensor - Oil Level	$16.34	1
6675	LR092610	PAN - ENGINE OIL	LR092610 PAN - ENGINE OIL	$689.72	1
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN Head Size: 13mm, Includes Seal, M14 X 1.5, With Gasket	$8.35	1
67540	LR092688	TUBE - OIL EXTRACTION	LR092688 TUBE - OIL EXTRACTION	$126.41	1

Oil Pan/Oil Level Indicator (3.0 V6 Diesel)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]
