Name: Exhaust Fluid Injection System (Injector and Control Unit) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank)
Rating: 4.6 (1 reviews)

View All

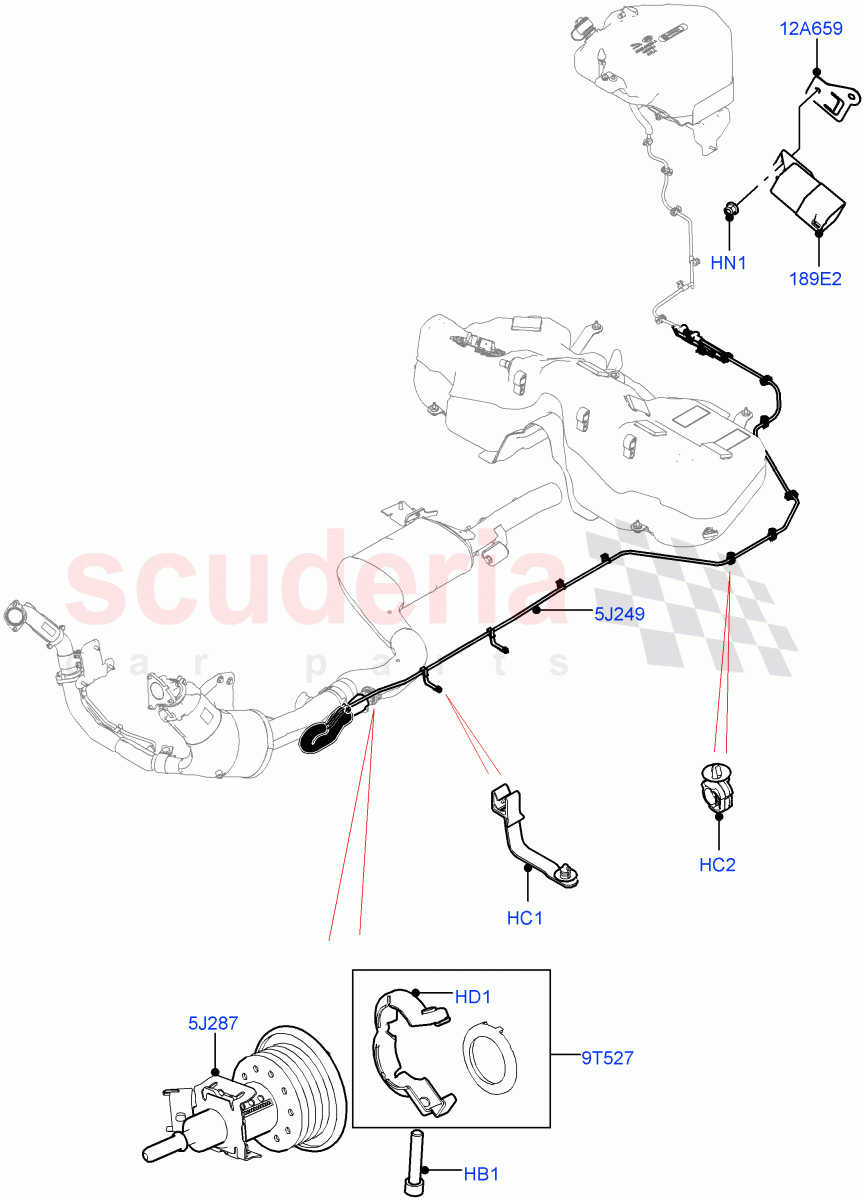

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR067041	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091649	CLIP - PIPE	$5.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091651	CLIP - PIPE	$2.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067042	CLAMP - TUBE	$3.69	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071241	CONTROL UNIT - AUXILIARY HEATER	$139.85	To Order
	LR117592	CONTROL UNIT - AUXILIARY HEATER	$152.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091678	TUBE - DIESEL EXHAUST FLUID FEED	$298.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166795	INJECTOR - DIESEL EXHAUST FLUID	$271.32	To Order
	LR166795	INJECTOR - DIESEL EXHAUST FLUID	$271.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139412	BRACKET - MODULE	$19.93	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR067041	SCREW	LR067041 SCREW Clamp, M5 x 25	$1.24	1
HC1	LR091649	CLIP - PIPE	LR091649 CLIP - PIPE	$5.52	2
HC2	LR091651	CLIP - PIPE	LR091651 CLIP - PIPE	$2.64	9
HD1	LR067042	CLAMP - TUBE	LR067042 CLAMP - TUBE	$3.69	1
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 IN STOCK	$0.60	1
5J249	LR091678	TUBE - DIESEL EXHAUST FLUID FEED	LR091678 TUBE - DIESEL EXHAUST FLUID FEED To Diesel Exhaust Fluid Injector	$298.29	1
5J287	LR166795	INJECTOR - DIESEL EXHAUST FLUID	LR166795 INJECTOR - DIESEL EXHAUST FLUID To: LA247294	$271.32	1
5J287	LR166795	INJECTOR - DIESEL EXHAUST FLUID	LR166795 INJECTOR - DIESEL EXHAUST FLUID From: LA247295	$271.32	1
9T527	LR138592	kIT - INJECTOR REFIT	LR138592 kIT - INJECTOR REFIT Diesel Exhaust Fluid / To: LA247305	$23.34	1
9T527	LR138592	kIT - INJECTOR REFIT	LR138592 kIT - INJECTOR REFIT Diesel Exhaust Fluid / From: LA247306	$23.34	1
12A659	LR139412	BRACKET - MODULE	LR139412 BRACKET - MODULE	$19.93	1
189E2	LR071241	CONTROL UNIT - AUXILIARY HEATER	LR071241 CONTROL UNIT - AUXILIARY HEATER Diesel Exhaust Fluid / To: JA770446	$139.85	1
189E2	LR117592	CONTROL UNIT - AUXILIARY HEATER	LR117592 CONTROL UNIT - AUXILIARY HEATER Diesel Exhaust Fluid / From: JA770447	$152.35	1

Exhaust Fluid Injection System (Injector And Control Unit) (3.0 V6 Diesel, With Diesel Exh Fluid...

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]
