Intercooler/Air Ducts And Hoses (3.0 V6 D Gen2 Twin Turbo)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (3.0 V6 D Gen2 Twin Turbo)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR016628 CLAMP - TUBE $2.77 To Order
Photo Part No Description Price (each) Stock
LR018508 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
4467593 BOLT - HEX.HEAD $0.71 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR092414 TUBE - OUTLET $219.57 To Order
Photo Part No Description Price (each) Stock
LR084278 PIPE - TURBO BOOST $199.40 To Order
Photo Part No Description Price (each) Stock
LR092409 TUBE - OUTLET $626.14 To Order
Photo Part No Description Price (each) Stock
LR092403 HOSE - COMPRESSED AIR $162.32 To Order
Photo Part No Description Price (each) Stock
LR092418 HOSE - COMPRESSED AIR $247.83 To Order
Photo Part No Description Price (each) Stock
LR091886 SENSOR - AIR CHARGE $130.99 To Order
Photo Part No Description Price (each) Stock
LR018294 SENSOR - AIR CHARGE TEMPERATURE $110.09 To Order
Photo Part No Description Price (each) Stock
LR092413 TUBE - OUTLET $171.19 To Order
Photo Part No Description Price (each) Stock
LR092375 HOSE - COMPRESSED AIR $169.17 To Order
View All

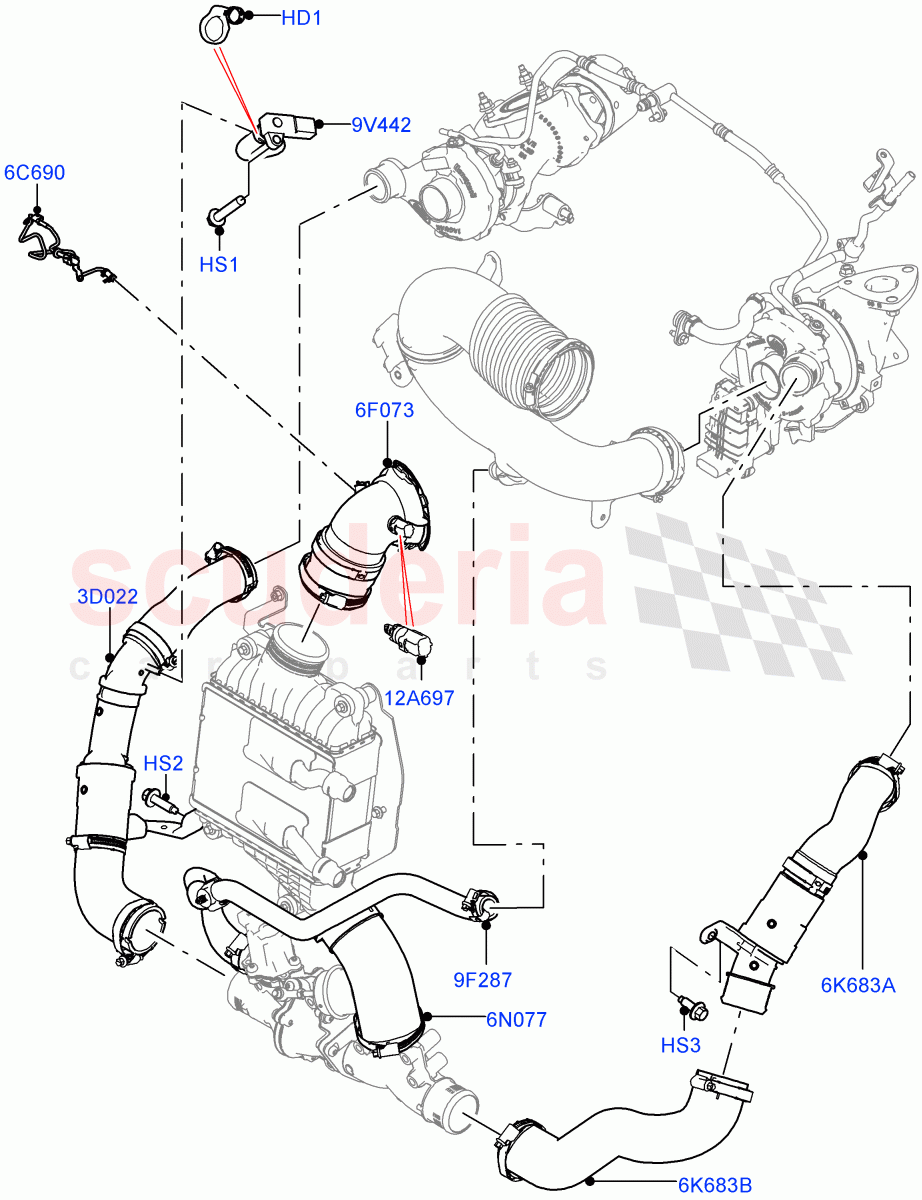

Intercooler/Air Ducts And Hoses (3.0 V6 D Gen2 Twin Turbo) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HD1 LR016628
CLAMP - TUBE
Hose Clamp 		$2.77 1
HS1 LR018508
SCREW
M5 x 20MM, Torx 		$0.96 1
HS2 4467593
BOLT - HEX.HEAD
Hexagonal Head, M6 X 20MM 		$0.71 1
HS3 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.63 1
3D022 LR092414
TUBE - OUTLET
RH, From Turbocharger To Valve 		$219.57 1
6C690 LR084278
PIPE - TURBO BOOST 		$199.40 1
6F073 LR092409
TUBE - OUTLET
Intercooler To Throttle Body 		$626.14 1
6K683A LR092413
TUBE - OUTLET
LH Side - Primary, Turbocharger Outlet 		$171.19 1
6K683B LR092375
HOSE - COMPRESSED AIR
LH, Compressed Air Recirculation And Shut Off Valve, Inlet 		$169.17 1
6N077 LR092403
HOSE - COMPRESSED AIR
From Valve To Intercooler 		$162.32 1
9F287 LR092418
HOSE - COMPRESSED AIR
Compressed Air Recirculation, From Valve To Air Inlet Hose 		$247.83 1
9V442 LR091886
SENSOR - AIR CHARGE
Secondary Compressor Outlet Pressure Sensor With Tube 		$130.99 1
12A697 LR018294
SENSOR - AIR CHARGE TEMPERATURE 		$110.09 1
