Name: Front Exhaust System (2.0L I4 Mid DOHC AJ200 Petrol, Beijing 6 Petrol Emission, 2.0L I4 High DOHC AJ200 Petrol, EU6C Emission, 2.0L AJ200P Hi PHEV, EU6D - Final (Petrol) Emission)
Rating: 4.4 (1 reviews)

Front Exhaust System (2.0L I4 Mid DOHC AJ200 Petrol, Beijing 6 Petrol Emission, 2.0L I4 High DOHC AJ200 Petrol, EU6C Emission, 2.0L AJ200P Hi PHEV, EU6D - Final (Petrol) Emission) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Front Exhaust System (2.0L I4 Mid DOHC AJ200 Petrol, Beijing 6 Petrol Emission, 2.0L I4 High DOHC...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105413	BRACKET - EXHAUST PIPE MOUNTING	$54.65	To Order
	LR106825	BRACKET - EXHAUST PIPE MOUNTING	$103.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104726	CATALYST AND PARTICLE FILTER	$4,851.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$20.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092889	HEAT SHIELD - EXHAUST	$191.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092891	BELLY BAND BRACKET - EXHAUST	$56.53	To Order
	LR118877	BELLY BAND BRACKET - EXHAUST	$51.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105414	CLAMP - EXHAUST	$48.05	To Order

View All

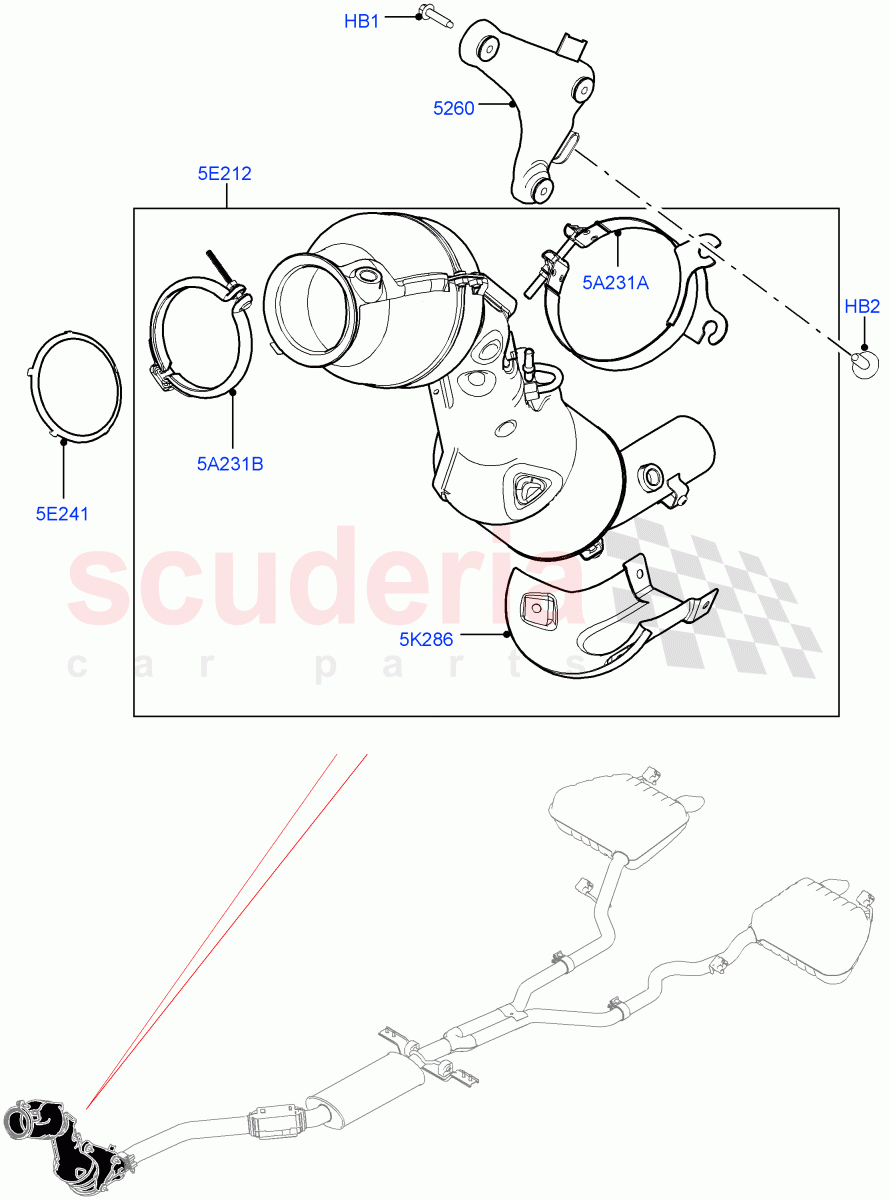

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM, To Transmission IN STOCK	$2.29	3
HB2	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Belly Band, Hexagonal Head, M8 X 21MM	$1.18	2
5A231A	LR092891	BELLY BAND BRACKET - EXHAUST	LR092891 BELLY BAND BRACKET - EXHAUST Belly Band / To: JA732112	$56.53	1
5A231A	LR118877	BELLY BAND BRACKET - EXHAUST	LR118877 BELLY BAND BRACKET - EXHAUST 155MM, Belly Band / From: JA732113	$51.50	1
5A231B	LR105414	CLAMP - EXHAUST	LR105414 CLAMP - EXHAUST 120MM, Turbocharger Outlet	$48.05	1
5E212	LR104726	CATALYST AND PARTICLE FILTER	LR104726 CATALYST AND PARTICLE FILTER	$4,851.51	1
5E241	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER Turbocharger Outlet	$20.51	1
5K286	LR092889	HEAT SHIELD - EXHAUST	LR092889 HEAT SHIELD - EXHAUST Lower	$191.52	1
5260	LR105413	BRACKET - EXHAUST PIPE MOUNTING	LR105413 BRACKET - EXHAUST PIPE MOUNTING To Transmission / To: JA732112	$54.65	1
5260	LR106825	BRACKET - EXHAUST PIPE MOUNTING	LR106825 BRACKET - EXHAUST PIPE MOUNTING To Transmission / From: JA732113	$103.41	1
