Name: Oil Pan/Oil Level Indicator (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol)
Rating: 5.0 (1 reviews)

View All

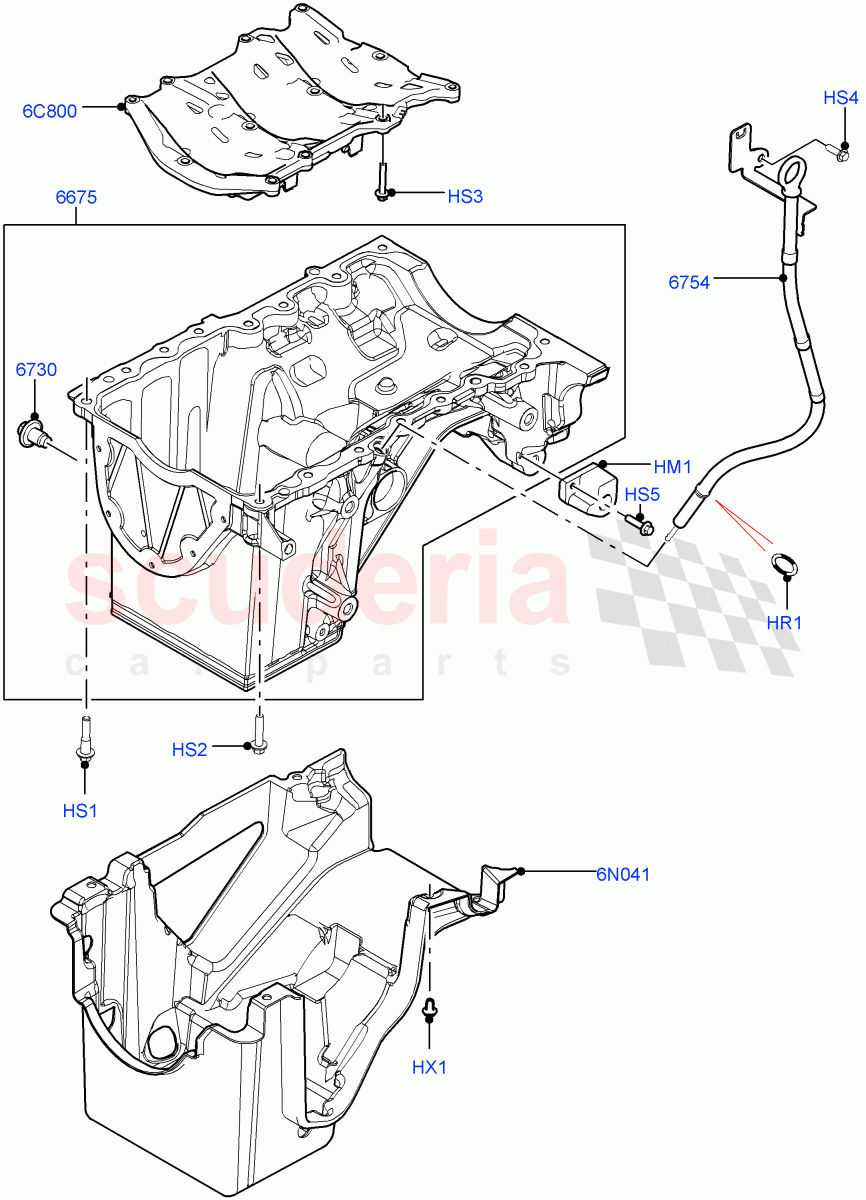

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR101174	SHIM - DIFFERENTIAL DRIVING GR BRG	$22.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$5.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154091	PLUG - OIL DRAIN	$14.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091897	SHIELD - ENGINE PROTECTING	$63.42	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HM1	LR101174	SHIM - DIFFERENTIAL DRIVING GR BRG	LR101174 SHIM - DIFFERENTIAL DRIVING GR BRG Differential Mounting	$22.08	1
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Oil Level Indicator	$5.17	1
HS1	LR073677	SCREW	LR073677 SCREW M8 x 42mm	$3.44	2
HS2	LR073676	SCREW	LR073676 SCREW M8 x 35mm	$2.34	14
HS3	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray	$2.29	12
HS4	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Oil Level Indicator	$2.30	1
HS5	FS106256	SCREW	FS106256 SCREW Differential Mounting, M6 x 25MM	$0.43	1
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5	$3.04	4
6C800	LR085474	TRAY - WINDAGE	LR085474 TRAY - WINDAGE To: LA250813	$446.34	1
6C800	LR130052	TRAY - WINDAGE	LR130052 TRAY - WINDAGE From: LA250814	$375.73	1
6N041	LR091897	SHIELD - ENGINE PROTECTING	LR091897 SHIELD - ENGINE PROTECTING Oil Pan	$63.42	1
6675	LR091570	PAN - ENGINE OIL	LR091570 PAN - ENGINE OIL To: LA283320	$566.53	1
6675	LR140951	PAN - ENGINE OIL	LR140951 PAN - ENGINE OIL From: LA283321 / To: MA296471	$566.53	1
6675	LR154101	PAN - ENGINE OIL	LR154101 PAN - ENGINE OIL From: MA296472	$566.53	1
6730	LR154091	PLUG - OIL DRAIN	LR154091 PLUG - OIL DRAIN	$14.71	1
6754	LR097978	TUBE - OIL LEVEL INDICATOR	LR097978 TUBE - OIL LEVEL INDICATOR To: JA731258	$53.26	1
6754	LR112110	TUBE - OIL LEVEL INDICATOR	LR112110 TUBE - OIL LEVEL INDICATOR From: JA731259	$53.58	1

Oil Pan/Oil Level Indicator (2.0L I4 Mid Dohc Aj200 Petrol, 2.0L I4 High Dohc Aj200 Petrol)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]
