Name: Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, Less Engine Cooling System) ((V) FROMMA000001)
Rating: 4.6 (1 reviews)

Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, Less Engine Cooling System) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, Less Engine Cooling System) ((V)...

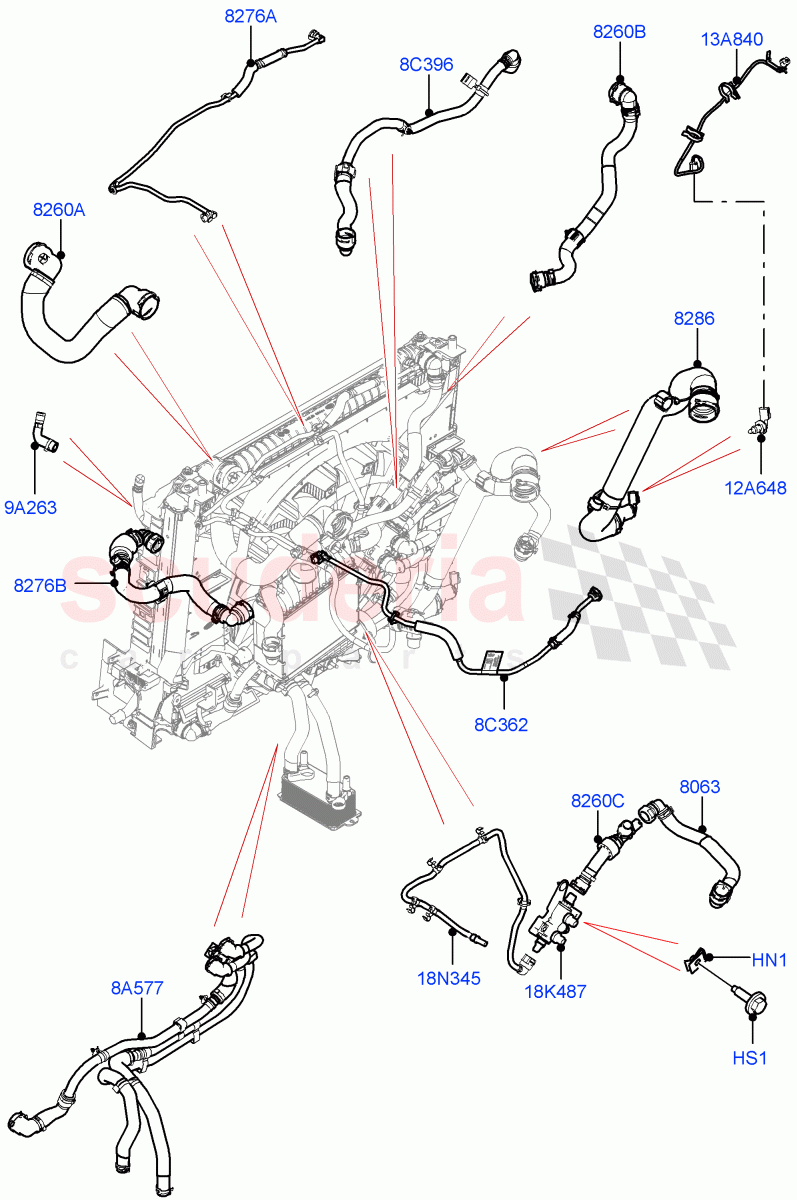

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR140816	HOSE - WATER	$48.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141599	HOSE - RADIATOR	$128.09	To Order
	LR154596	HOSE - RADIATOR	$147.38	To Order
	LR157878	HOSE - RADIATOR	$118.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091640	HOSE - RADIATOR	$57.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141434	HOSE - WATER	$83.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091529	HOSE - COOLING SYSTEM	$53.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091647	HOSE - RADIATOR TO ENG. VENT ELBOW	$57.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091817	HOSE - WATER	$116.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093990	HOSE - WATER	$143.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR175176	HOSE	$102.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093725	HOSE - WATER	$56.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140973	HOSE - RADIATOR VENTILATION	$39.62	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$59.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095331	WIRE - COOLANT TEMPERATURE SENSOR	$31.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116647	VALVE - COOLANT FLOW CONTROL	$135.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093723	HOSE - HEATER WATER	$53.28	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring / From: MA000001	$1.24	1
HS1	RYG501590	SCREW IN STOCK	RYG501590 SCREW Hexagonal Head, M6 X 20MM / From: MA000001 IN STOCK	$1.00	1
8A577	LR093990	HOSE - WATER IN STOCK	LR093990 HOSE - WATER LH, Cooler / From: MA000001 IN STOCK	$143.19	1
8C362	LR175176	HOSE	LR175176 HOSE LH, Cooler / From: MA000001	$102.69	1
8C396	LR093725	HOSE - WATER	LR093725 HOSE - WATER Bottom, Expansion Tank / From: MA000001	$56.76	1
9A263	LR140973	HOSE - RADIATOR VENTILATION	LR140973 HOSE - RADIATOR VENTILATION With Bleed Hose / From: MA000001	$39.62	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: MA000001	$59.82	1
13A840	LR095331	WIRE - COOLANT TEMPERATURE SENSOR	LR095331 WIRE - COOLANT TEMPERATURE SENSOR To Engine Coolant Temperature Sensor / From: MA000001	$31.22	1
18K487	LR116647	VALVE - COOLANT FLOW CONTROL	LR116647 VALVE - COOLANT FLOW CONTROL From: MA000001	$135.49	1
18N345	LR093723	HOSE - HEATER WATER	LR093723 HOSE - HEATER WATER To Valve / From: MA000001	$53.28	1
8063	LR140816	HOSE - WATER	LR140816 HOSE - WATER From: MA000001	$48.76	1
8260A	LR091640	HOSE - RADIATOR	LR091640 HOSE - RADIATOR Top Radiator Hose / From: MA000001	$57.45	1
8260B	LR141434	HOSE - WATER	LR141434 HOSE - WATER Blanking / From: MA000001	$83.21	1
8260C	LR091529	HOSE - COOLING SYSTEM	LR091529 HOSE - COOLING SYSTEM Oil Cooler Hose / From: MA000001	$53.96	1
8276A	LR091647	HOSE - RADIATOR TO ENG. VENT ELBOW	LR091647 HOSE - RADIATOR TO ENG. VENT ELBOW Expansion Tank, Front / From: MA000001	$57.82	1
8276B	LR091817	HOSE - WATER	LR091817 HOSE - WATER Intercooler Outlet / From: MA000001	$116.95	1
8286	LR141599	HOSE - RADIATOR	LR141599 HOSE - RADIATOR Bottom / From: MA000001 / To: NA330226	$128.09	1
8286	LR154596	HOSE - RADIATOR	LR154596 HOSE - RADIATOR Bottom / From: NA330227 / To: NA330406	$147.38	1
8286	LR157878	HOSE - RADIATOR	LR157878 HOSE - RADIATOR Bottom / From: NA330407	$118.23	1

Cooling System Pipes And Hoses (2.0L I4 Mid Dohc Aj200 Petrol, Less Engine Cooling System) ((V)...

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (2.0L I4 Mid DOHC AJ200 Petrol, Less Engine Cooling System) ((V)...

Add to Shopping Cart
