Inlet Manifold (2.0L Aj200P Hi Phev) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Inlet Manifold (2.0L AJ200P Hi PHEV) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR095783 O-RING $4.67 IN STOCK
Photo Part No Description Price (each) Stock
RYP500810 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC $3.03 To Order
Photo Part No Description Price (each) Stock
LR115125 RETAINER - RIVET $1.02 To Order
Photo Part No Description Price (each) Stock
LR074074 OIL SPILL GAITER $13.39 To Order
Photo Part No Description Price (each) Stock
LR106371 INLET MANIFOLD WITH INTERCOOLER $767.39 To Order
Photo Part No Description Price (each) Stock
LR091766 GASKET - INTAKE MANIFOLD $12.30 IN STOCK
Photo Part No Description Price (each) Stock
LR091892 COVER - ENGINE TOP $306.14 To Order
Photo Part No Description Price (each) Stock
LR091899 BRACKET - ENGINE COVER $24.03 To Order
Photo Part No Description Price (each) Stock
LR074073 GASKET - THROTTLE $15.97 To Order
Photo Part No Description Price (each) Stock
LR091865 SENSOR - AIR TEMPERATURE & PRESSURE $139.71 To Order
Photo Part No Description Price (each) Stock
LR038978 STUD - BALL $3.80 To Order
Photo Part No Description Price (each) Stock
LR082528 STUD - BALL $8.31 IN STOCK
Photo Part No Description Price (each) Stock
LR091895 STUD - BALL $4.47 To Order
Photo Part No Description Price (each) Stock
LR091773 BOLT - SPECIAL $6.73 To Order
Photo Part No Description Price (each) Stock
LR074085 BOLT - SPECIAL $5.04 To Order
Photo Part No Description Price (each) Stock
LR141278 INSULATOR - CYLINDER HEAD $30.95 To Order
Photo Part No Description Price (each) Stock
LR141496 INSULATOR - CYLINDER HEAD $31.46 To Order
View All

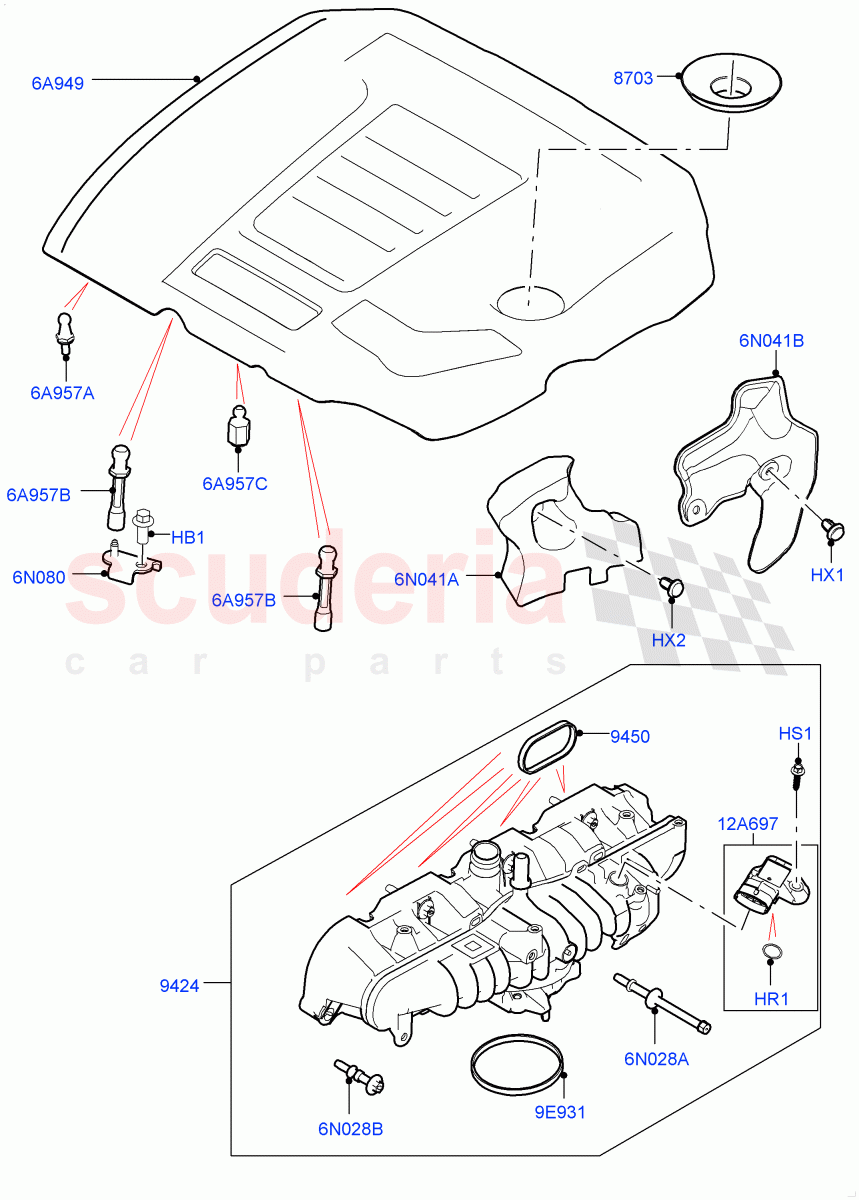

Inlet Manifold (2.0L AJ200P Hi PHEV) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM, Stud / From: MA000001
IN STOCK 		$2.29 1
HR1 LR095783
O-RING
7.5MM, MAP Sensor / From: MA000001
IN STOCK 		$4.67 1
HS1 RYP500810
SCREW
Hexagonal Head, M5 x 20MM, Sensor / From: MA000001 		$0.62 1
HX1 LR071767
RIVET - PLASTIC
7.8-9.1 x 4.5-10.5, Insulator / From: MA000001 		$3.03 2
HX2 LR115125
RETAINER - RIVET
Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: MA000001 		$1.02 1
6A949 LR091892
COVER - ENGINE TOP
Engine / From: MA000001 		$306.14 1
6A957A LR038978
STUD - BALL
Engine Cover / From: MA000001 		$3.80 1
6A957B LR082528
STUD - BALL
Ball Stud, Engine Cover / From: MA000001
IN STOCK 		$8.31 2
6A957C LR091895
STUD - BALL
Engine Cover / From: MA000001 		$4.47 1
6N028A LR091773
BOLT - SPECIAL
M6 x 97MM, Manifold To Cylinder Head, Special Bolt / From: MA000001 		$6.73 1
6N028B LR074085
BOLT - SPECIAL
M6 x 42MM, Manifold To Cylinder Head / From: MA000001 		$5.04 6
6N041A LR141278
INSULATOR - CYLINDER HEAD
Front / From: MA000001 		$30.95 1
6N041B LR141496
INSULATOR - CYLINDER HEAD
Rear / From: MA000001 		$31.46 1
6N080 LR091899
BRACKET - ENGINE COVER
Stud / From: MA000001 		$24.03 1
9E931 LR074073
GASKET - THROTTLE
Throttle Body To Intake / From: MA000001 		$15.97 1
12A697 LR091865
SENSOR - AIR TEMPERATURE & PRESSURE
Pressure / From: MA000001 		$139.71 1
8703 LR074074
OIL SPILL GAITER
Oil Spill / From: MA000001 		$13.39 1
9424 LR106371
INLET MANIFOLD WITH INTERCOOLER
From: MA000001 		$767.39 1
9450 LR091766
GASKET - INTAKE MANIFOLD
Inlet Manifold / From: MA000001
IN STOCK 		$12.30 4
